Used - Nema 17 Bipolar 1.8deg 59Ncm(83.55oz.in) 0.64A 42x42x60mm 4 Wires

Used -45 %

Used - Nema 17 Bipolar 1.8deg 59Ncm(83.55oz.in) 0.64A 42x42x60mm 4 Wires

0 reviews - Write a review

C$16.68

C$9.18

In Stock: 10000
Model: 17HS24-0644D-USED
Gross Weight: 0.56kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 9

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

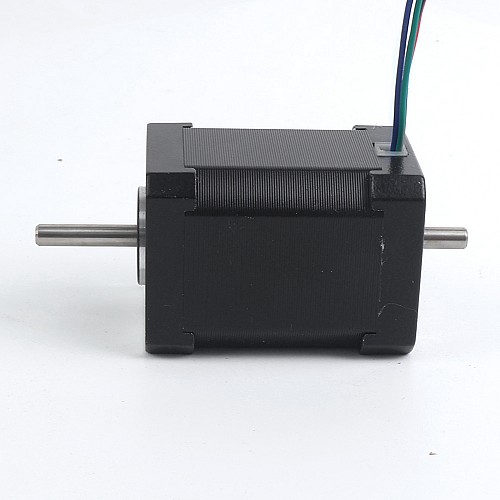

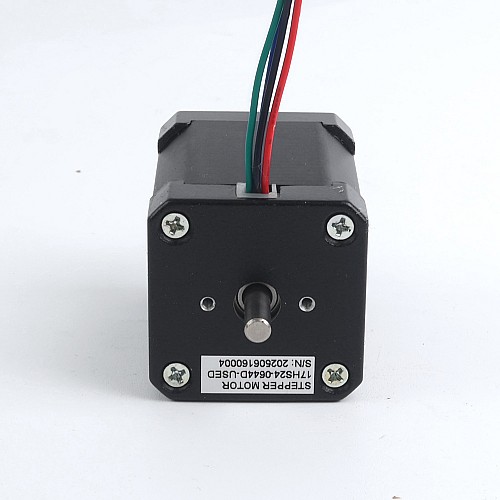

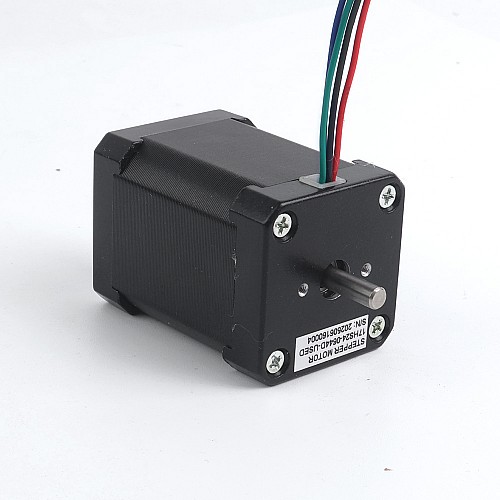

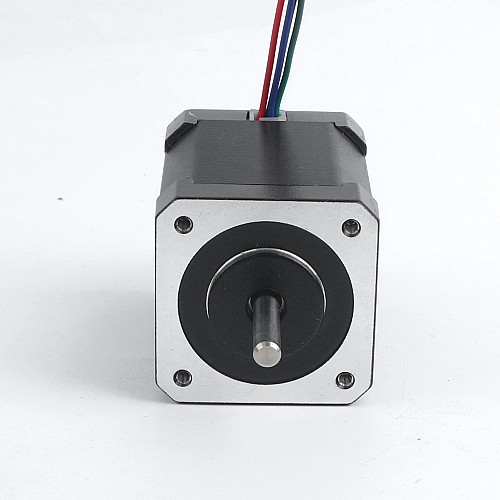

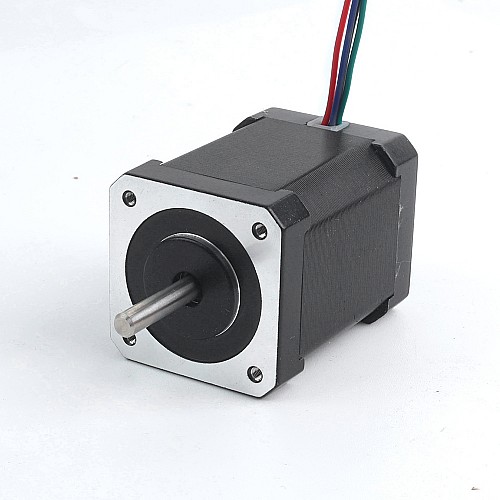

This bipolar Nema 17 stepper motor features a compact size of 42×42×60mm, a step angle of 1.8°, and a 4-wire configuration, with each phase drawing 0.64A. It delivers a robust holding torque of 59Ncm(83.55oz.in), making it ideal for precision motion control applications such as 3D printers, CNC machines, robotic arms, and automated positioning systems where accurate movement and reliable torque are essential.

Electrical Specification

Manufacturer Part Number: 17HS24-0644D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 59Ncm(83.55oz.in)
Rated Current/phase: 0.64A
Phase Resistance: 15ohms
Inductance: 32mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product status note: this motor looks a bit old.

Product Type
Product Condition	Used
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	59
Holding Torque(oz.in)	83.55
Inductance(mH)	32
Phase Resistance(ohms)	15
Rated Current(A)	0.64
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	60
Cable Length(mm)	500
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
