Used - Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x40mm 4 Wires w/ 1m Pin Connector

Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA

Used -59 %

Used - Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x40mm 4 Wires w/ 1m Pin Connector

0 reviews - Write a review

C$13.51

C$5.48

In Stock: 10000
Model: 17HS15-1504S-X1-USED
Gross Weight: 0.38kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

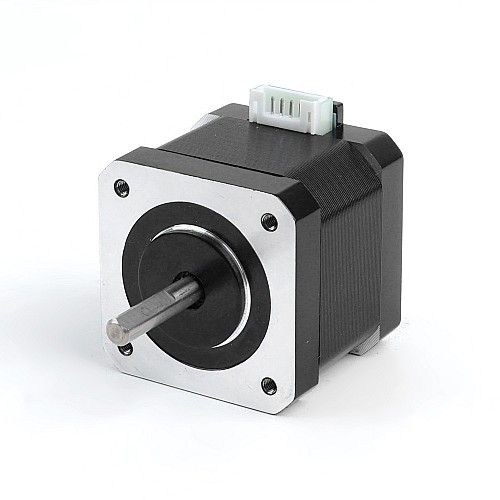

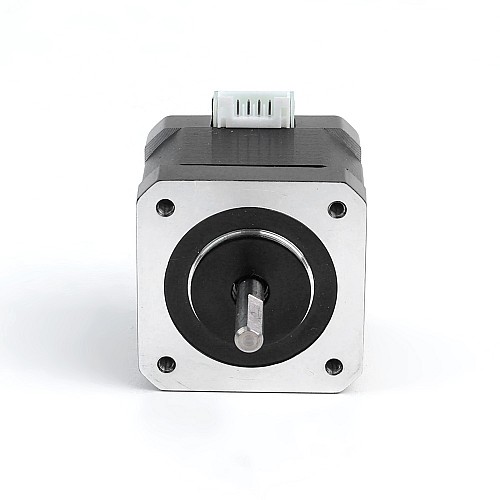

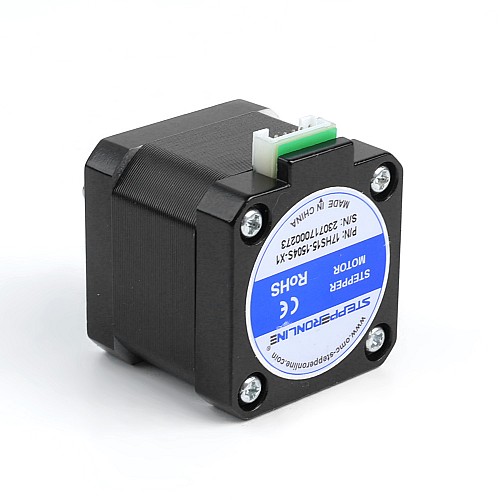

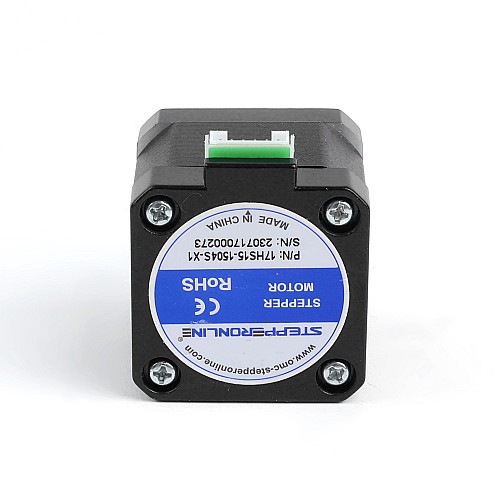

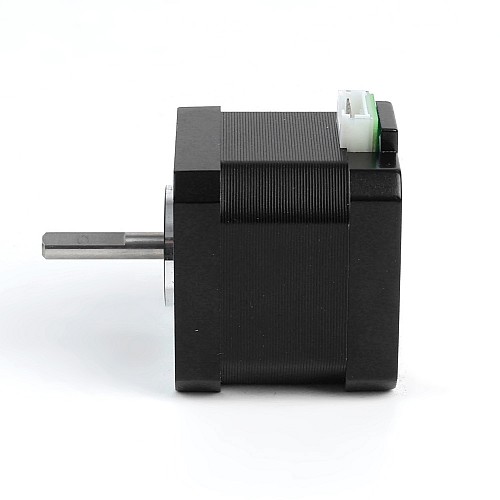

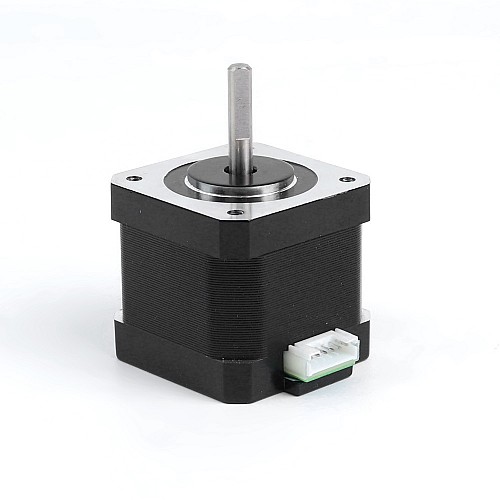

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws current 1.5A, with holding torque 45Ncm(63.74oz.in).

Electrical Specification

Manufacturer Part Number: 17HS15-1504S-X1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.3ohms
Inductance: 4.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm

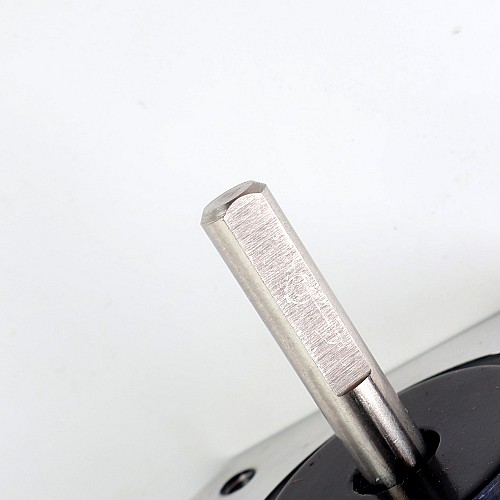

Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 280g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product status note: the motor has scratches of varying degrees.

Product Type
Product Condition	Used
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Inductance(mH)	4.4
Phase Resistance(ohms)	2.3
Rated Current(A)	1.5
Step Angle(deg.)	1.8
Brake Specification
Brake Power(W)	Yes
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	280
