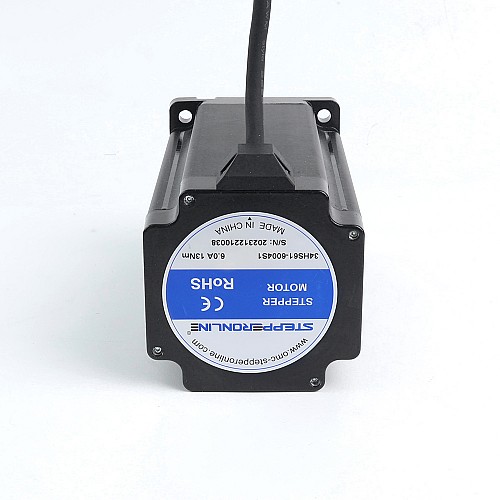

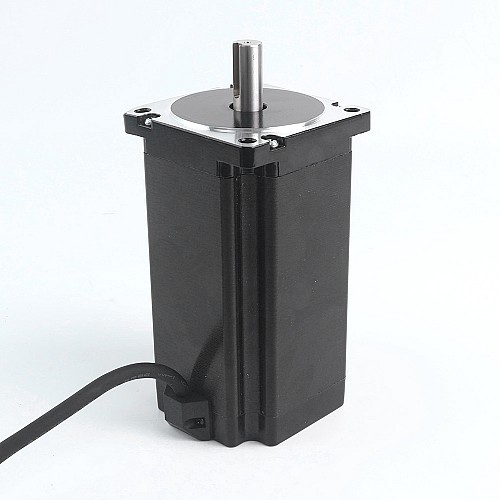

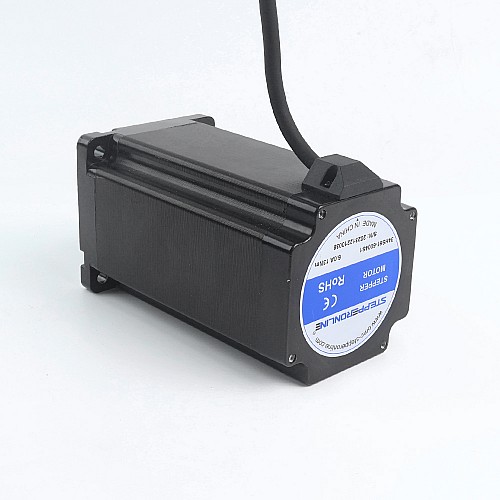

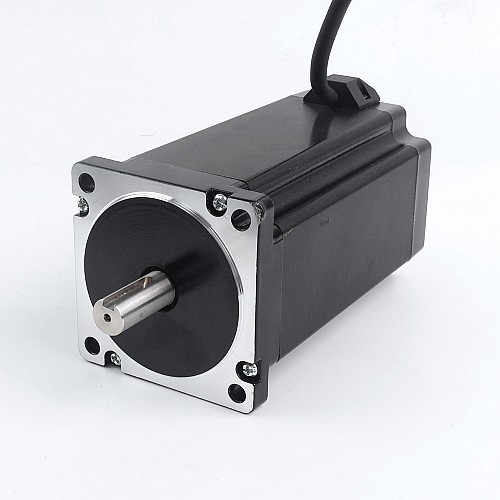

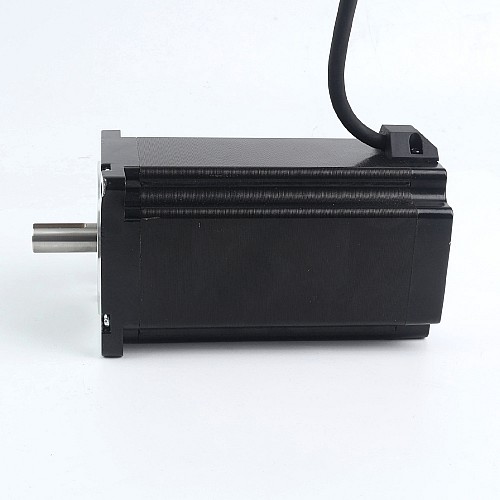

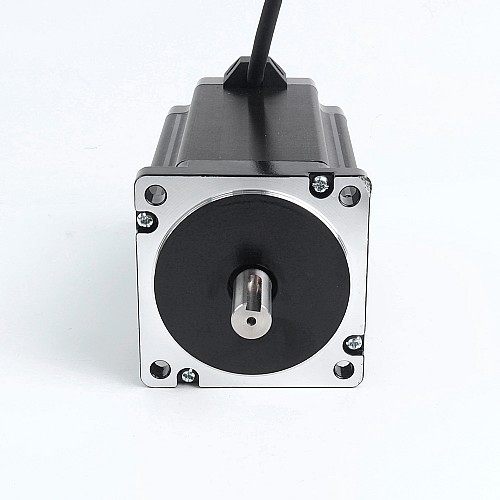

Used - S Series Nema 34 Stepper Motor 13.0Nm(1841oz.in) 14mm Key-way Shaft 1m Cable

Used -61 %

Used - S Series Nema 34 Stepper Motor 13.0Nm(1841oz.in) 14mm Key-way Shaft 1m Cable

0 reviews - Write a review

C$108.60

C$42.37

In Stock: 10000
Model: 34HS61-6004S1-USED
Gross Weight: 6.60kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 34HS61-6004S1
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.9ohms± 10%
Inductance: 7.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 156mm
Shaft Diameter: Φ14mm
Shaft Length: 32mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 5.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

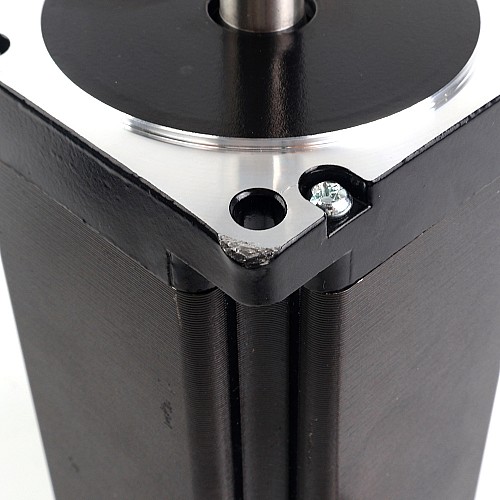

Product status note: there is significant impact damage at one corner of the motor's end face.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1300
Holding Torque(oz.in)	1841
Inductance(mH)	7.5
Phase Resistance(ohms)	0.9
Rated Current(A)	6.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	156
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	32
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	5700
