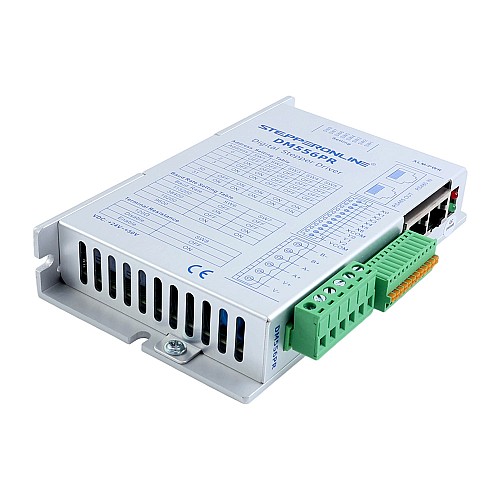

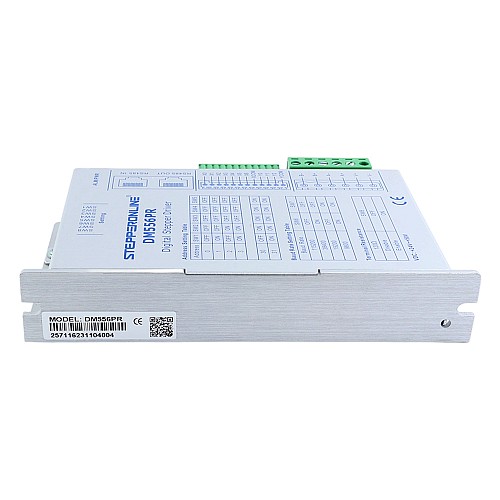

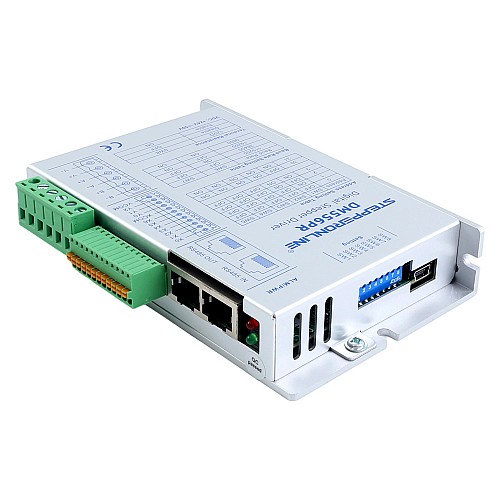

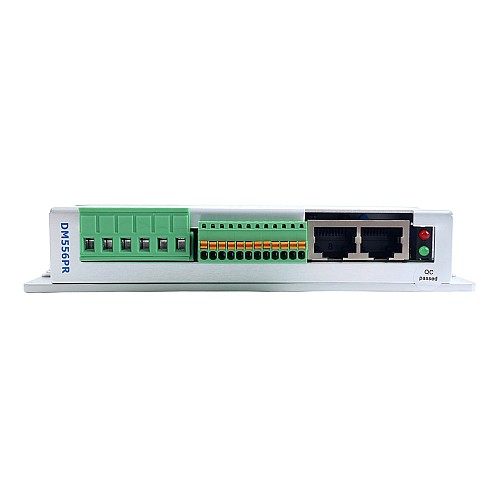

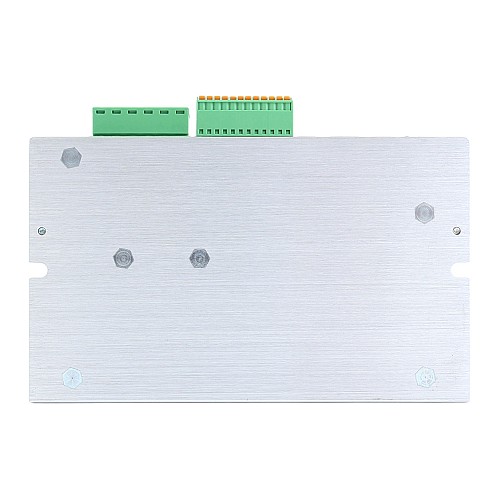

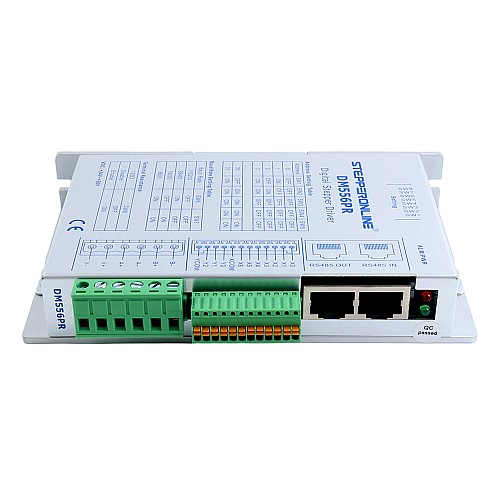

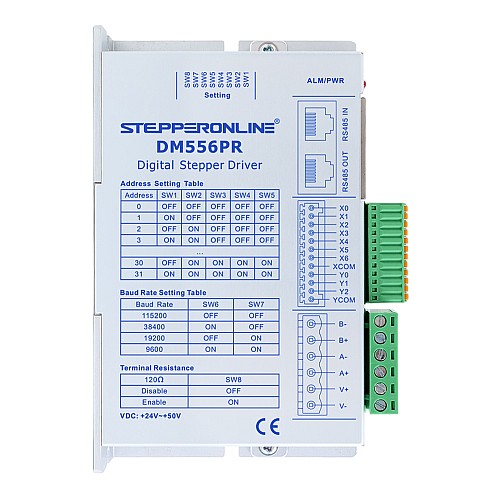

Y Series Modbus RS485 Stepper Driver 0-4.0A 24-50VDC for Nema 23, 24, 34 Stepper Motor

This is a stepper driver support standard Modbus RTU protocol. It delivers superior performance with a current range of 0–4.0A and an operating voltage of 24–50VDC, making it ideal for Nema 23, 24, 34 stepper motors.
The next-generation 32-bit DSP-based closed-loop stepper driver combines high performance, stability, and cost efficiency with ultra-low noise and vibration. With versatile I/O interfaces, it supports position/speed control, homing, and single-axis motion functions, while allowing users to adjust current, subdivision settings, and monitor real-time motor status via bus commands.

Key Features

• Next-generation 32-bit DSP control technology delivers exceptional cost-performance ratio, superior stability, and ultra-quiet operation with minimal vibration
• RS485 bus communication interface with Modbus RTU protocol support enables network control of up to 31 drivers in daisy-chain configuration
• Comprehensive I/O interface suite for complete single-axis motion control including position/speed regulation and homing functions
• Bus-configurable parameters: phase current, microstepping resolution, and holding current (with real-time motor status monitoring)
• Four programmable motion control modes: CSP (Cyclic Synchronous Position), PP (Profile Position), PV (Profile Velocity), and HOME
• 3 optically isolated high-speed differential outputs for external motor start/stop control
• 7 optically isolated single-ended inputs for external command interface (enable/run/emergency stop)
• 3 optically isolated status output ports for real-time driver condition monitoring
• Wide microstepping range (400-51,200 steps/rev) with precision current control for reduced motor heating
• Integrated protection circuitry: over-voltage, under-voltage, over-current, and position error detection

Electrical Specifications

• Continuous Output Current: 0 - 4.0A(Typical 2.0A)
• Input Voltage: 24 - 50VDC(Typical 24V)
• Logic Input Current: 7.0 - 16mA(Typical 10mA)
• Logic Input Voltage: 5 - 24V
• Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling
• Environment: Stay away from other heating equipment and avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust
• Temperature: 0℃ - 50℃
• Humidity: 40%RH - 90%RH(non-condensation)
• Vibration: 10 - 55Hz/0.15mm
• Storage Temperature: -20℃ - 70℃
