YS Series 1 Axis Closed Loop Stepper CNC Kit 3.00Nm(424.83oz.in) Nema 23 Motor w/ 2.0m Cables & Power Supply

0 reviews - Write a review

C$121.72

5 + C$117.56

10 + C$113.66

50 + C$110.04

100 + C$106.62

In Stock: 10000
Model: 1-CLYS30
Gross Weight: 3.17kg
Certificated: ISO, CE

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

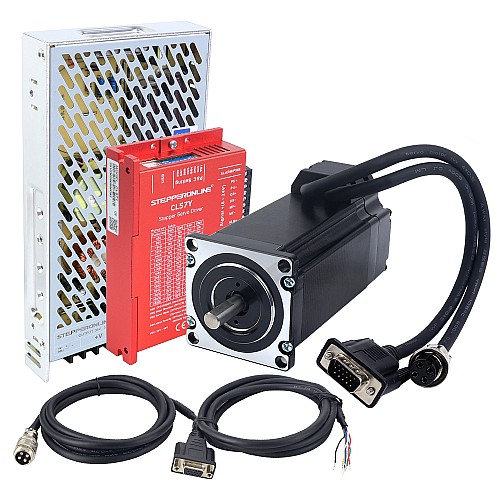

This CNC kit includes:

1 x 23HS40-5004D-E1000: S Series Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
1 x CL57Y: Y Series Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
1 x LE-201-36: 201W 36V 5.9A 115/230V Switching Power Supply
1 x CE2-M2-20: 1.7m(67") Long Encoder and Motor Extension Cables

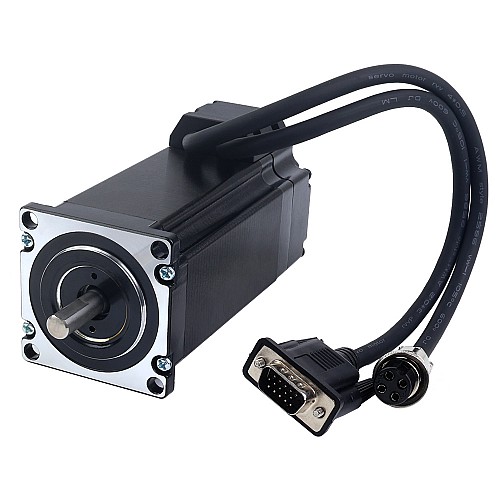

Motor Specification

Manufacturer Part Number: 23HS40-5004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.00Nm(424.83oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.6ohms ± 10%
Inductance: 2.3mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 57 x 57mm
Body Length: 122mm
Shaft Diameter: Φ8mm
Shaft Length: 22mm
D-Cut Length: 15mm
Cable Length: 300mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~7A(0~5 RMS)
Input Voltage: +24~50VDC(Typical 36VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

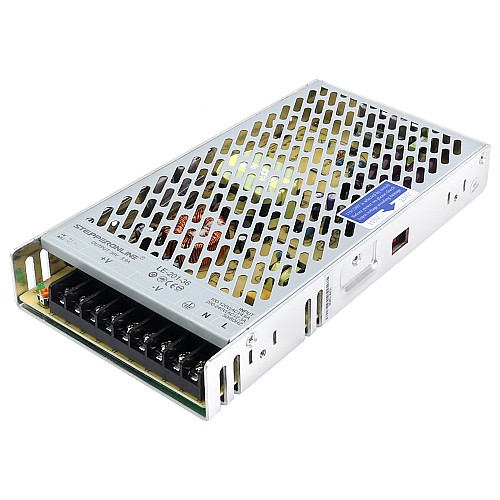

Power Supply Specification

Part Number: LE-201-36
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 36V
Output Current: 5.9A
Rated Output Power: 201W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Inductance(mH)	2.3
Input Voltage Reference(V)	24 - 48DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.6
Rated Current(A)	5.0
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	8
Shaft Length(mm)	22

File	Size
23HS40-5004D-E1000_Torque_Curve.pdf	166.14KB	Download
LE-201-36.pdf	262.13KB	Download
23HS40-5004D-E1000.STEP	6.59MB	Download
CL57Y_MANUAL.pdf	790.19KB	Download
CL57Y.STEP	3.03MB	Download
23HS40-5004D-E1000_Full_Datasheet.pdf	107.98KB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
