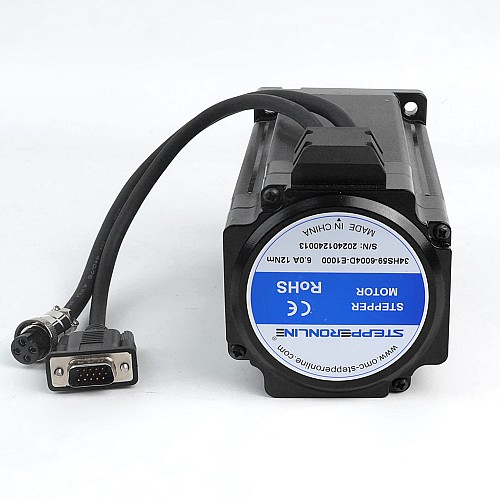

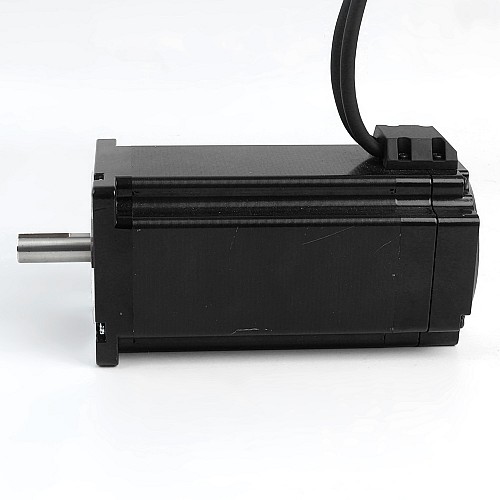

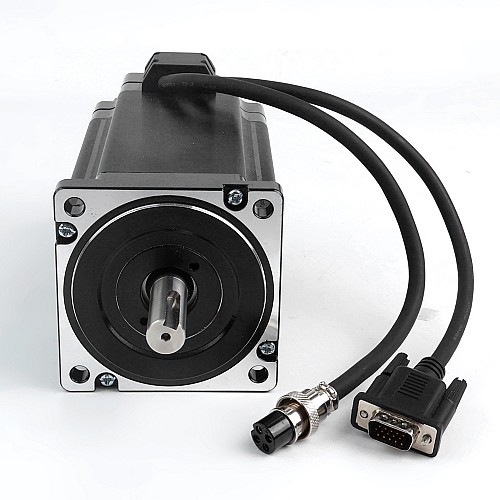

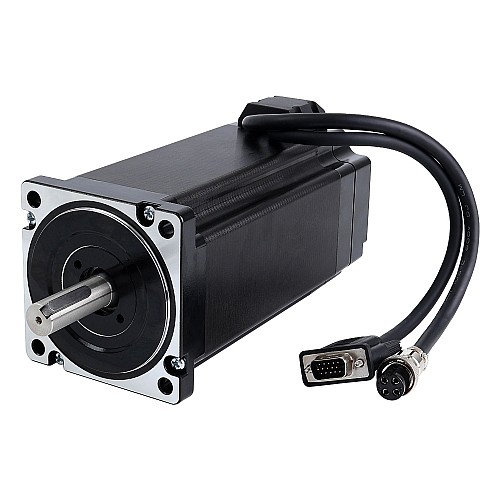

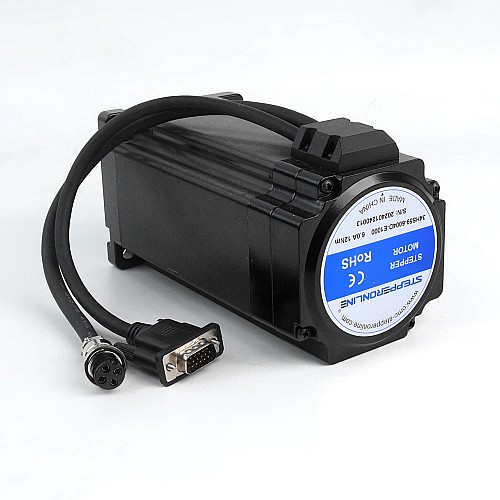

Used - S Series Nema 34 Closed Loop Stepper Motor 12.0Nm(1699.34oz.in) Encoder 1000PPR(4000CPR)

S Series Nema 34 Closed Loop Stepper Motor 12.0Nm(1699.34oz.in) Encoder 1000PPR(4000CPR) - 34HS59-6004D-E1000 | StepperOnline CA

Used -55 %

Used - S Series Nema 34 Closed Loop Stepper Motor 12.0Nm(1699.34oz.in) Encoder 1000PPR(4000CPR)

0 reviews - Write a review

€61.33

€27.64

In Stock: 10000
Model: 34HS59-6004D-E1000-USED
Gross Weight: 5.90kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 34HS59-6004D-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12.0Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.53ohms± 10%
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 175mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Lead Length: 300mm
Weight: 5.5kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

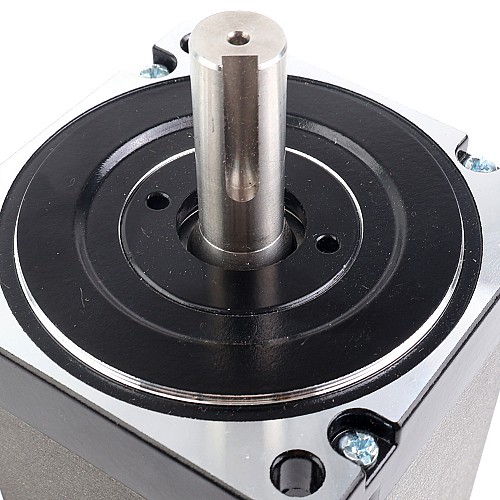

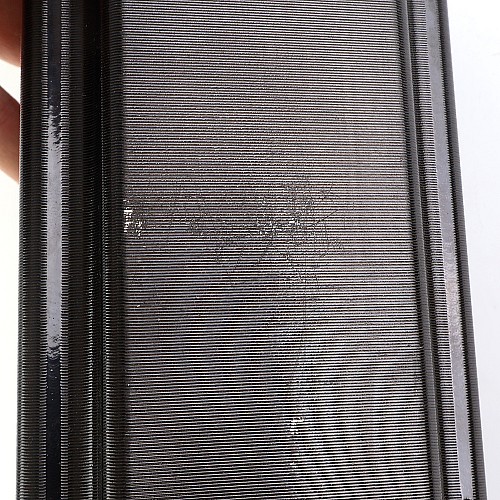

Product status note: the motor shaft has obvious indentations and there is minor paint peeling on the motor surface.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Condition	Used
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.34
Inductance(mH)	4.8
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.53
Rated Current(A)	6.0
Physical Specification
Body Length(mm)	169
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Product Series	S Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37
