YS Series 3 Axis 4.00Nm(566.45oz.in) Nema 24 Closed Loop Stepper Kit V2.0 w/ Power Supply

New

YS Series 3 Axis 4.00Nm(566.45oz.in) Nema 24 Closed Loop Stepper Kit V2.0 w/ Power Supply

0 reviews - Write a review

C$313.48

5 + C$304.33

10 + C$295.69

50 + C$287.53

100 + C$279.81

In Stock: 10000
Model: 3-CLYS40-V20
Gross Weight: 10.15kg
Certificated: ISO, CE

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

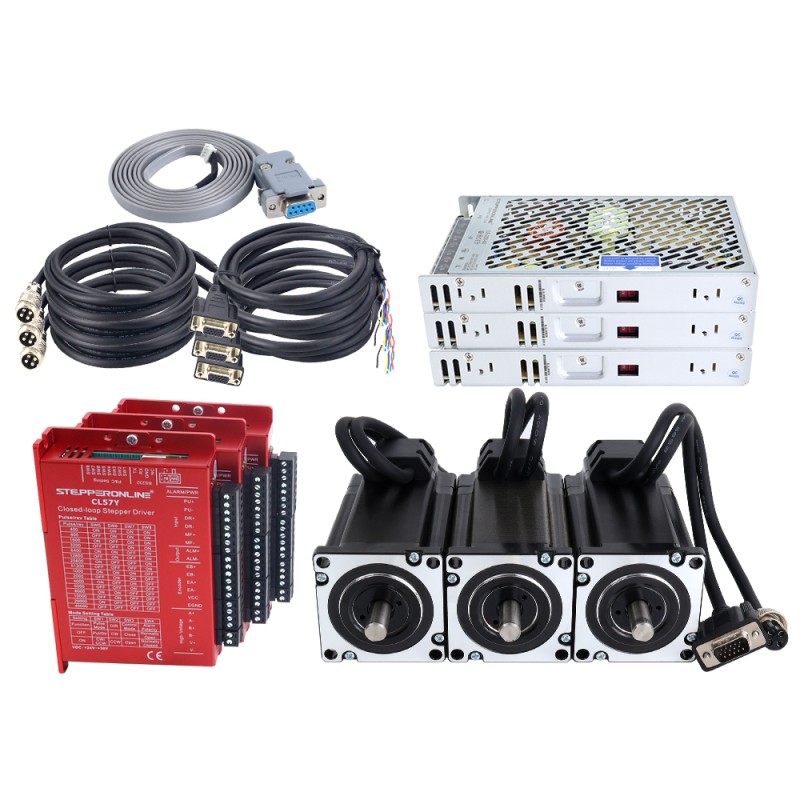

This CNC kit includes:

3 x 24HS40-5004D-E1000: Nema 24 Closed Loop Stepper Motor 4.00Nm(566.45oz.in) Encoder 1000PPR(4000CPR)
3 x CL57Y-V20: Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
3 x LE-250-48: 250W 48V 5.2A Switching Power Supply driver
3 x 1 x CE2-M2-20: 1.7m(67") Motor AWG20 and Encoder Extension Cable
1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

Part Number: 24HS40-5004D-E1000
Number of phase: 2
Holding Torque: 4.00Nm(566.45oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.6ohms
Inductance: 2.6mH ± 20%(1KHz)
Frame Size: 60 x 60mm
Body Length: 125mm
Shaft Diameter: Φ10mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Cable Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~7A(0~5RMS)
Input Voltage: +24~50VDC
Logic Input Current: 1~7.5mA
Pulse Input Frequency: 0~200kHz
Isulation Resistance: 10MΩ

Power Supply Specification

Part Number: LE-250-48
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 48V
Output Current: 5.2A
Rated Output Power: 250W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

The CL57Y-V20 improves upon the CL57Y by adding a 5V/24V selector switch and including a free RS232 debugging cable.

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	400
Holding Torque(oz.in)	566.45
Inductance(mH)	2.6
Input Voltage Reference(V)	24 - 48DC
Number of Axes	3
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.6
Rated Current(A)	5.0
Physical Specification
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	10
Shaft Length(mm)	21

File	Size
CL57Y-V20.STEP	14.7MB	Download
CL57Y(V2.0)_pulse_stepper_driver_manual_V1.0.pdf	852.7KB	Download
24HS40-5004D-E1000.STEP	7.67MB	Download
24HS40-5004D-E1000_Full_Datasheet.pdf	239.17KB	Download
24HS40-5004D-E1000_Torque_Curve.pdf	84.41KB	Download
LE-250-48.pdf	258.5KB	Download
