YS Series 3 Axis Stepper CNC Kit 3.00Nm(424.83oz.in) Nema 23 Stepper Motor & Driver & 48V Power Supply

0 reviews - Write a review

C$194.84

5 + C$189.14

10 + C$183.79

50 + C$178.71

100 + C$173.91

In Stock: 10000
Model: 3-DM556Y-S30
Gross Weight: 7.09kg
Certificated: ISO, CE, UKCA

Available Options

Ships from

China

United Kingdom

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This CNC kit includes:

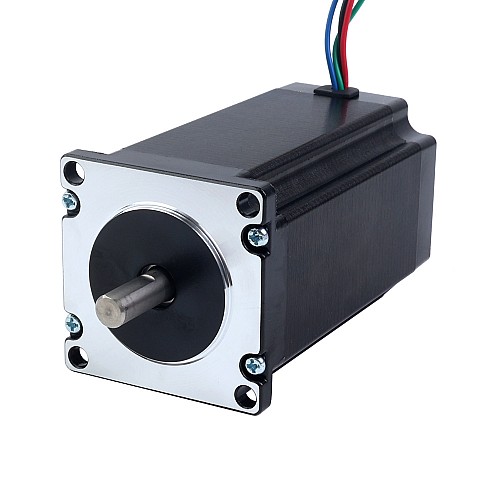

3 x 23HS39-5004S: Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires

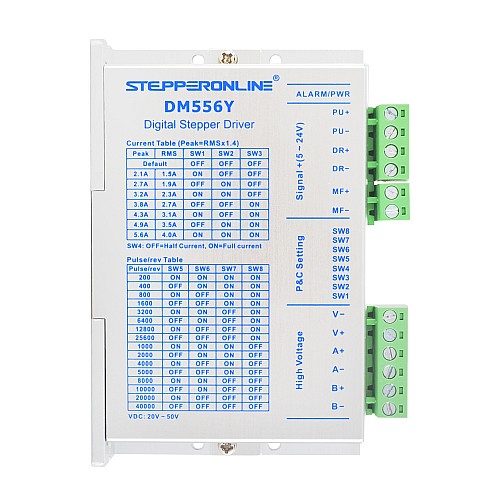

3 x DM556Y: Y Series Digital Stepper Driver 1.7-5.6A DC20V-50V for Nema 23, 24, 34 Stepper Motor

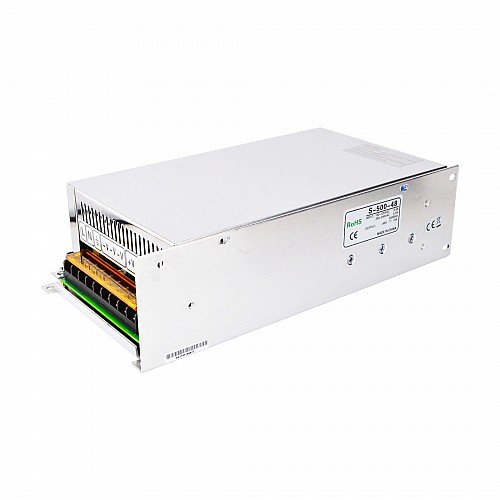

1 x S-500-48: 500W 48V 10.5A 115/230V Switching Power Supply

Motor Specification

Manufacturer Part Number: 23HS39-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.00Nm(424.83oz.in)
Rated Current/Phase:5.0A
Phase Resistance: 0.6ohms±10%
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 57 x 57mm
Body Length: 100mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Cables: 4
Cable Length: 400mm

Driver Specification

Output Peak Current: 1.7 - 5.6A(1.2~4.0RMS)
Input Voltage: DC20V~50V
Logic Signal Current: 7 - 15mA(Typical 10mA)
Pulse Input Frequency: 0 - 200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Power Supply Specification

Part Number: S-500-48
48V DC 10.5A output
AC input voltage range: 90~135VAC/180~264VAC
High efficiency low cost
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Input Voltage Reference(V)	24 - 48DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	8
Shaft Length(mm)	21

File	Size
23HS39-5004S_Full_Datasheet.pdf	54.74KB	Download
S-500-48.pdf	109.23KB	Download
23HS39-5004S_Torque_Curve.pdf	169.48KB	Download
23HS39-5004S.STEP	1.49MB	Download
DM556Y_User_Manual_V1.0.pdf	755.65KB	Download
