YS Series 3 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver & AC Transformer

0 reviews - Write a review

C$298.22

5 + C$289.52

10 + C$281.30

50 + C$273.53

100 + C$266.19

In Stock: 10000
Model: 3-DM860Y-TR80
Gross Weight: 21.56kg
Certificated: ISO, CE, UKCA

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

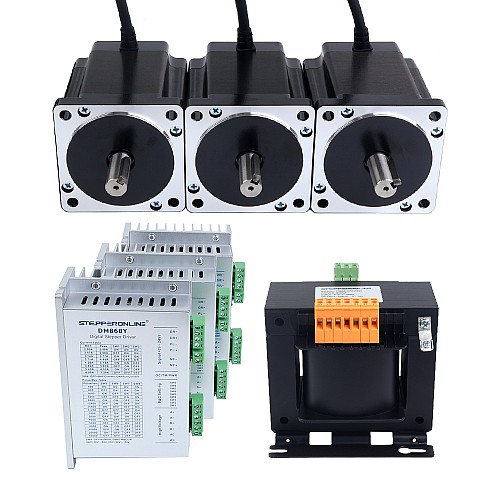

This CNC kit includes:

3 x 34HS39-6004S: S Series Nema 34 Stepper Motor 8.0Nm(1132.89oz.in) 6.0A 86x86x98mm 4 Wires
3 x DM860Y: Y Series Digital Stepper Driver 2.4-7.2A AC18V-80V/DC 36V-110V for Nema 34 Motor
1 x TR800-A70-A220: 800VA Single-phase Square Control Transformer 220VAC to 3 x 70VAC 50/60Hz

Motor Specification

Manufacturer Part Number: 34HS39-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.0Nm(1132.89oz.in)
Rated Current/Phase: 6.0A
Phase Resistance: 0.55ohms± 10%
Inductance: 4.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 98mm
Shaft Diameter: Φ14mm
Shaft Length: 32mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm

Driver Specification

Output Peak Current: 2.4 - 7.2A(2.0~6.0RMS)
Logic Signal Current: 7 - 15mA(Typical 10mA)
Pulse Input Frequency: 0 - 200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Input Voltage: AC18V~80V/DC 36V-110V(DC +/- power can be connected in any order)

Transformer Specifications

Part Number: TR800-A70-A220
Phase: Single Phase
Power: 800VA
Primary Rated Voltage: 3 x 70VAC
Loading Voltage: 220VAC ± 5%
Frequency: 50/60Hz
Coil Structure: Square
Insulation Class: Class B(130℃)
Frame Size: 151x125x148mm
Installation hole distance: 126x104mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	800
Holding Torque(oz.in)	1132.89
Input Voltage Reference(V)	18 - 80AC / 36 - 110DC
No. of Phase	2
Number of Axes	3
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	Transformer
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	32
