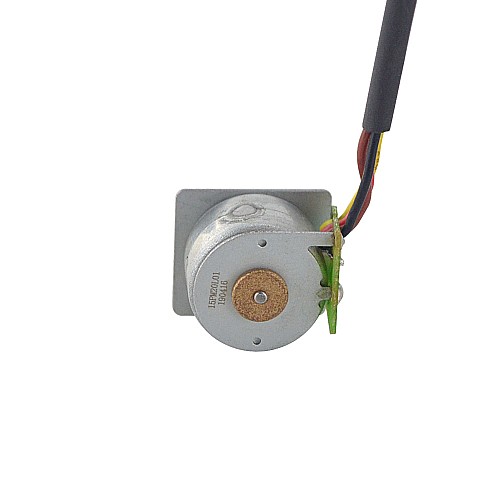

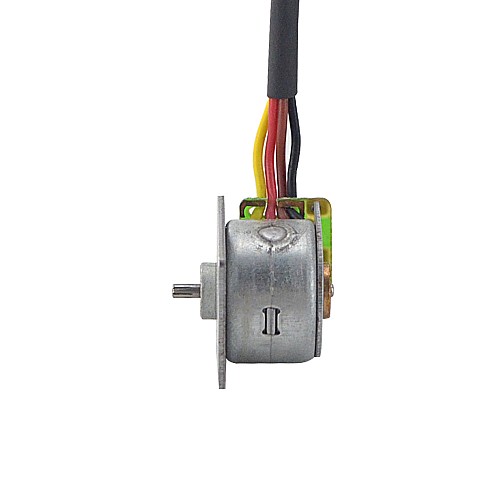

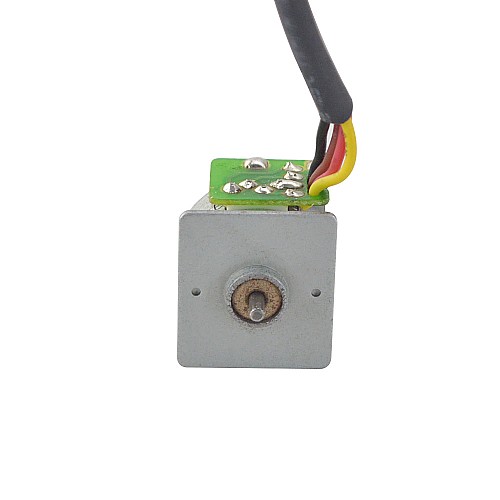

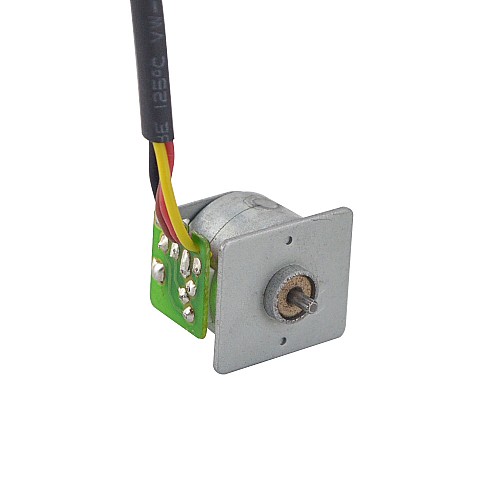

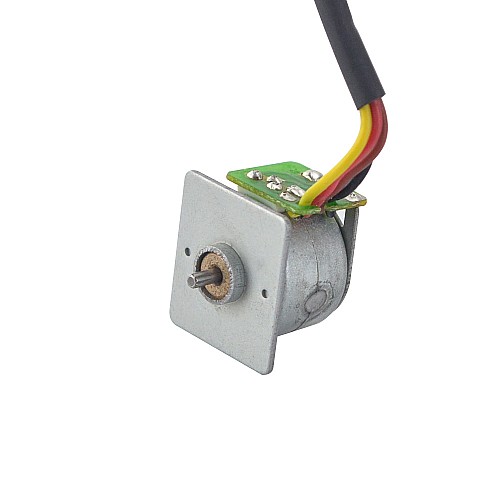

Φ15x12mm PM Stepper motor 18deg 2.45mN.m(0.347oz.in) 0.04A 4 Wires

0 reviews - Write a review

C$1.14

5 + C$1.05

10 + C$1.02

50 + C$0.99

100 + C$0.95

In Stock: 10000
Model: 15PM20L01
Gross Weight: 0.06kg
Certificated: ISO, CE

Sold: 109

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 15PM20L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.04A
Holding Torque: 2.45mN.m(0.347oz.in)
Detent Torque: 0.98mN.m(0.139oz.in)
Phase Resistance: 300±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 58mH±20%(1KHz)
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃, 600 pps)

Physical Specification

Frame Size: Φ15mm
Body Length: 12mm
Shaft Diameter: Φ1.5mm
Shaft Length: 4.5mm

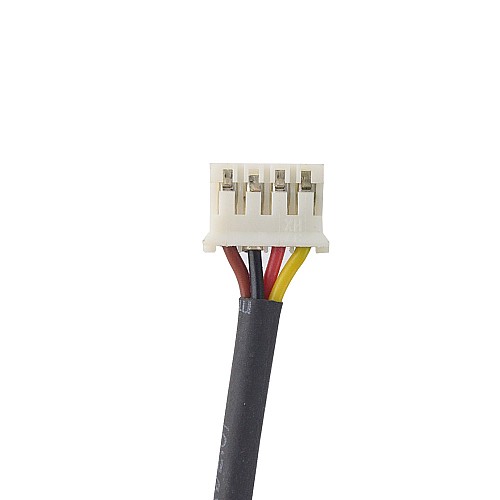

Number of Leads: 4 with connector PH4Y 2.0
Lead Length: 50mm
Weight: 10.3g

Connection

A+	A-	B+	B-
Yellow	Black	Red	Brown

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	0.98
Detent Torque(oz.in)	0.139
Holding Torque(mN.m)	2.45
Holding Torque(oz.in)	0.347
Inductance(mH)	58
No. of Phase	2
Phase Resistance(ohms)	300
Rated Current(A)	0.04
Step Angle(deg.)	18
Physical Specification
Body Length(mm)	12
Frame Size(mm)	Φ15
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	50
No. of Lead	4
Shaft Diameter(mm)	1.5
Shaft Length(mm)	4.5
