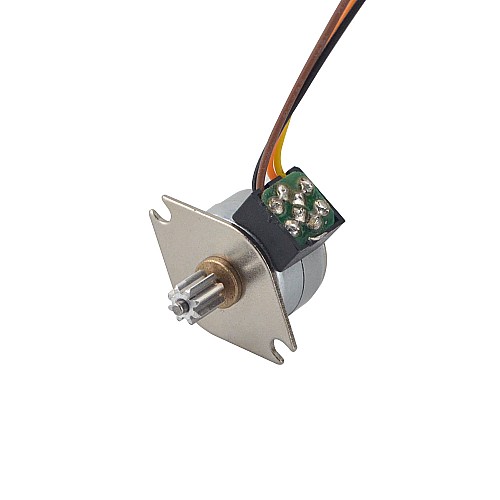

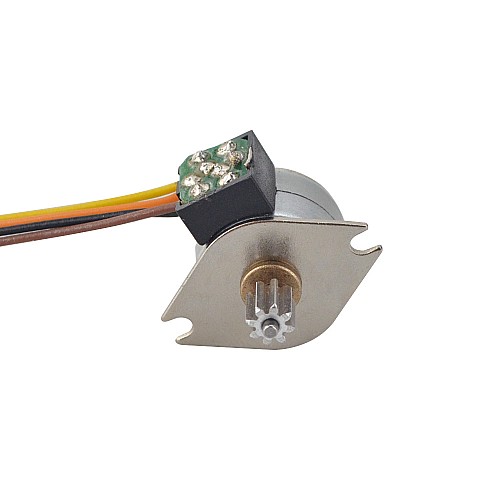

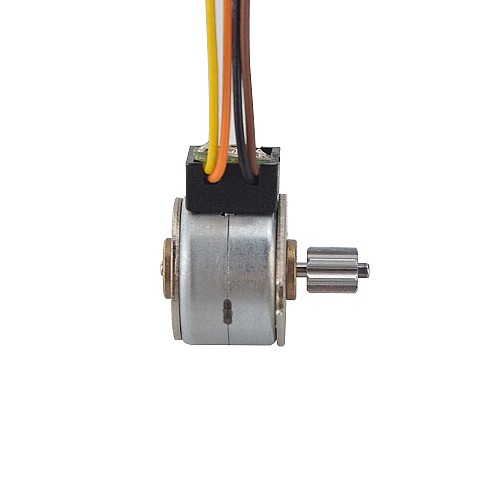

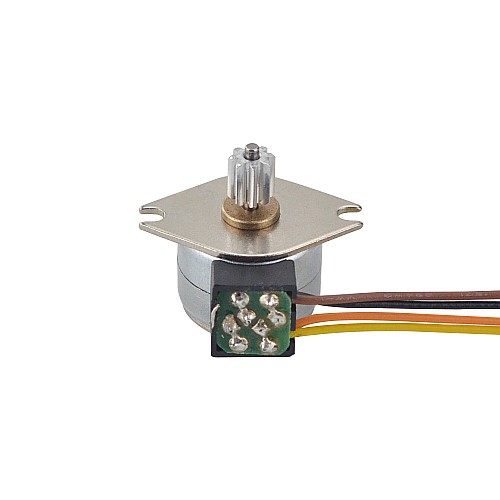

Φ15x12mm PM Stepper motor 18deg 3.43mN.m(0.486oz.in) 0.4A 4 Wires

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 15PM20L02
Gross Weight: 0.06kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the United States, United Kingdom, European Union, Australia, and Russia are advised to select local warehouses first. Customers from other countries like Canada should choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 15PM20L02
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.4A
Holding Torque: 3.43mN.m(0.486oz.in)
Detent Torque: 0.98mN.m(0.139oz.in)
Phase Resistance: 30.5±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 6mH±20%(1KHz)
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃,500 pps)

Physical Specification

Frame Size: Φ15mm
Body Length: 12mm
Shaft Diameter: Φ1.5mm
Shaft Length: 8mm

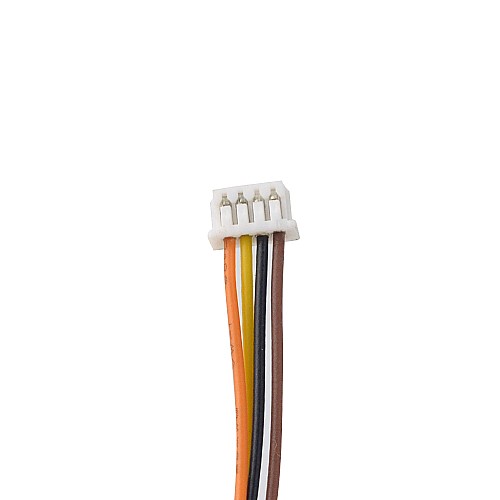

Number of Leads: 4 with connector Molex 51021 1.25
Lead Length: 90mm
Weight: 10.3g

Connection

A+	A-	B+	B-
Black	Brown	Orange	Yellow

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	0.98
Detent Torque(oz.in)	0.139
Holding Torque(oz.in)	0.486
Inductance(mH)	6
No. of Phase	2
Phase Resistance(ohms)	30.5
Rated Current(A)	0.4
Step Angle(deg.)	18
Physical Specification
Frame Size(mm)	Φ15
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	90
No. of Lead	4
Shaft Diameter(mm)	1.5
Shaft Length(mm)	8
