5pcs 28BYJ-48 4-Phase Stepper Motor & ULN2003 Driver Board kit

0 reviews - Write a review

C$6.13

5 + C$5.99

10 + C$5.86

50 + C$5.73

100 + C$5.61

In Stock: 10000
Model: 5-ULN2003
Gross Weight: 0.44kg
Certificated: ISO

Sold: 2

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This 5-wire, 4-phase unipolar stepper motor features center-tapped coils with a common power connection. It is ideally paired with the ULN2003 Darlington transistor array driver chip. The combination offers a direct pluggable interface, enabling simple connection to standard development boards for easy control and precise discrete step movement in projects.

Specification

Rated Voltage: 5V
Number of Phase: 4
Step Angle: 5.625°
Phase Resistance: 50.00±7%ohms(25°C)
In-traction Torque: 34.3mN.m(120Hz)
Self-postioning Torque: 34.3mN.m
Friction Torque: 600-1200gf.cm
Pull In Torque: 300gf.cm
Speed Variation Ratio: 1/64
Frequency: 100Hz
Idle In-traction Frequency: >600Hz
Idle Out-traction Frequency: >1000Hz
Insulated Resistance: >10MΩ(500V)
Insulated Electricity: 600VAC/1mA/1s
Temperature Rise: <40K(122Hz)
Insulation Grade: A
Noise: <35dB

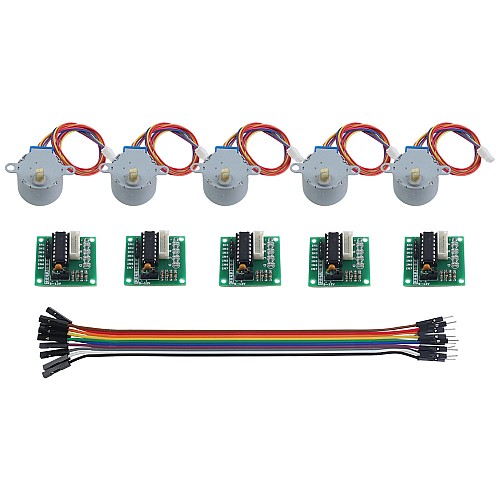

This kit included:

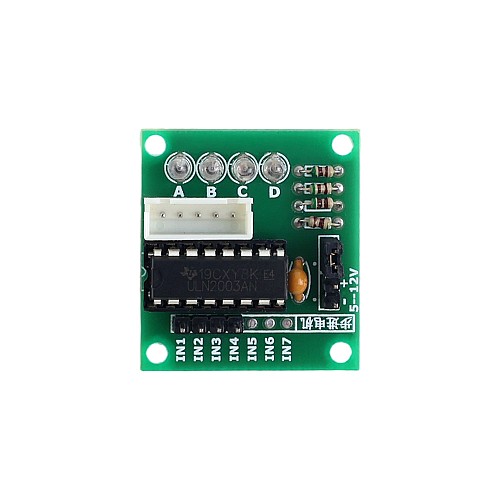

5 x ULN2003 Drive Module Board

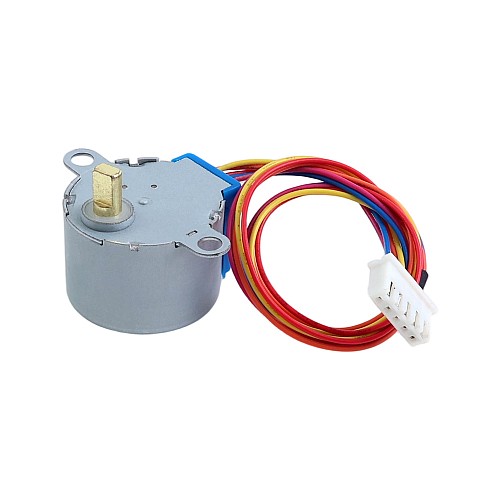

5 x 28BYJ-48 Stepper motor

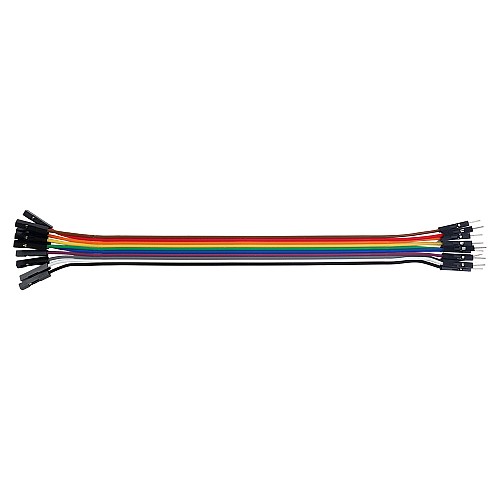

1 x ULN2003-L 200mm Cable

Here is the wiring diagram of ULN2003 and ARDUINO UNO and some sample code for your reference.

Electrical Specification
Frequency(Hz)	100
Friction Torque(gf.cm)	600-1200
Idle In-traction Frequency(Hz)	>600
Idle Out-traction Frequency(Hz)	>1000
In-traction Torque(mN.m)	34.3
Input Voltage Reference(V)	5
Insulated Electricity	600VAC/1mA/1s
Insulated Resistance	>10MΩ(500V)
Insulation Class	A
No. of Phase	4
Noise	<35dB
Phase Resistance(ohms)	50.00
Pull In Torque(gf.cm)	300
Self-postioning Torque(mN.m)	34.3
Step Angle(deg.)	5.625
Temperature Rise	<40K(122Hz)
Physical Specification
Inventory Method	Dedicated Inventory
Power Supply	No
Shaft Diameter(mm)	5
Speed Variation Ratio	1/64
