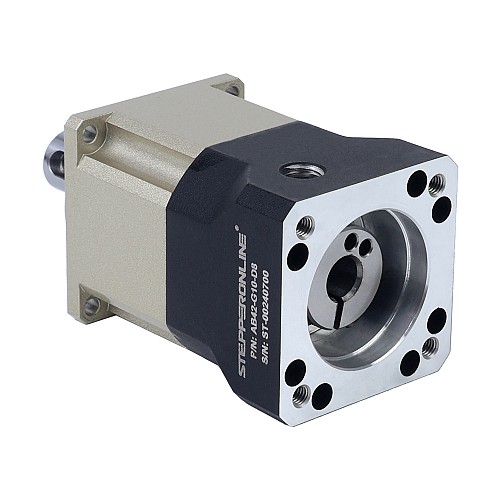

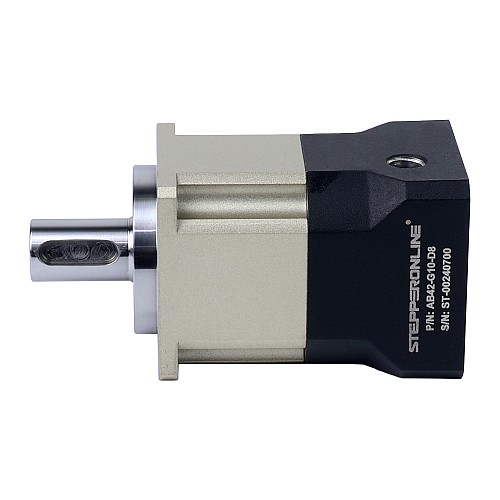

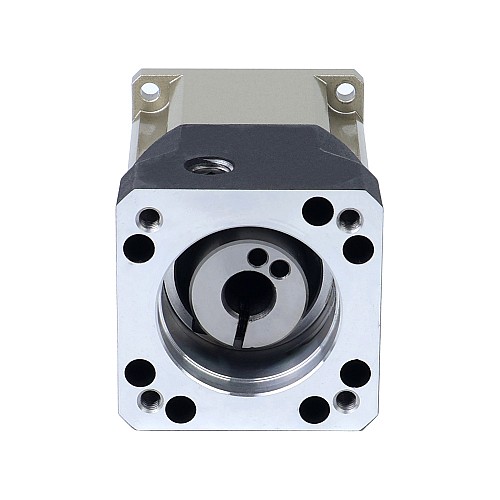

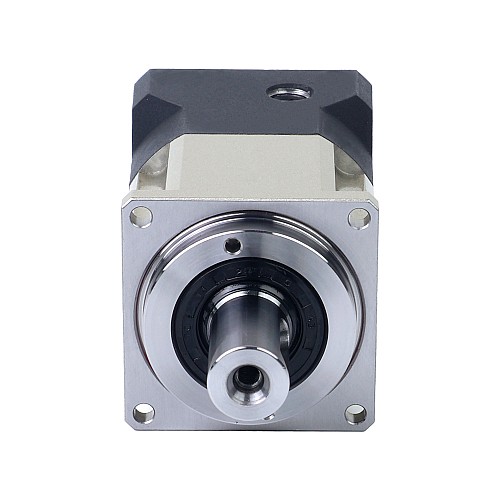

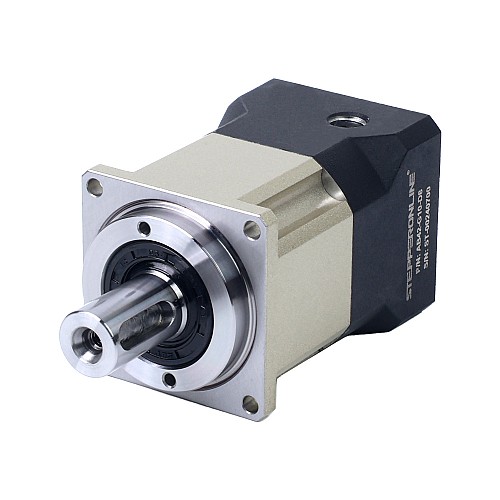

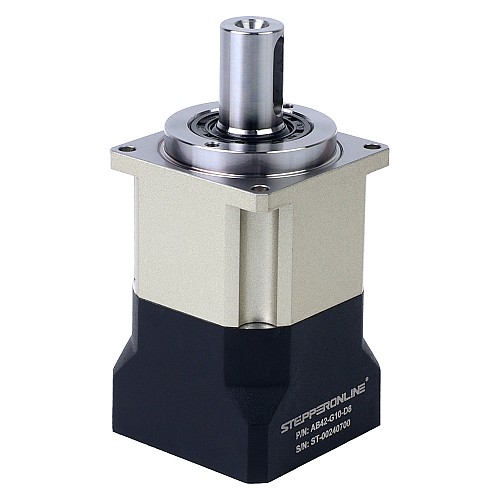

AB Series 42mm 10:1 Helical Planetary Gearbox Backlash 3arcmin for Servo Motors IP65

0 reviews - Write a review

C$98.79

5 + C$92.81

10 + C$87.50

50 + C$82.78

100 + C$78.53

In Stock: 10000
Model: AB42-G10-D8
Gross Weight: 0.59kg
Certificated: ISO, CE, REACH

Sold: 39

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This helical planetary gearbox offers a gear ratio of 10:1 with a backlash of 3arcmin. It is designed for servo motors with a size of 40mm and a shaft diameter of 8mm.
This gearbox is designed for harsh environments with a high protection rating of IP65 and features helical gearing for smooth, quiet operation with high torque and accuracy. In addition, the design offers high load capacity for demanding applications like automated production lines, packaging machines, textile machines, etc.

Gearbox Specifications

Part Number: AB42-G10-D8
Gearbox Type: Helical Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 95%
Backlash at No-load: 3arc-min
Rated Input Speed: 4000rpm
Maximum Input Speed: 8000rpm
Max.Permissible Torque: 6Nm(53.10lb-in)
Moment Permissible Torque: 30Nm(265.52lb-in)
Shaft Maximum Axial Load: 640N
Shaft Maximum Radial Load: 710N
Waterproof Rating: IP65
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 62mm
Input Shaft Diameter: Φ8mm
Input Shaft Length: Max. 26mm
Output Shaft Diameter: Φ13mm
Output Shaft Length: 26mm
Output Shaft Type: Keyway

Physical Specification
Backlash at No-load	3arcmin
Frame Size(mm)	42 x 42
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	62
Gearbox Type	Helical Planetary
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	26
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 40 Servo Motor
Output Shaft Diameter(mm)	13
Output Shaft Length(mm)	26
Output Shaft Type	Keyway
Product Series	AB
