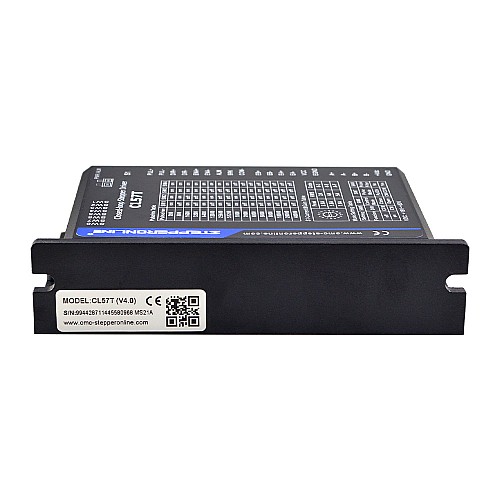

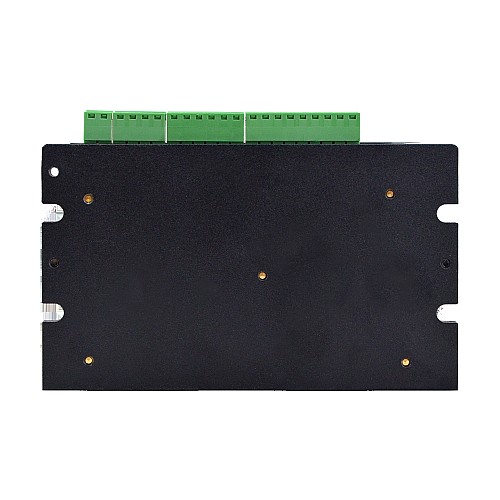

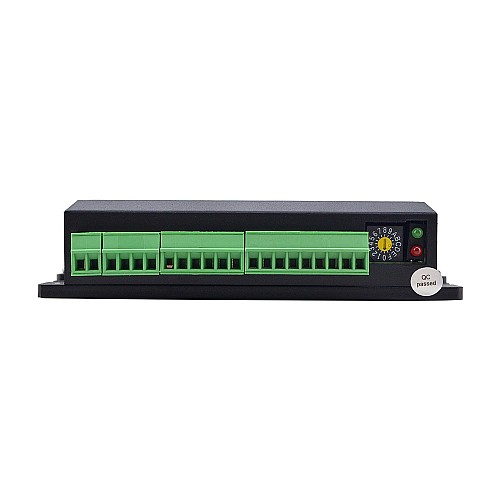

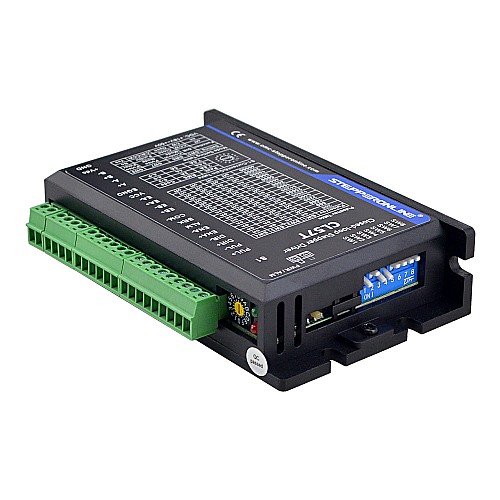

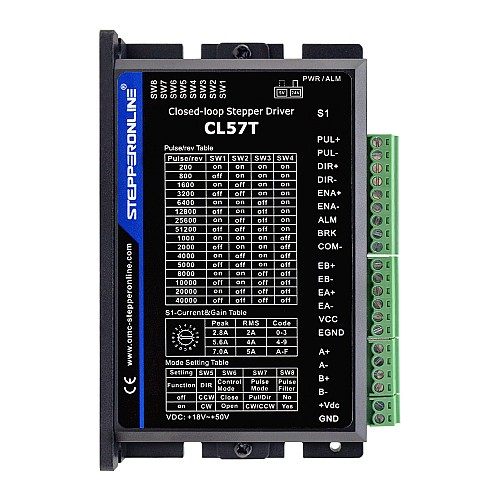

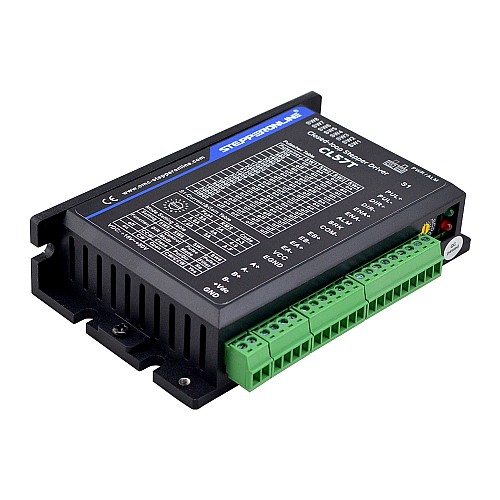

Closed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor

This closed-loop stepper driver 0-8.0A 24-48VDC for Nema 17, 23, 24 stepper motor offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Key Features:

• No Tuning and always stable
• Broader operating speed range
• Do not need a high torque margin
• Reduced motor heating and more efficient
• Smooth motion and super-low motor noise
• Closed-loop, eliminates loss of synchronization
• 5V/24V logic voltage selector, default setting 24V
• Protections for over-voltage, over-current and position following error

Electrical Specifications:

• Output Peak Current: 0~8A
• Input Voltage: +24~48VDC(Typical 36VDC)
• Logic Signal Current: 7~16mA(Typical 10mA)
• Pulse Input Frequency: 0~200kHz
• Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 50℃
• Vibration: 10-50Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.280g(9.9oz)
