DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor

Hot

DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor

1 reviews - Write a review

C$46.66

5 + C$44.74

10 + C$42.96

50 + C$41.34

100 + C$39.81

In Stock: 10000
Model: SWB-01
Gross Weight: 0.50kg
Certificated: ISO, CE

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

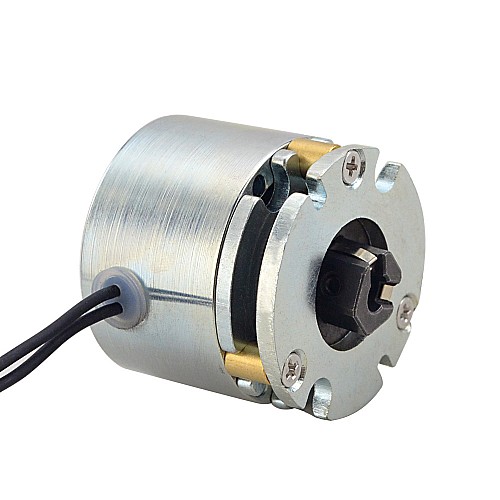

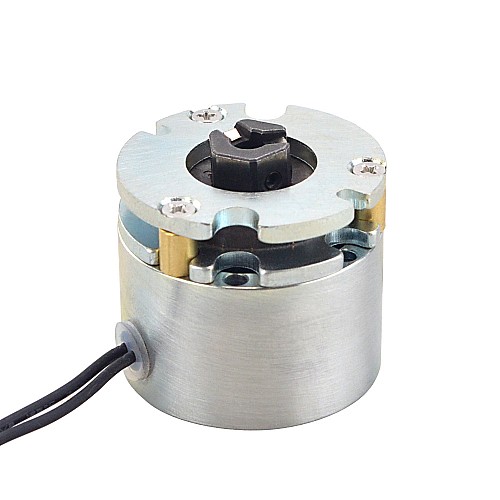

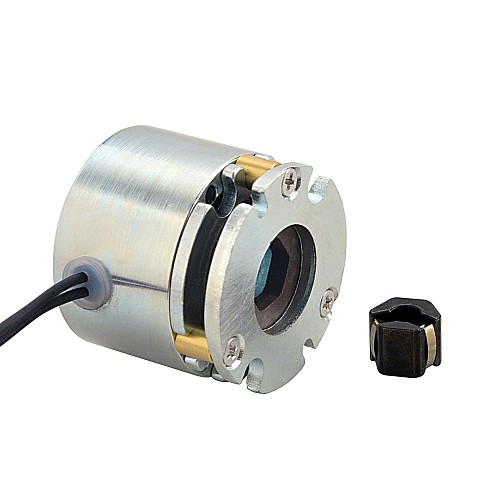

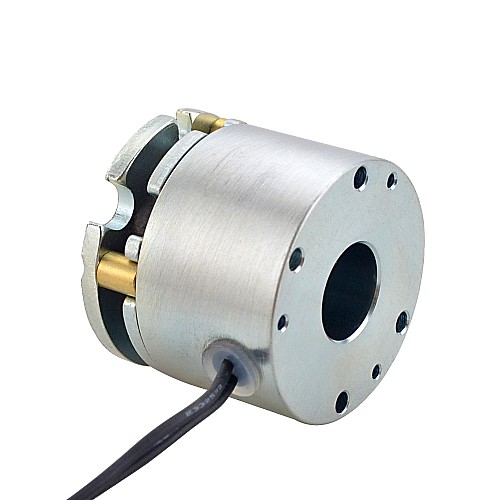

This brake is Non-excited brake and operate with 24VDC, it can create Max 0.25Nm(35.4oz.in) static friction torque. It's a good choice for Nema 17 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

Brake Type: Non-excited
Static Friction Torque : 0.25Nm(35.4oz.in)
Moment of Interia : 0.6x10^-6kg.cm²
Voltage : 24V
Power: 5W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.2kg

Precautions for Brake Installation:
1. The motor must have a matching rear shaft.
2. There are corresponding mounting holes on motor, and the size fits.

Brake Specification
Brake Power(W)	5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	25
Brake Torque(oz.in)	35.4
Physical Specification
Inventory Method	Dedicated Inventory
