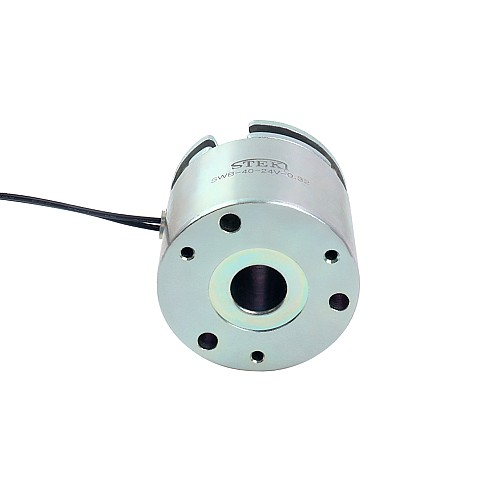

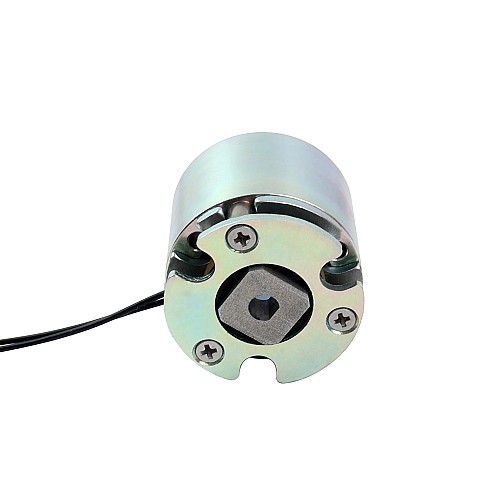

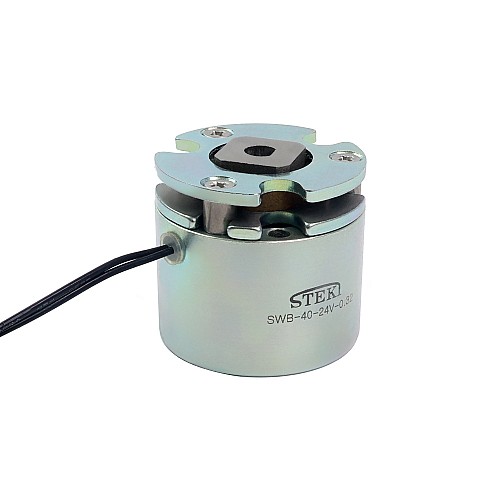

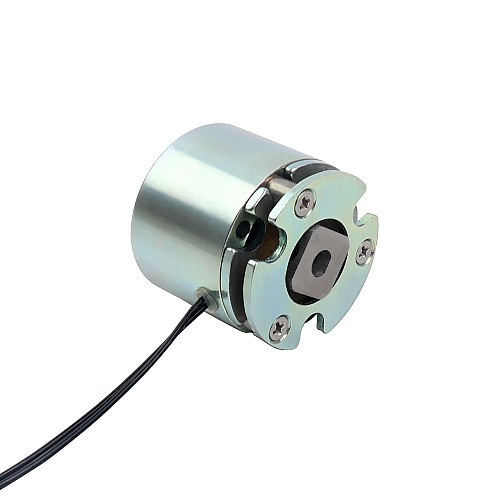

DC Electromagnetic Brake 24V 0.32Nm(45.32oz.in) for Nema 14 Stepper Motor

0 reviews - Write a review

C$73.60

5 + C$70.29

10 + C$67.27

50 + C$64.48

100 + C$61.94

In Stock: Pre-order
Model: SWB-004
Gross Weight: 0.18kg
Certificated: ISO, CE

Sold: 8

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This brake is non-excited brake and operate with 24VDC, it can create Max 0.32Nm(45.32oz.in) static friction torque. It's a good choice for Nema 14 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

Brake Type: Non-excited
Static Friction Torque: 0.32Nm(45.32oz.in)
Rated Voltage: 24VDC
Rated Power: 6.1W
Heat-resistance Class: F
Max. Speed: 6000rpm
Weight: 0.14kg

Precautions for Brake Installation:
1. The motor must have a matching rear shaft.
2. There are corresponding mounting holes on motor, and the size fits.

Brake Specification
Brake Power(W)	6.1
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	32
Brake Torque(oz.in)	45.32
Physical Specification
Inventory Method	Dedicated Inventory
