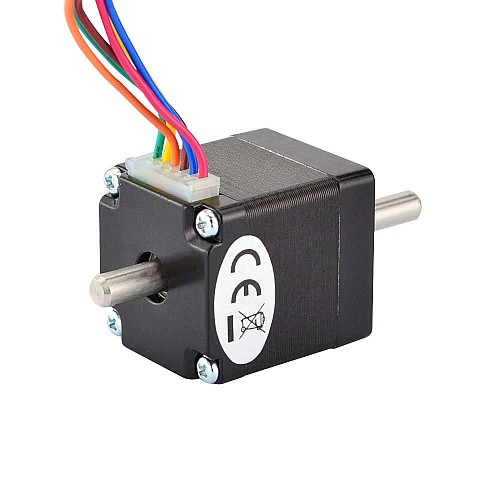

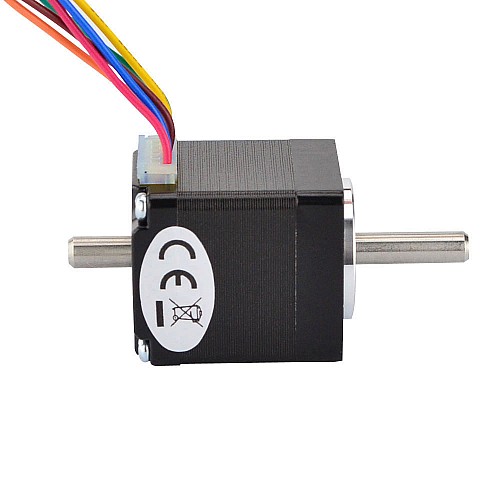

Dual Shaft Nema 11 Unipolar 1.8deg 4.3Ncm(6.1oz.in) 0.95A 28x28x31.5mm 6 Wires

1 reviews - Write a review

C$15.45

5 + C$14.73

10 + C$14.06

50 + C$13.45

100 + C$12.89

In Stock: 10000
Model: 11HS12-0956D
Gross Weight: 0.20kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This unipolar stepper motor with step angle 1.8deg and size 28x28x31.5mm. It has 6 wires, each phase draws 0.95A at 2.66V, with holding torque 4.3Ncm(6.1oz.in). A 10mm rear shaft was for encoder or equals.

Electrical Specification

Manufacturer Part Number: 11HS12-0956D
Motor Type: Unipolar Stepper
Step Angle: 1.8deg
Holding Torque: 4.3Ncm(6.1oz.in)
Rated Current/phase: 0.95A
Phase Resistance: 2.8ohms
Inductance: 1mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 31.5mm
Shaft Diameter: Φ5mm
Front Shaft Length: 20mm
Rear Shaft Length: 10mm
Number of Leads: 6
Lead Length: 300mm
Weight: 110g

Connection

A+	O+	A-	B+	O-	B-
Red	Black	Yellow	Blue	Orange	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	4.3
Holding Torque(oz.in)	6.1
Inductance(mH)	1
Phase Resistance(ohms)	2.8
Rated Current(A)	0.95
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	31.5
Cable Length(mm)	300
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	6
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	110
