Dual Shaft Nema 23 CNC Stepper 3.1Nm(439oz.in) 60x60x88mm 8 Wires

1 reviews - Write a review

C$49.24

5 + C$46.93

10 + C$44.81

50 + C$42.89

100 + C$41.11

In Stock: 10000
Model: 24HS34-3008D
Gross Weight: 1.50kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 276

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

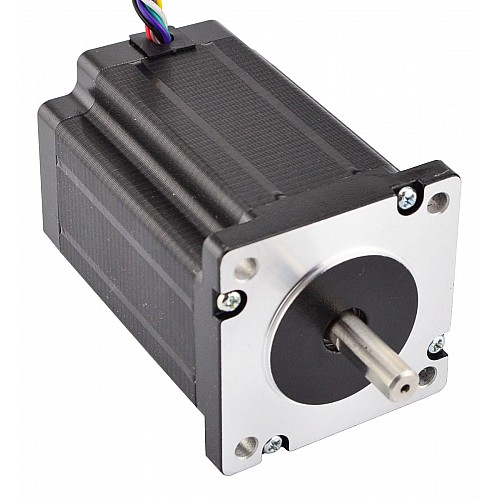

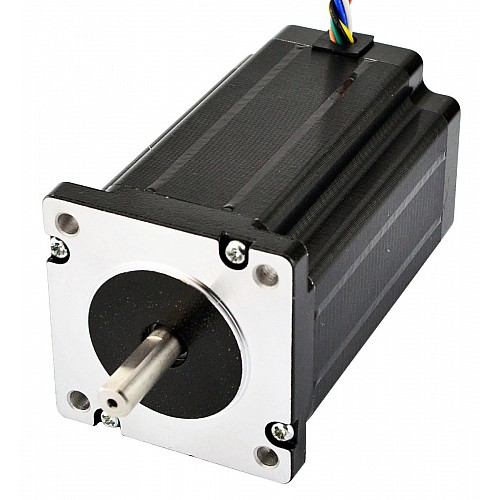

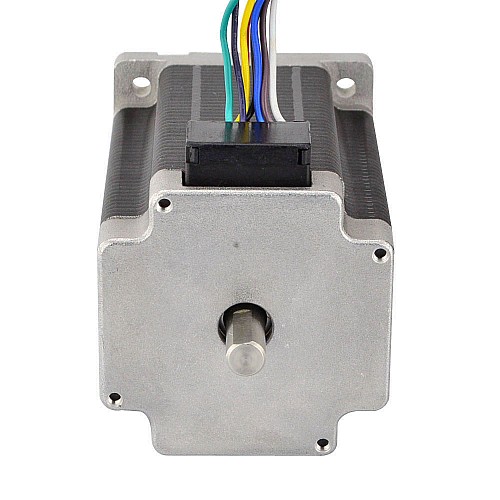

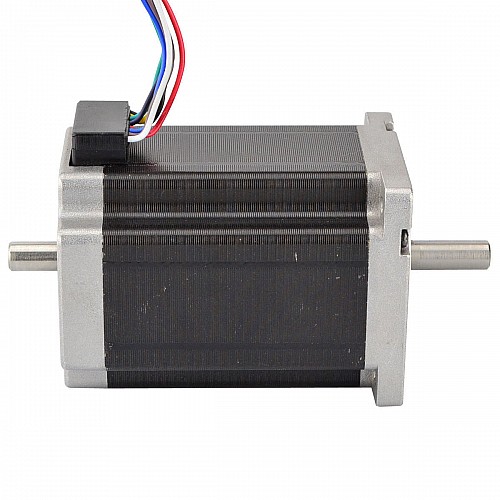

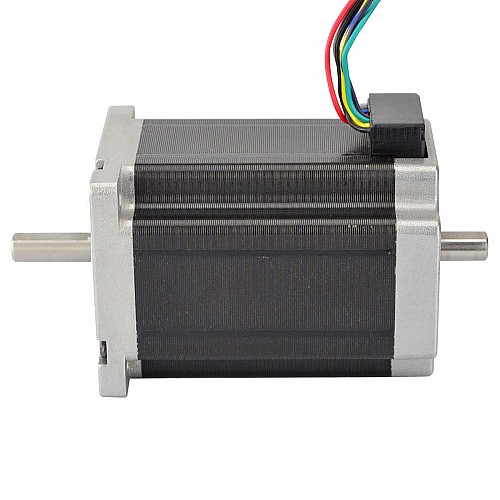

This nema 23 stepper motor with step angle 1.8deg and size 60x60x88mm. The installation dimensions are the same as the conventional Nema 23 motor, with greater torque. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's holding torque reach 2.2Nm(312oz.in) with unipolar connection and 3.1Nm(439oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

Manufacturer Part Number: 24HS34-3008D
Motor Type: Unipolar/Bipolar
Step Angle: 1.8deg
Holding Torque(Bipolar): 3.1Nm(439oz.in)
Holding Torque(Unipolar): 2.2Nm(312oz.in)
Rated Current(Bipolar Serial): 2.1A
Rated Current(Bipolar Parallel): 4.2A
Rated Current(Unipolar): 3.0A
Phase Resistance(Bipolar Serial): 2.6ohms
Phase Resistance(Bipolar Parallel): 0.65ohms
Phase Resistance(Unipolar): 1.3ohms
Inductance(Bipolar Serial): 12.8mH±20%(1KHz)
Inductance(Bipolar Parallel): 3.2mH±20%(1KHz)
Inductance(Unipolar): 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 88mm
Shaft Diameter: Φ8mm
Front Shaft Length: 24mm
Rear Shaft Length: 15mm
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 600mm
Weight: 1.34kg

Connection

A+	A-	B+	B-
Red/Blue	Yellow/Black	White/Brown	Purple/Green

The applicable bracket for this motor is ST-M2.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar/Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	310
Holding Torque(oz.in)	439
Inductance(mH)	3.2
Phase Resistance(ohms)	0.65
Rated Current(A)	4.2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	88
Frame Size(mm)	Nema 23 (60 x 60)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	600
No. of Lead	8
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	1340
