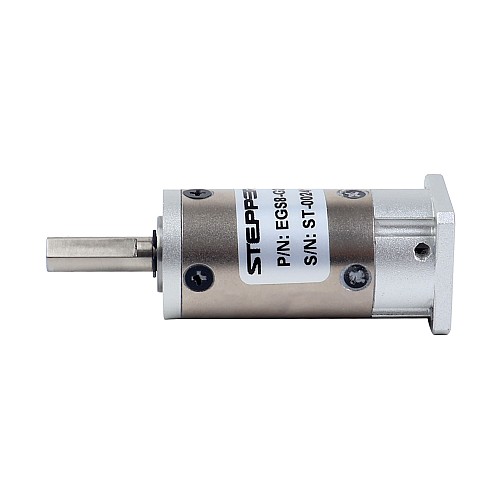

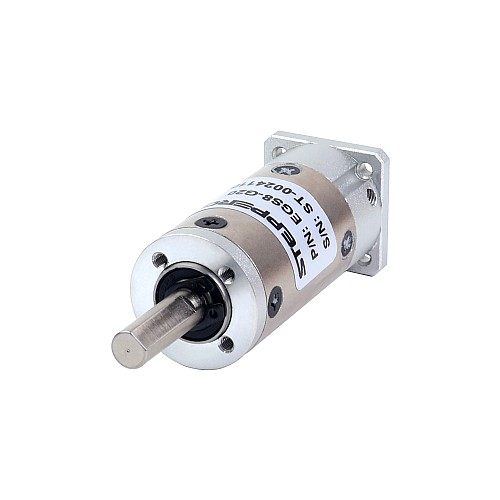

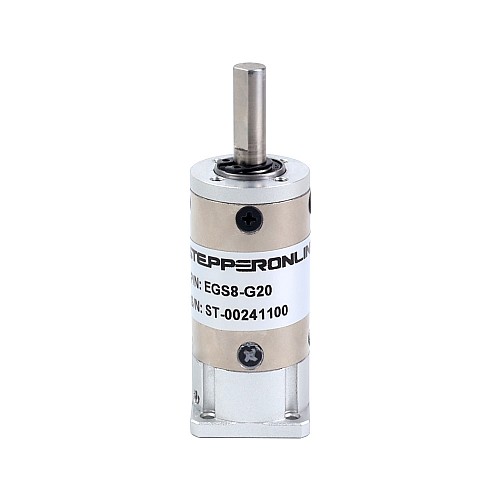

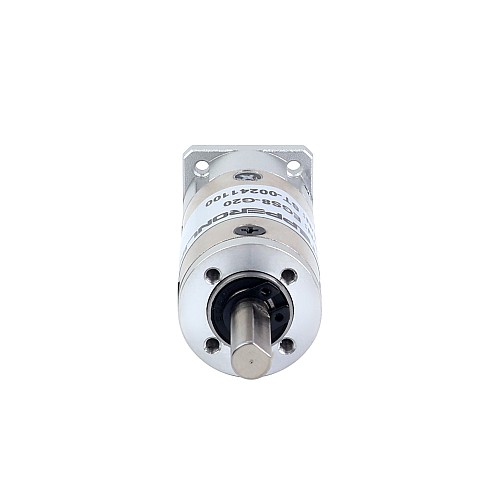

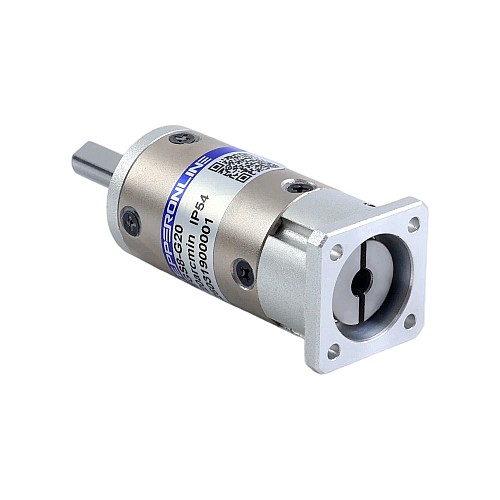

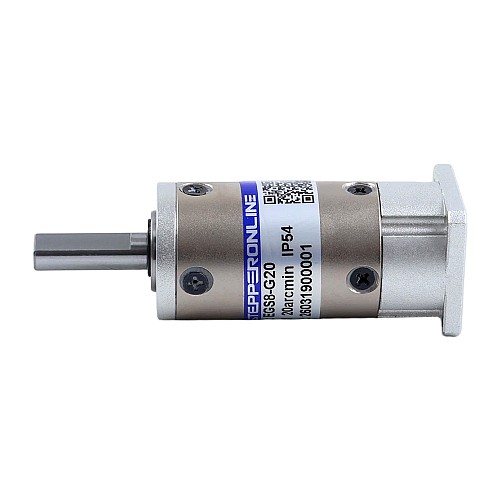

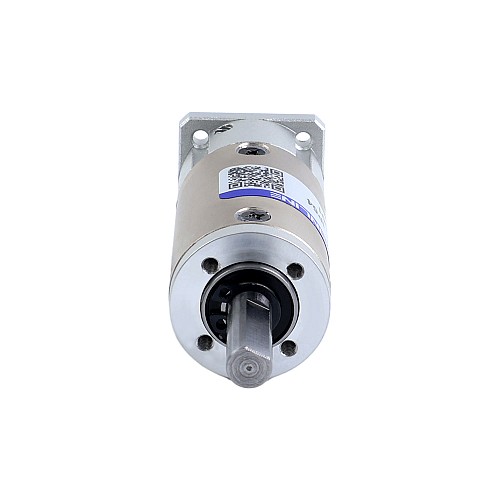

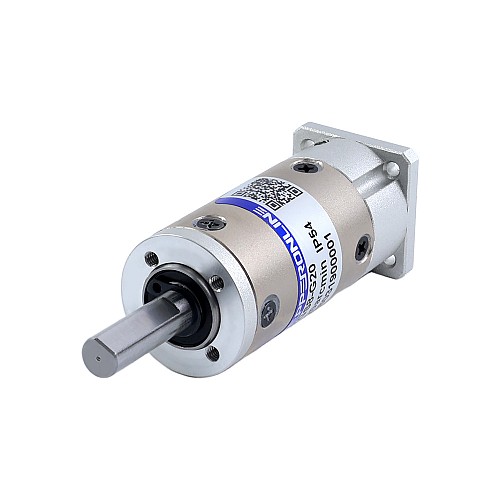

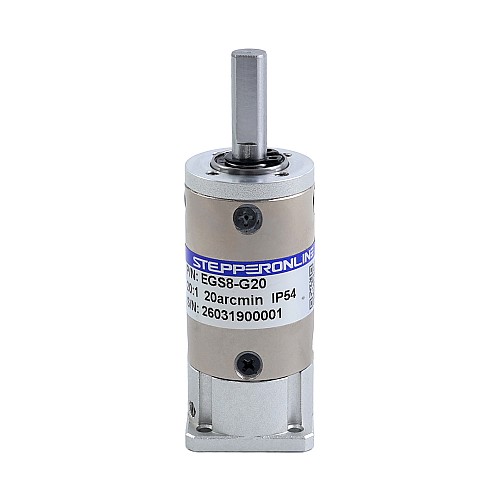

EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for Nema 8 Stepper Motor

0 reviews - Write a review

C$69.62

5 + C$66.01

10 + C$62.75

50 + C$59.79

100 + C$57.11

In Stock: 10000
Model: EGS8-G20
Gross Weight: 0.12kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is the smallest planetary gearbx for Nema 8 stepper motor with a gear ratio of 20:1, a maximum backlash of 20arc-min and an input disameter of 4mm. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Gearbox Specifications

Part Number: EGS8-G20
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 20:1
Efficiency: 94%
Backlash at No-load: <=20arcmin
Max.Permissible Torque: 4Nm(35.4lb-in)
Moment Permissible Torque: 8Nm(70.80lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 22 x 22mm
Gearbox Length: 48mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 19.5mm
Input Shaft Diameter: Φ4mm
Input Shaft Length: 6.5-10.5mm

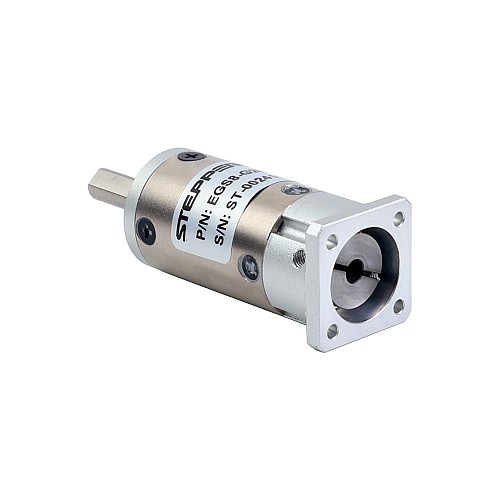

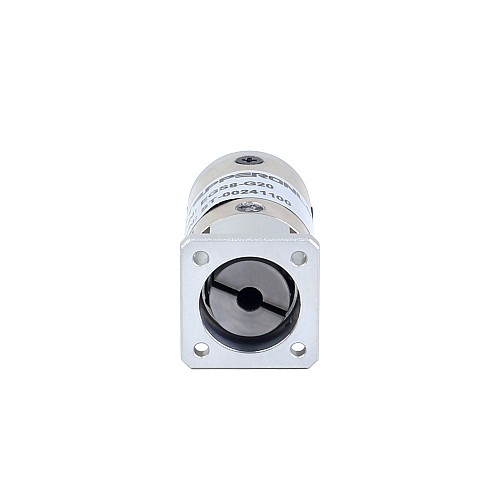

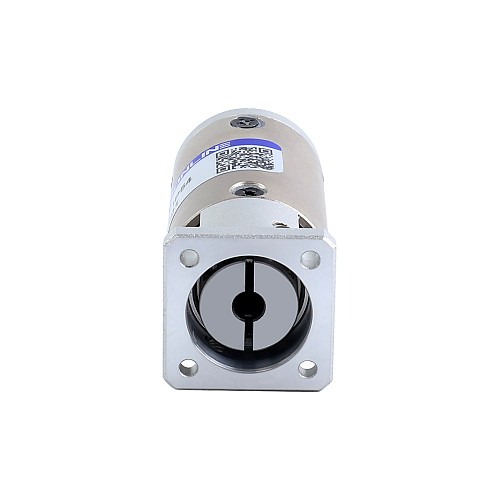

This in-line planetary gearbox has a built-in input shaft coupling and can only match Nema 8 stepper motors with a diameter of 4mm and a shaft length of 6.5-10.5mm.

Physical Specification
Backlash at No-load	<=20arcmin
Frame Size(mm)	22 x 22
Gear Material	Alloy Steel
Gear Ratio(xx:1)	20
Gearbox Length(mm)	48
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	4
Input Shaft Length(mm)	6.5 - 10.5
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 08 Stepper Motor
Output Shaft Diameter(mm)	6
Output Shaft Length(mm)	19.5
Output Shaft Type	D
Product Series	EG
