Name: I/O Control Stepper Driver 0.1-6.0A 24-110VDC for Nema 34 Stepper Motor
Brand: STEPPERONLINE
SKU: DM860IO
Price: 67.80 CAD
Availability: InStock

I/O Control Stepper Driver 0.1-6.0A 24-110VDC for Nema 34 Stepper Motor - DM860IO | StepperOnline CA

DM860IO

No. of Phase2

Product TypeDriver

Control ModesI/O Port

Encoder FeedbackNo (Open Loop)

Question

Downloads

DM860IO_pulse_stepper_driver_manual_V1.0.pdfPDF · 618.5KB STEPPERONLINE_Stepper_driver_testing_software_V1.2.3.exeEXE · 31.18MB

Same series

Model	No. of Phase	Product Type	Control Modes	Encoder Feedback	Price	Stock
3DM883	3	Driver	Pulse Mode	No (Open Loop)	C$119.36	In stock
DM1182	2	Driver	Pulse Mode	No (Open Loop)	C$201.81	In stock
DM2282T	2	Driver	Pulse Mode	No (Open Loop)	C$211.90	In stock
DM320T	2	Driver	Pulse Mode	No (Open Loop)	C$19.94	In stock
DM332T	2	Driver	Pulse Mode	No (Open Loop)	C$23.27	In stock
DM420PR	2	Driver	Modbus RS485	No (Open Loop)	C$67.80	In stock
DM420Y	2	Driver	Pulse Mode	No (Open Loop)	C$19.33	In stock
DM420Y-SALE	2	Driver	Pulse Mode	No (Open Loop)	C$17.27	In stock
DM422IO	2	Driver	I/O Port	No (Open Loop)	C$32.20	In stock
DM422T	2	Driver	Pulse Mode	No (Open Loop)	C$42.08	In stock
DM542	2	Driver	Pulse Mode	No (Open Loop)	C$67.03	In stock
DM542T	2	Driver	Pulse Mode	No (Open Loop)	C$28.49	In stock
DM542TE	2	Driver	Pulse Mode	No (Open Loop)	C$23.72	In stock
DM542Y	2	Driver	Pulse Mode	No (Open Loop)	C$24.40	In stock
DM556	2	Driver	Pulse Mode	No (Open Loop)	C$77.85	Backorder
DM556EC	2	Driver	EtherCAT	No (Open Loop)	C$76.27	In stock
DM556IO	2	Driver	I/O Port	No (Open Loop)	C$49.16	In stock
DM556PR	2	Driver	Modbus RS485	No (Open Loop)	C$67.80	In stock
DM556RS	2	Driver	Modbus RS485	No (Open Loop)	C$103.79	In stock
DM556T	2	Driver	Pulse Mode	No (Open Loop)	C$33.23	In stock
DM556T-USED	2	Driver	Pulse Mode	No (Open Loop)	C$19.94	In stock
DM556TE	2	Driver	Pulse Mode	No (Open Loop)	C$26.10	In stock
DM556Y	2	Driver	Pulse Mode	No (Open Loop)	C$27.12	In stock
DM860EC	2	Driver	EtherCAT	No (Open Loop)	C$96.61	In stock
DM860I	2	Driver	Pulse Mode	No (Open Loop)	C$48.53	In stock
DM860IO	2	Driver	I/O Port	No (Open Loop)	C$67.80	In stock
DM860PR	2	Driver	Modbus RS485	No (Open Loop)	C$83.04	In stock
DM860T	2	Driver	Pulse Mode	No (Open Loop)	C$56.17	In stock
DM860TE	2	Driver	Pulse Mode	No (Open Loop)	C$43.36	In stock
DM860Y	2	Driver	Pulse Mode	No (Open Loop)	C$45.76	In stock

View all in category

I/O Control Stepper Driver 0.1-6.0A 24-110VDC for Nema 34 Stepper Motor

This is a stepper driver support I/O (Input/Output) control modes. It delivers superior performan... Read More

0 reviews • Write a review

from

C$67.80

5 or more: C$65.48

10 or more: C$63.31

50 or more: C$61.29

100 or more: C$59.39

Select a country to see live inventory

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a stepper driver support I/O (Input/Output) control modes. It delivers superior performance with a current range of 0.1–6.0A and an operating voltage of 24–110VDC, making it ideal for Nema 34 stepper motors.
This advanced 32-bit DSP-controlled stepper driver delivers high performance at competitive cost. It features 3 opto-isolated digital inputs (5V/24V compatible) with flexible wiring options. The innovative resonance suppression algorithm ensures smooth low-to-mid speed operation, while precise current control minimizes motor heating. Dual start-stop modes and comprehensive protection (over-voltage/current, error equalization) ensure reliable operation for industrial automation and precision motion control.

Key Features

Next-generation 32-bit DSP control technology delivering superior performance-to-cost ratio
Three opto-isolated digital inputs with 5V/24V compatibility, supporting both sinking and sourcing configurations
Advanced resonance suppression algorithm ensures exceptional low-to-medium speed stability
Precision current control algorithm minimizes torque ripple and motor temperature rise

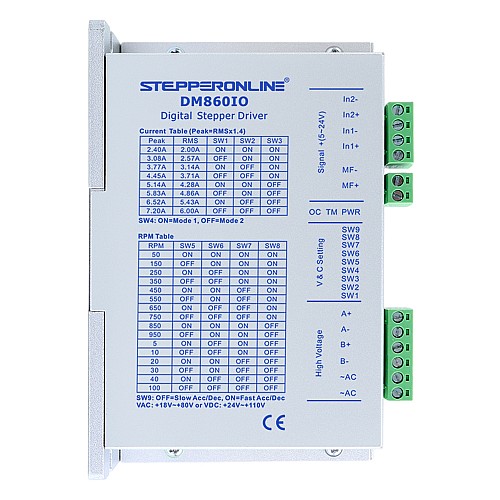

Configurable current settings (8 levels) and speed profiles (16 levels)
PC configuration software enables real-time adjustment of operating current, velocity, and acceleration/deceleration parameters
Dual-mode start/stop control for flexible operation
Automatic motor parameter identification for quick setup
Position retention with phase memory function
Programmable standstill current (default: 50% of running current) via host computer
Comprehensive protection including over-voltage, under-voltage, over-current, and position error monitoring

Electrical Specifications

Continuous Output Current: 0.1 - 6.0A
Input Voltage: 24 - 110VDC(Typical 48V)
Logic Input Current: 7 - 20mA(Typical 10mA)
Isolation Resistance: 50MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

Cooling: Natural Cooling
Environment: Stay away from other heating equipment and avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust
Temperature: 0℃ - 50℃
Humidity: 40%RH - 90%RH(non-condensation)
Vibration: 10 - 55Hz/0.15mm
Storage Temperature: -20℃ - 70℃

Product Type
Product Type	Driver
Electrical Specification
Control Modes	I/O Port
Encoder Feedback	No (Open Loop)
Input Voltage Reference(V)	24 - 110DC
Input Voltage(V)	24 - 110DC
Max. Output Current RMS(A)	6.0
No. of Phase	2
Physical Specification
Installation Type	Split
