LA12 Series Belt Driven Max. Horizontal Payload 35kg Stroke 500mm for Closed Loop Stepper Motor

0 reviews - Write a review

C$523.64

5 + C$510.04

10 + C$497.21

50 + C$485.08

100 + C$473.61

In Stock: 10000
Model: LA12-34LL403-500
Gross Weight: 17.08kg

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

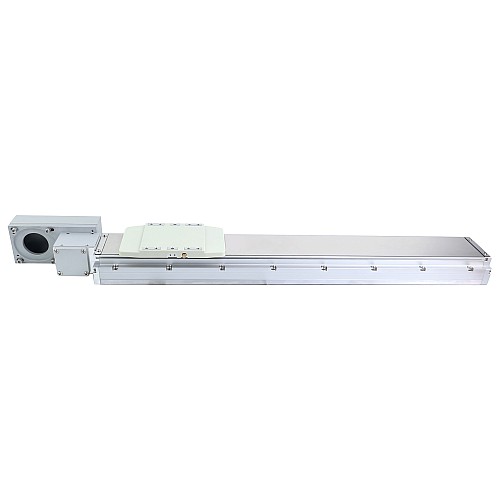

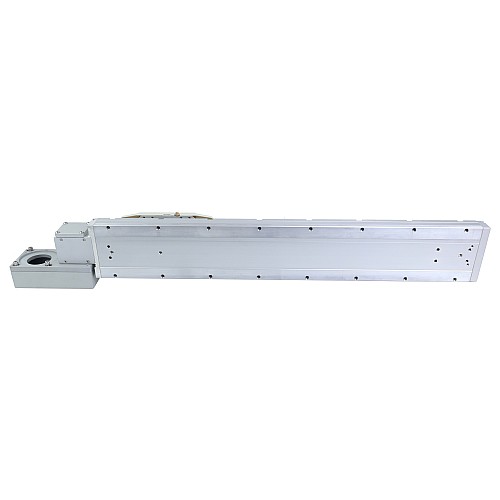

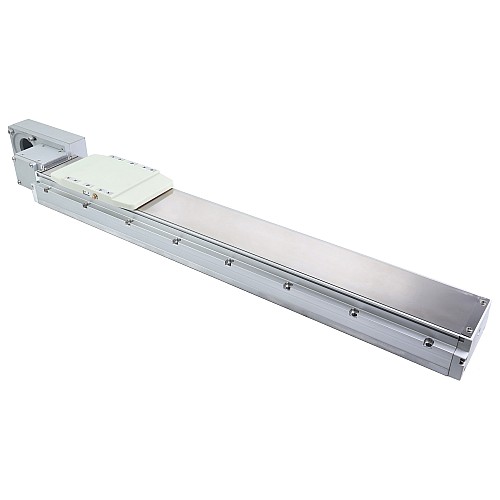

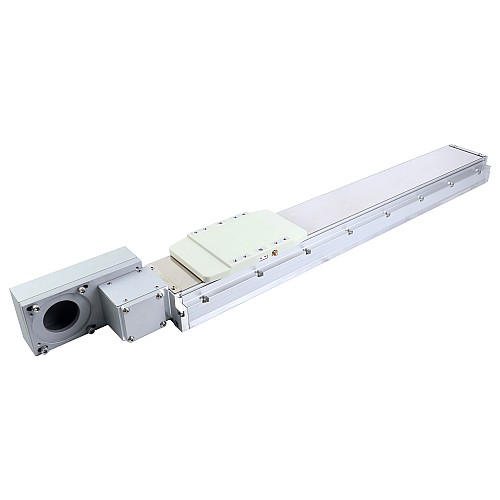

This LA12 series belt driven dustproof linear actuator offers a maximum horizontal payload of 35kg(77.16lb), a stroke length of 500mm(1.64ft) and maximum speed of 666mm/s(2.19ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LA12-34LL403-500
Position Accuracy: ± 0.04mm
Lead: 40mm(0.13ft)
Maximum Speed: 666mm/s(2.19ft/s)
Maximum Horizontal Payload: 35kg(77.16lb)
Rated Thrust: 61N

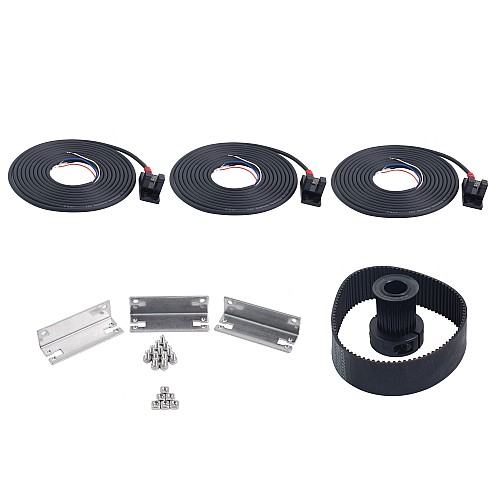

Sensor Type: NPN
Number of Sensors: 3
Belt Width: 22mm
Motor Frame: Nema 34 Closed Loop Stepper Motor
Stroke Length: 500mm(1.64ft)
Input Shaft Length: 37mm
Input Shaft Diameter: 14mm

Adapting Motors: Standard NEMA 34 closed-loop stepper motor with a shaft diameter of 14mm and a shaft length of 37mm.

Physical Specification
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	37
Inventory Method	Dedicated Inventory
Lead(mm/ft)	40/0.13
Linear Motor Type	Built-in belt
Max. Horizontal Payload(kg/lb)	35/77.16
Max. Speed(ft/s)	2.19
Max. Speed(mm/s)	666

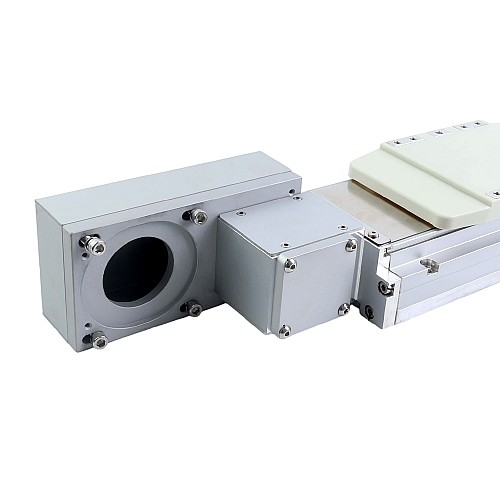

Motor Mounting Flange	Nema 34 Closed Loop Stepper Motor
Motor Mounting Position	Left Fold
Rated Thrust(N)	61
Stroke Length(mm/ft)	500/1.64
Transmission Method	Belt Driven
