LA8 Series Belt Driven Max. Horizontal Payload 25kg Stroke 500mm

0 reviews - Write a review

C$278.50

5 + C$270.37

10 + C$262.70

50 + C$255.45

100 + C$248.59

In Stock: 200
Model: LA8-24LL483-500
Gross Weight: 9.36kg

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

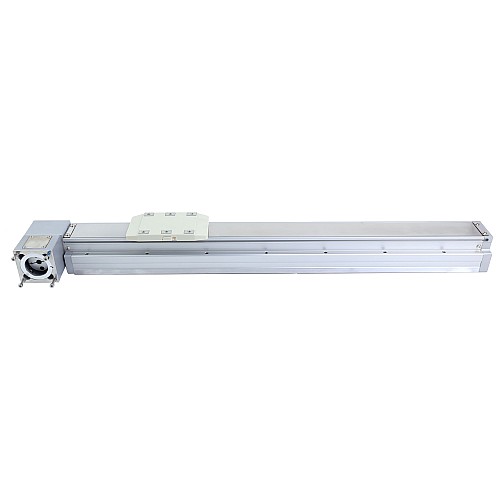

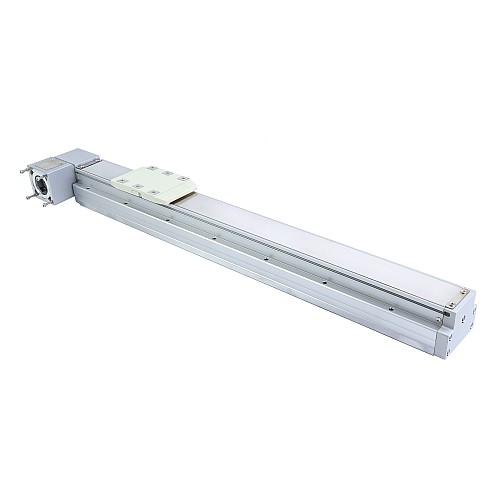

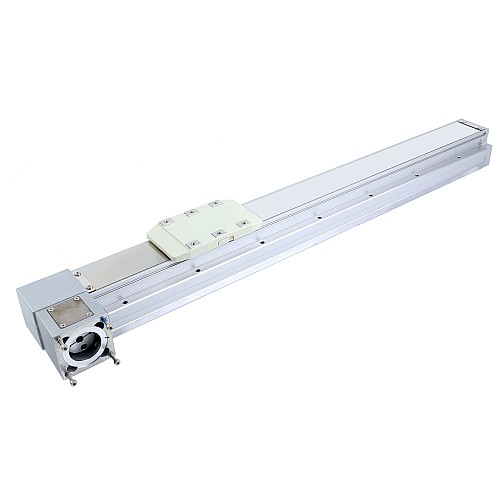

This LA8 series belt driven dustproof linear actuator offers a maximum horizontal payload of 25kg(55.12lb), a stroke length of 500mm(1.64ft) and maximum speed of 400mm/s(1.31ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LA series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LA8-24LL483-500
Position Accuracy: ± 0.04mm
Lead: 48mm(0.16ft)
Maximum Speed: 400mm/s(1.31ft/s)
Maximum Horizontal Payload: 25kg(55.12lb)
Rated Thrust: 61N
Sensor Type: NPN
Number of Sensors: 3
Belt Width: 15mm
Motor Frame: Nema 24 Closed Loop Stepper Motor
Stroke Length: 500mm(1.64ft)

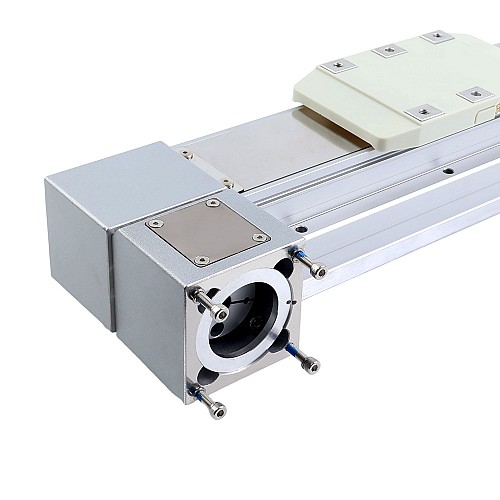

Input Shaft Length: 30mm
Input Shaft Diameter: 8mm

Adapting Motors: Standard NEMA 24 closed-loop stepper motors with an 8mm shaft diameter, 30mm shaft length, and 36mm boss diameter, such as the 24HS34A-5004D-E1000 and 24HS40A-5004D-E1000.

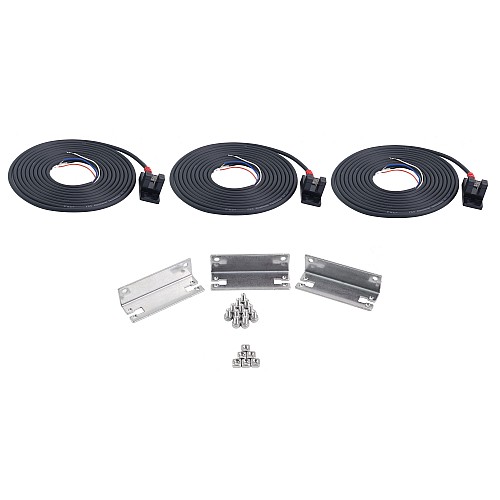

Please note: this linear actuator comes standard with 3 photoelectric sensors. If more are needed, they can be purchased via this link.

Physical Specification
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	30
Inventory Method	Dedicated Inventory
Lead(mm/ft)	48/0.16
Linear Motor Type	Built-in belt
Max. Horizontal Payload(kg/lb)	25/55.12
Max. Speed(ft/s)	1.31
Max. Speed(mm/s)	400
Motor Mounting Flange	Nema 24 Closed Loop Stepper Motor
Motor Mounting Position	Left Fold
Rated Thrust(N)	61
Stroke Length(mm/ft)	500/1.64
Transmission Method	Belt Driven
