LK2A40 Series Ball Screw Driven Linear Module Max. Speed 500mm/s Position Accuracy 0.003mm Stroke 86mm
0 reviews - Write a review
C$227.32
5 + C$224.39
10 + C$221.53
50 + C$218.75
100 + C$216.02
  • In Stock: 200
  • Model: LK2A40-17DL050-086
  • Gross Weight: 1.00kg

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product

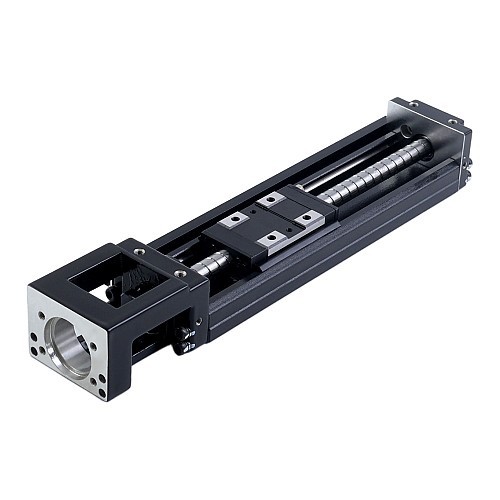

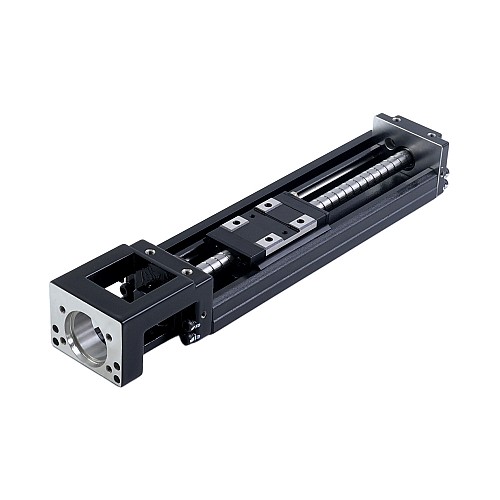

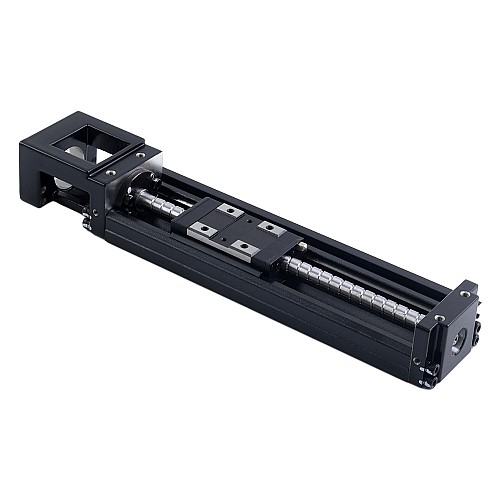

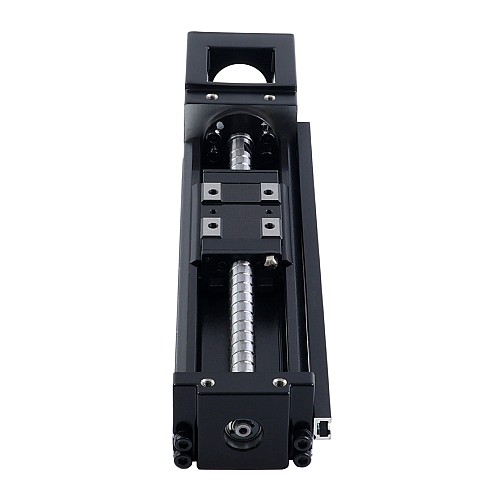

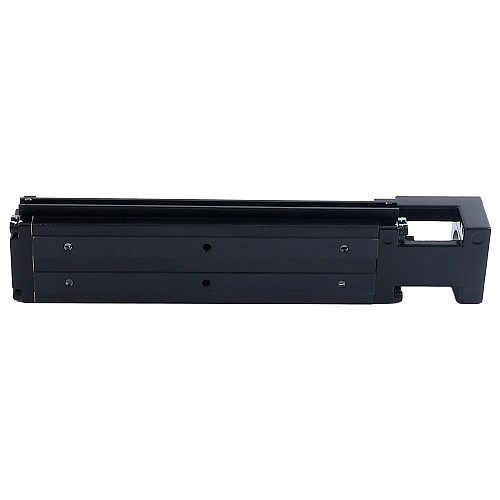

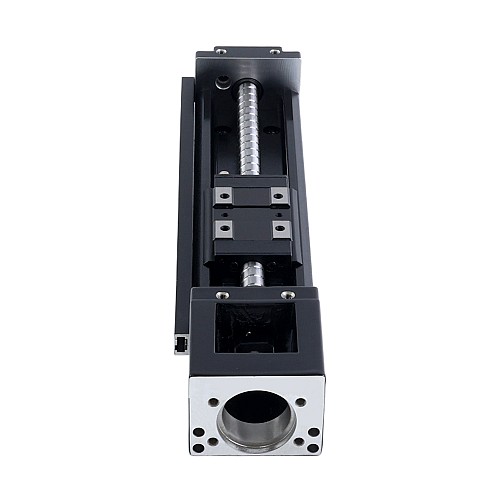

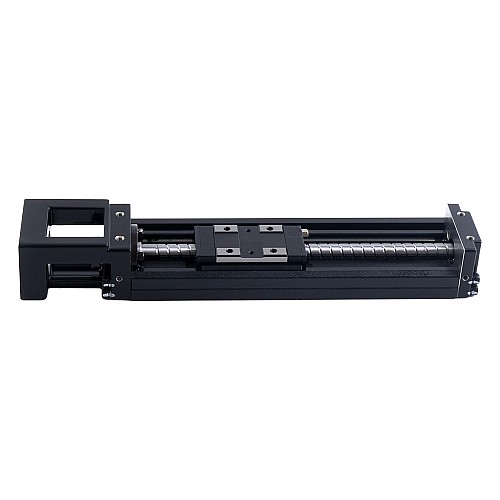

The LK2A40 series ball screw driven linear actuator delivers a positioning accuracy of 0.003mm, with a ball screw lead of 5mm(0.0164ft), a stroke length of 86mm(0.28ft), and a maximum speed of 500mm/s(1.64ft/s).

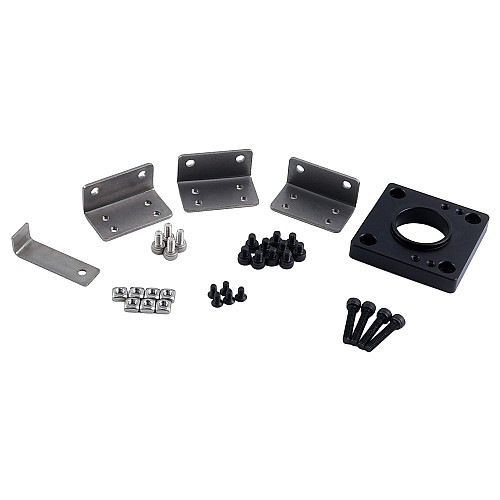

The LK2A series ball screw driven linear actuator adopts a stripped-down architecture that eliminates unnecessary components—such as sensors, protective covers, and couplings—resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces weight and installation footprint while delivering reliable linear motion with simplified assembly. To support application flexibility, it features sensor mounting rails, sensor fixing brackets, and light-blocking plates on the sliders. Engineered for applications demanding efficiency and economy, the LK2A provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A40-17DL050-086
  • Screw Type: Ball Screw
  • Stroke Length: 86mm(0.28ft)
  • Position Accuracy: ± 0.003mm
  • Ball Screw Lead: 5mm(0.0164ft)
  • Maximum Speed: 500mm/s(1.64ft/s)
  • Ball Screw Diameter: Φ8mm
  • Ball Screw Grade: C5
  • Ball Screw Basic Dynamic Rated Load: 1374N
  • Ball Screw Basic Static Rated Load: 2657N
  • Linear Guide Basic Dynamic Rated Load: 3920N
  • Linear Guide Basic Static Rated Load: 6468N
  • Motor Frame: Nema 17 Closed Loop Stepper Motor

Adapting Motors: Standard NEMA 17 closed-loop stepper motor with a shaft diameter of 5mm and a shaft length of 24mm.

Please note: this linear actuator does not include a sensor, which can be purchased via this link. And the compatible coupling is MP1926-5-5.
Physical Specification
Lead(mm/ft) 5/0.0164
Linear Motor Type Steel Body
Max. Speed(ft/s) 1.64
Max. Speed(mm/s) 500
Motor Mounting Flange Nema 17 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Stroke Length(mm/ft) 86/0.28
Transmission Method Ball Screw Driven
