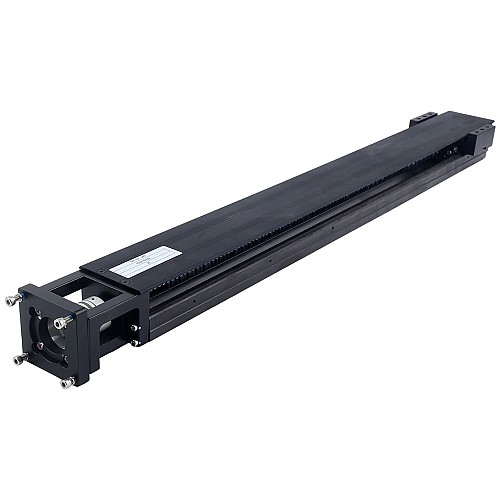

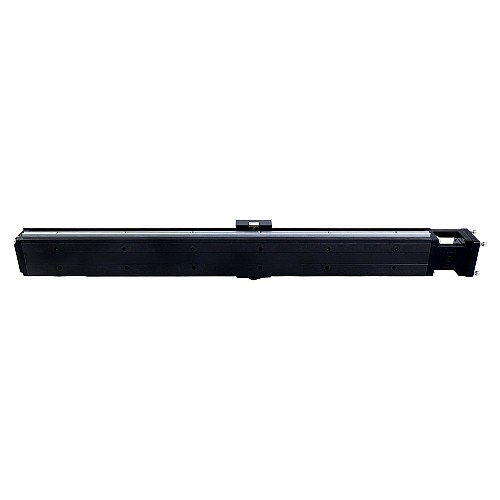

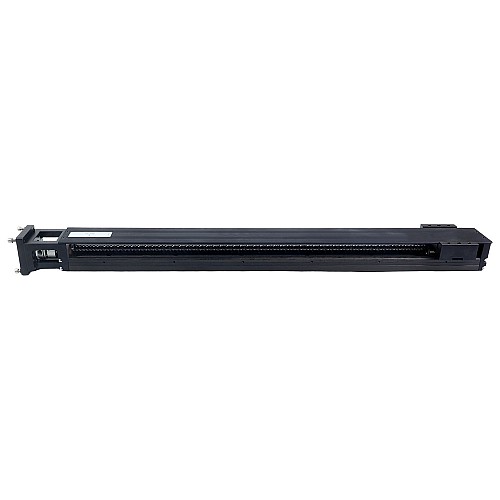

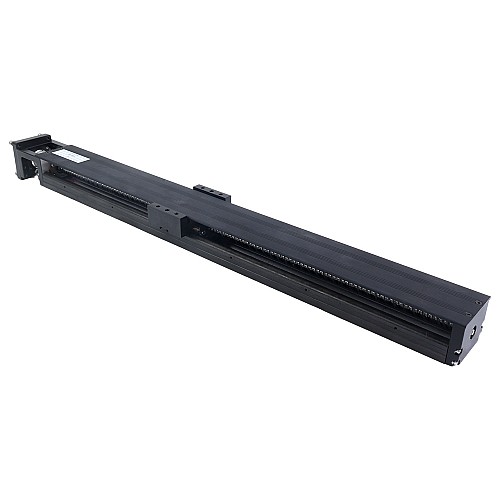

LK60 Series Ball Screw Driven Max. Horizontal/Vertical Payload 20kg/6kg Stroke 510mm for Closed Loop Stepper Motor

This LK60 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 20kg(44.09lb) and maximum vertical payload of 6kg(13.23lb), a stroke length of 510mm(1.67ft) and maximum speed of 166m/s(0.54ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

• Part Number: LK60-23DL103-510
• Screw Type: Ball Screw
• Position Accuracy: ± 0.01mm
• Ball Screw Lead: 10mm(0.033ft)
• Maximum Speed: 166m/s(0.54ft/s)
• Maximum Horizontal Payload: 20kg(44.09lb)
• Maximum Vertical Payload: 6kg(13.23lb)
• Rated Thrust: 170N
• Sensor Type: NPN
• Number of Sensors: 3
• Ball Screw Grade: C7
• Ball Screw Diameter: Φ12mm
• Motor Frame: Nema 23 Closed Loop Stepper Motor
• Stroke Length: 510mm(1.67ft)
• Input Shaft Length: 21mm
• Input Shaft Diameter: 8mm
