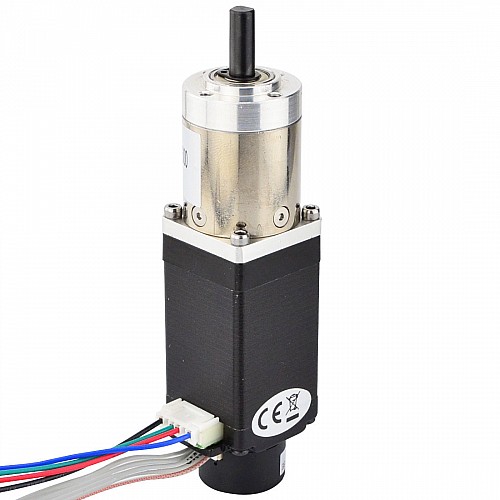

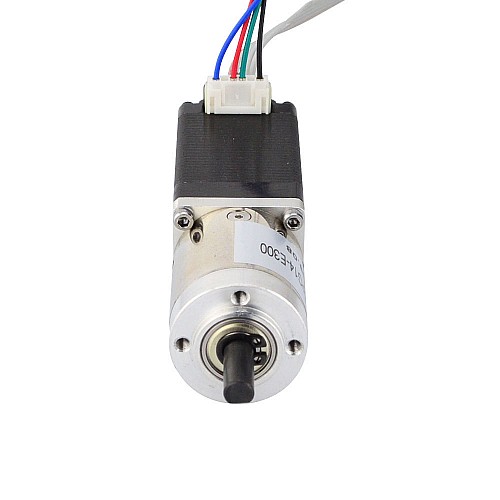

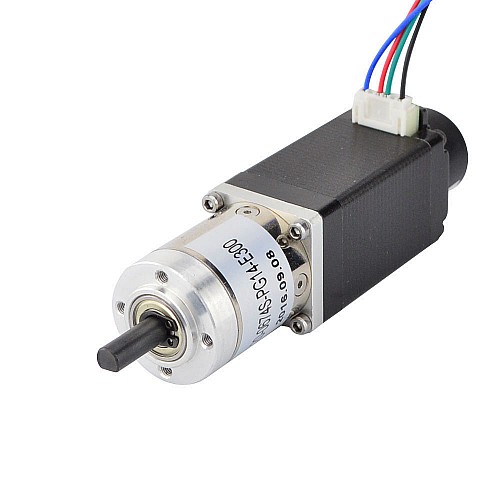

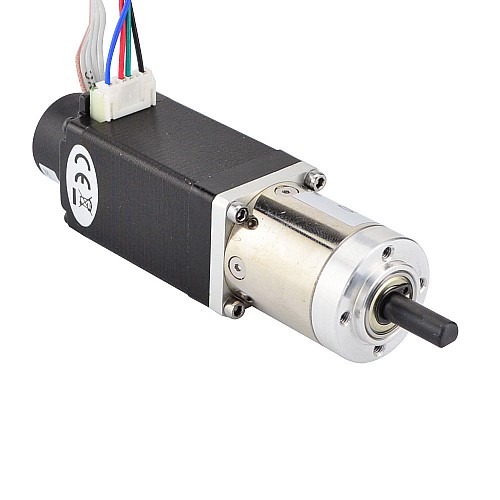

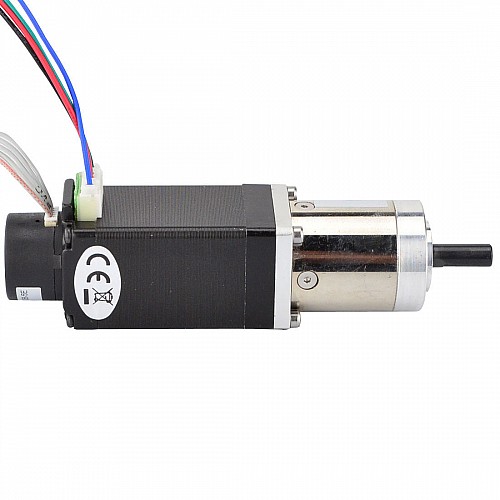

Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR
C$91.95
5 + C$87.62
10 + C$83.68
50 + C$80.08
100 + C$76.78
- In Stock: Pre-order
- Model: 11HS20-0674S-PG14-E300
- Gross Weight: 1.50kg
- Certificated: ISO, CE, UKCA, RoHS
Sold: 10
Click country for real-time stock
This product has a minimum quantity of 10
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.
Motor Specification
- Manufacturer Part Number: 11HS20-0674S-PG14-E300
- Motor Type: Bipolar Stepper
- Frame Size: 28 x 28mm
- Motor Length: 51mm
- Step Angle without Gearbox: 1.8deg
- Holding Torque without Gearbox: 0.14Nm(19.8oz.in)
- Rated Current/phase: 0.67A
- Phase Resistance: 12ohms
- Voltage: 8.04V
- Inductance: 6.5mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specifications
- Gearbox Type: Planetary
- Gearbox Length: 35mm
- Gear Ratio: 13.73:1
- Efficiency: 80%
- Shaft Diameter: Φ6mm
- Shaft Length: 18mm
- D-Cut length: 12mm
- Backlash at No-load: <=3deg
- Max.Permissible Torque: 3Nm(424.8.oz.in)
- Moment Permissible Torque: 5Nm(708.1oz.in)
- Shaft Maximum Axial Load: 5N
- Shaft Maximum Radial Load: 25N
Encoder Specification
- Encoder Type: Optical Incremental
- Driving Voltage : 5V
- Output current : 50mA
- Resolution: 300ppr
- Output Signal: 2Channels
- Bore Diameter: Φ4mm
- Output Frequency: ≤1MHz
- Running Speed: ≤5000rpm
Connection
PIN |
1 |
2 |
3 |
4 |
Motor |
A+ |
A- |
B+ |
B- |
PIN |
1 |
2 |
3 |
4 |
5 |
Encoder |
0V |
N.C |
Ch B |
+5V |
Ch A |
Product Type | |
Product Type | Motor w/ Encoder & Brake & Gearbox |
Electrical Specification | |
Encoder Resolution | 300PPR |
Encoder Type | Optical Incremental |
Holding Torque(Ncm) | 14 |
Inductance(mH) | 6.5 |
Output Circuit Type | Push-Pull (Single-Ended) |
Output Signal Channels | 2 |
Phase Resistance(ohms) | 12 |
Rated Current(A) | 0.67 |
Stepper Motor with | Encoder/Gearbox |
Physical Specification | |
Body Length(mm) | 51 |
Frame Size(mm) | Nema 11 (28 x 28) |
Gear Ratio(xx:1) | 14 |
Gearbox Type | PG Series Planetary Gearbox |
Inventory Method | Dedicated Inventory |
IP Rating | 40 |
Output Shaft Type | D |
Shaft Diameter(mm) | 6 |
Shaft Length(mm) | 18 |
