Nema 11 External 51mm Stack 0.67A Lead 2mm(0.07874") Length 100mm

Discontinued

Nema 11 External 51mm Stack 0.67A Lead 2mm(0.07874") Length 100mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11E20S0674AA2-100RS
Gross Weight: 0.70kg
Certificated: ISO, CE, RoHS

Sold: 181

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

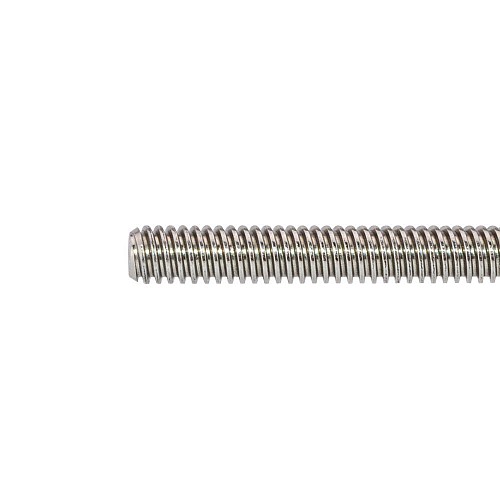

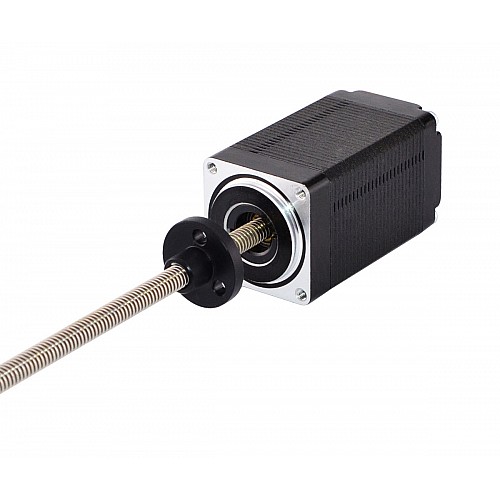

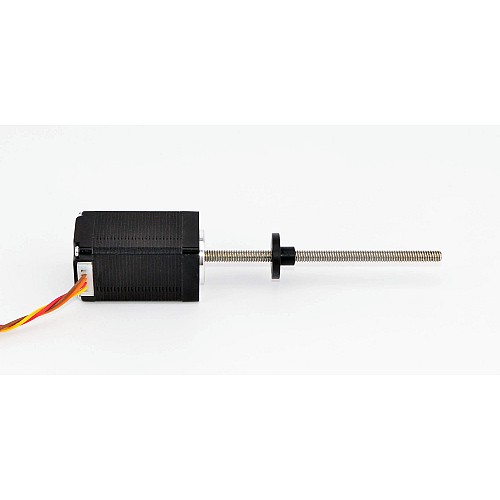

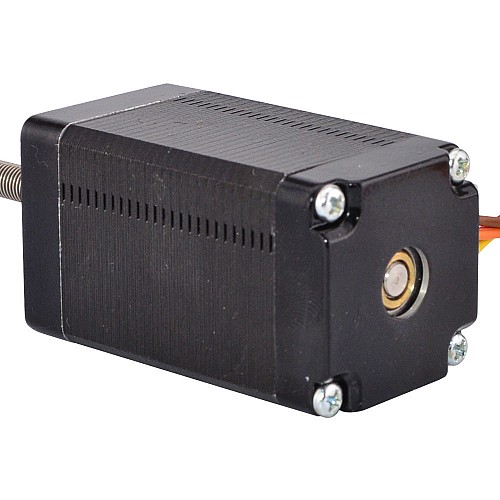

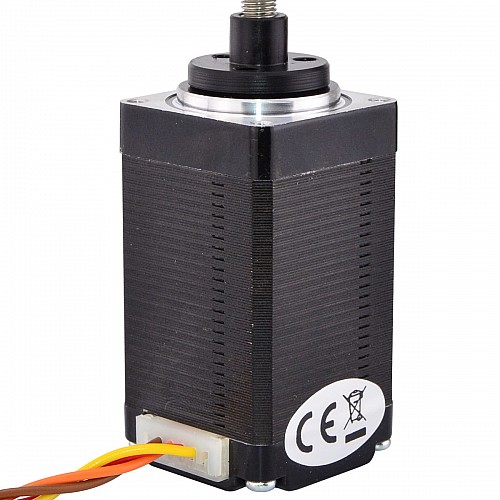

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 56mm 1.8 degree 2A Nema 23 stepper motor. It was integrated with 100mm Tr5x2 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 11E20S0674AA2-100RS(11E20S0674AA-100RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Holding Torque: 0.12Nm(16.99oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 9.2ohms
Voltage: 6.2V
Inductance: 8.0mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 51mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ5mm(0.1969")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 304mm
Weight: 220g

Connection

A+	A-	B+	B-
Red	Brown	Yellow	Orange

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	12
Holding Torque(oz.in)	16.99
Inductance(mH)	5.7
Phase Resistance(ohms)	9.2
Rated Current(A)	0.67
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	51
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	304
Lead Screw Diameter(mm)	5
Lead Screw Length(mm)	100
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	External(Acme)
No. of Lead	4
