Nema 14 Bipolar 0.9deg 5Ncm(7.08oz.in) 0.5A 35x35x20mm 4 Wires

Hot

Nema 14 Bipolar 0.9deg 5Ncm(7.08oz.in) 0.5A 35x35x20mm 4 Wires

4 reviews - Write a review

C$14.96

5 + C$14.25

10 + C$13.62

50 + C$13.04

100 + C$12.49

In Stock: 10000
Model: 14HM08-0504S
Gross Weight: 0.15kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 1882

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

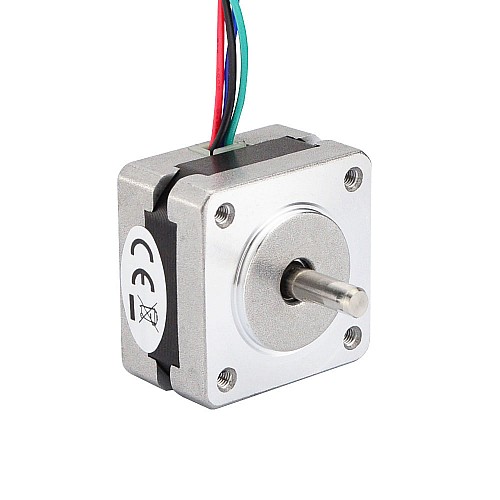

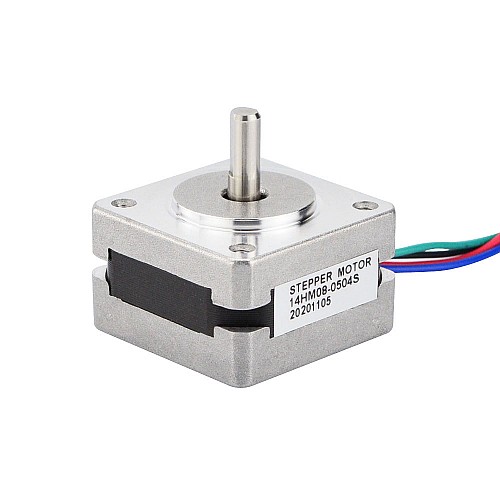

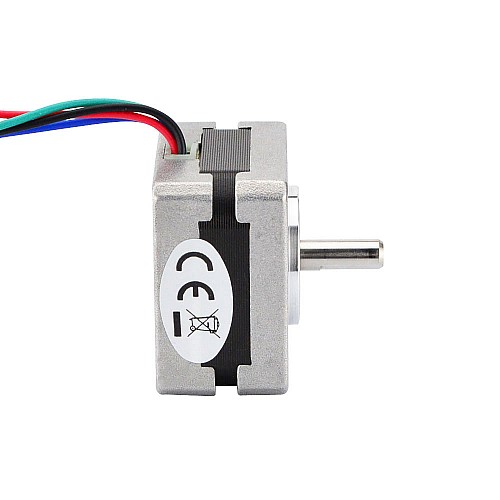

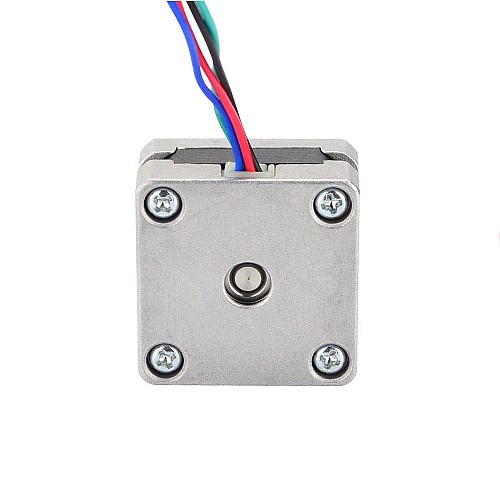

This bipolar Nema 14 stepper motor with step angle 0.9deg and size 35x35x20mm. It has 4 wires, each phase draws 0.5A, with holding torque 5Ncm(7.08oz.in).

Electrical Specification

Manufacturer Part Number: 14HM08-0504S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 5Ncm(7.08oz.in)
Rated Current/phase: 0.5A
Phase Resistance: 10ohms
Inductance: 8.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 20mm
Shaft Diameter: Φ5mm
Shaft Length: 15mm
D-cut Length: 10mm
Number of Leads: 4
Cable Length: 300mm
Weight: 90g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	5
Holding Torque(oz.in)	7.08
Inductance(mH)	8.2
Phase Resistance(ohms)	10
Rated Current(A)	0.5
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	20
Cable Length(mm)	300
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	15
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	90
