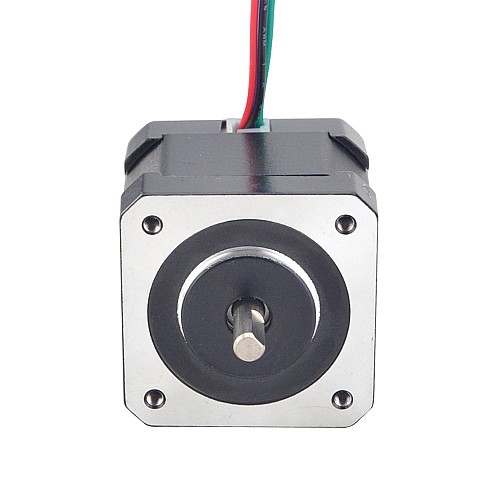

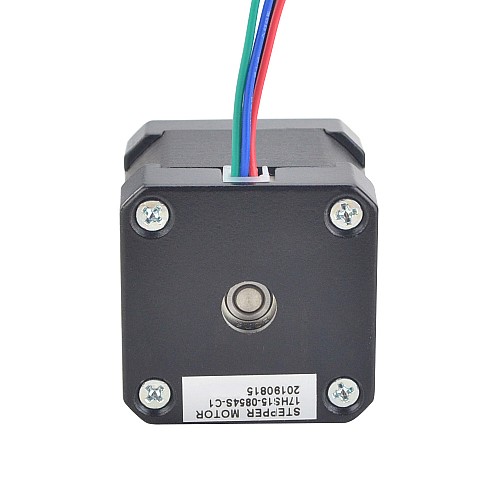

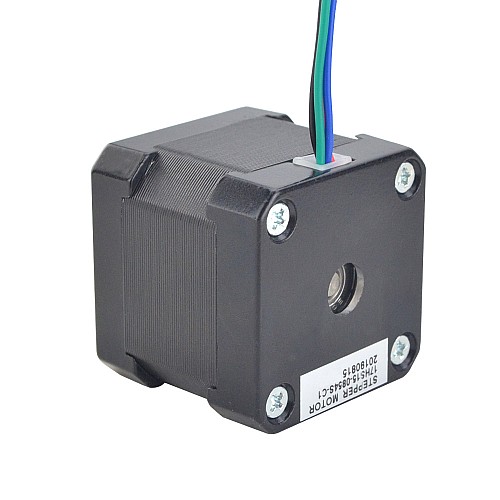

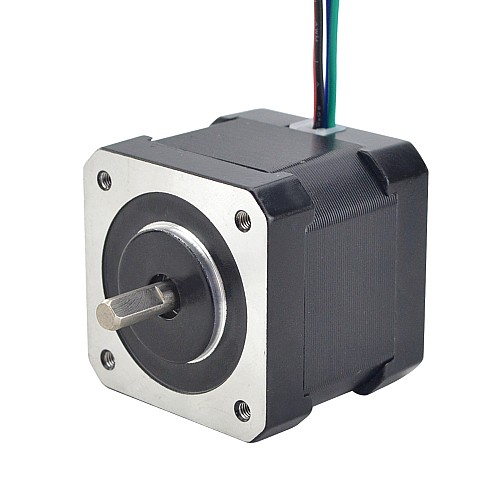

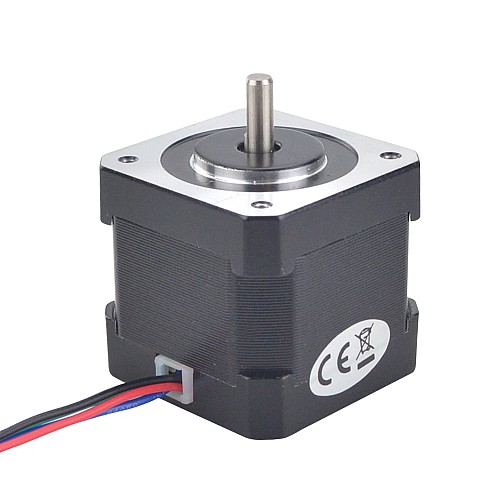

Nema 17 Bipolar 1.8deg 36Ncm(51oz.in) 0.85A 42x42x39mm 4 Wires

0 reviews - Write a review

C$15.91

In Stock: Pre-order
Model: 17HS15-0854S-C1
Gross Weight: 0.36kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws 0.85A at 5.4V, with holding torque 36Ncm(51oz.in).

Electrical Specification

Manufacturer Part Number: 17HS15-0854S-C1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 36Ncm(51oz.in)
Rated Current/phase: 0.85A
Phase Resistance: 6.3ohms
Inductance: 10mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 39mm
Shaft Diameter: Φ5mm
Shaft Length: 14mm
D-Cut Length: 10mm
Number of Leads: 4
Lead Length: 400mm
Weight: 280g

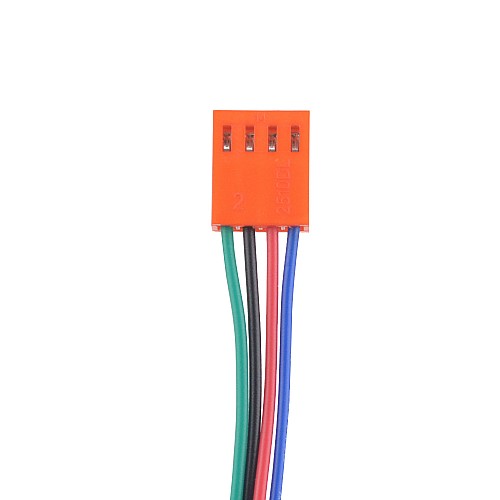

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	36
Holding Torque(oz.in)	51
Inductance(mH)	10
Phase Resistance(ohms)	6.3
Rated Current(A)	0.85
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	39
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Shared Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	14
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	280
