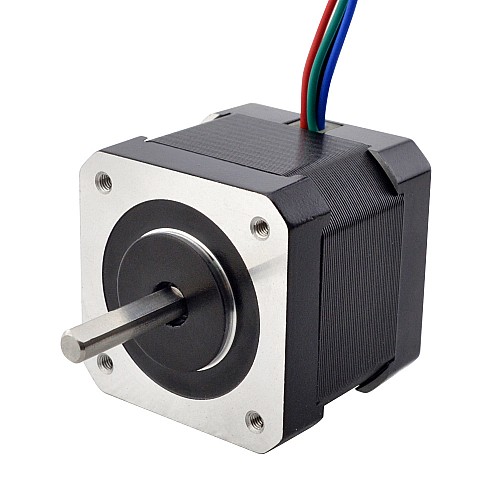

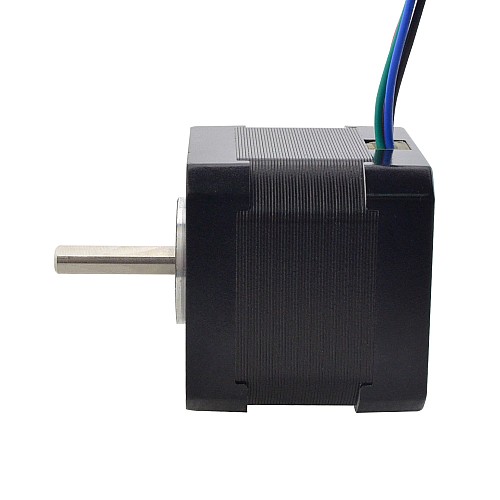

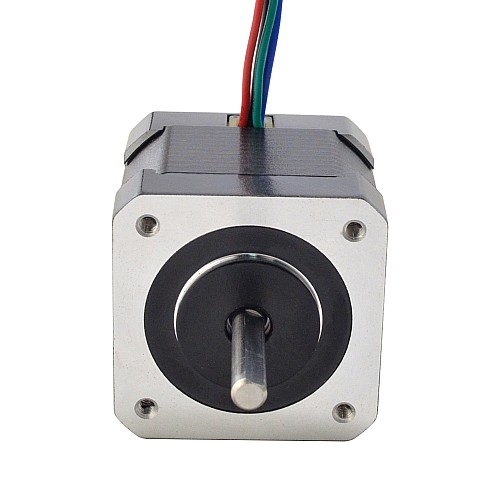

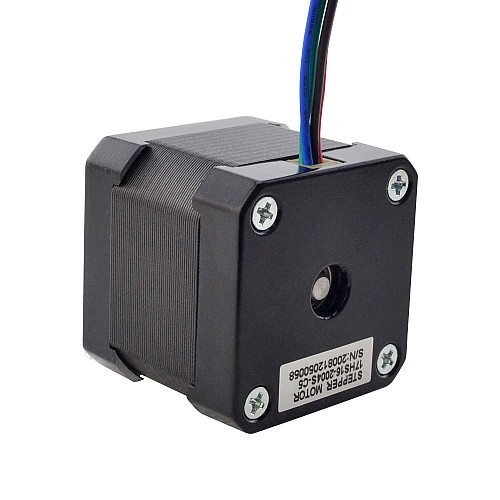

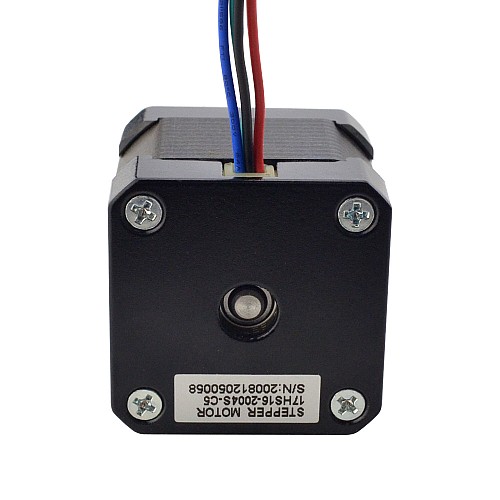

Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires w/ 2300mm(91") Cable

Discontinued

Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires w/ 2300mm(91") Cable

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17HS16-2004S-C5
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

This bipolar Nema 17 stepper motor is one of the most popular models, it has 4 wires with 2300mm(91inch) cable, each phase draws current 2.0A with torque 45Ncm(63.74oz.in).

Electrical Specification

Manufacturer Part Number: 17HS16-2004S-C5
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 2A
Phase Resistance: 1.5ohms
Inductance: 2.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 23mm
D-cut Length: 21mm
Number of Leads: 4
Lead Length: 2300mm(91inch)
Weight: 310g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS16-2004S1.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Inductance(mH)	2.6
Phase Resistance(ohms)	1.5
Rated Current(A)	2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	2300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	23
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	310
