Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR

Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR - 17E13S1684MB4-200RS-OE1K | StepperOnline CA
17E13S1684MB4-200RS-OE1K
Rated Current(A)1.68
Linear Motor TypeExternal (Trapezoidal)
Lead Travel/Revolution(mm)8
Lead Travel/Step(mm)0.04
Question

Downloads

17E13S1684MB4-200RS-OE1K_Full_Datasheet.pdfPDF · 216.29KB
Same series
ModelRated Current(A)Linear Motor TypeLead Travel/Revolution(mm)Lead Travel/Step(mm)PriceStock
11E13S0754AA2-100RS0.75External (Trapezoidal)20.01C$42.56In stock
17E13S0404DB2-200RS0.4External (Trapezoidal)40.02C$46.11In stock
17E13S0404DB4-100RS0.4External (Trapezoidal)40.02C$24.11In stock
17E13S0404DB4-150RS0.4External (Trapezoidal)40.02C$28.01In stock
17E13S0404MB2-032RB0.4External (Trapezoidal)80.04C$31.91Backorder
17E13S0404MB4-032RB0.4External (Trapezoidal)80.04C$28.01In stock
17E13S0404MB4-150RS0.4External (Trapezoidal)80.04C$26.77In stock
17E13S0404MB4-200RS0.4External (Trapezoidal)80.04C$28.83In stock
17E13S0404MB4-300RS0.4External (Trapezoidal)80.04C$32.94In stock
17E13S1684MB4-200RS-OE1K1.68External (Trapezoidal)80.04C$69.64In stock
17E15S1684DB4-350RS-H1.68External (Trapezoidal)40.02C$72.72In stock
17E16S1504AB2-310RS1.5External (Trapezoidal)20.01C$18.72In stock
17E19S0406AB2-300RA0.4External (Trapezoidal)20.01C$65.61In stock
17E19S0406AB2-330RA0.4External (Trapezoidal)20.01C$65.61Backorder
17E19S1684AB4-330RA1.68External (Trapezoidal)20.01C$67.14In stock
17E19S1684MB4-200RS1.68External (Trapezoidal)80.04C$26.91In stock
17E19S1684MB4-200RS-AR41.68External (Trapezoidal)80.04C$94.83In stock
17E19S1684MB4-300RS1.68External (Trapezoidal)80.04C$25.93In stock
17E19S1684MB4-300RS-OE1K1.68External (Trapezoidal)80.04C$67.96In stock
17LE13-0404E-200G0.4External (Trapezoidal)80.04C$14.82In stock
17LS13-0404E-200G-SALE0.4External (Trapezoidal)80.04C$40.09In stock
17LS19-1684E-200G-AR31.68External (Trapezoidal)80.04C$67.03In stock
23E20S0904MB2-150RS0.9External (Trapezoidal)80.04C$61.78In stock
23E22S2004AJ2-150RS-SALE2.0External (Trapezoidal)20.01C$47.50In stock
23E22S2004AJ2-200RS2.0External (Trapezoidal)20.01C$62.06In stock
23E22S2004AJ4-300RS2.0External (Trapezoidal)20.01C$67.96In stock
23E22S2004DJ2-200RS2.0External (Trapezoidal)40.02C$62.06In stock
23E22S2004DJ4-300RS2.0External (Trapezoidal)40.02C$67.96In stock
23E22S3004MB4-150RB3.0External (Trapezoidal)80.04C$44.33In stock
6E13S0304AC7-100RS0.3External (Trapezoidal)20.01C$183.28In stock
View all in category
Nema 17 External 34mm Stack 1.68A Lead 8mm(0.31496") Length 200mm w/ Optical Incremental Encoder 1000PPR
This Nema 17 linear stepper motor integrates a high-resolution 1000PPR optical incremental encoder. ... Read More
0 reviews • Write a review
from
C$69.64
5 + C$66.21
10 + C$63.09
50 + C$60.25
100 + C$57.67

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

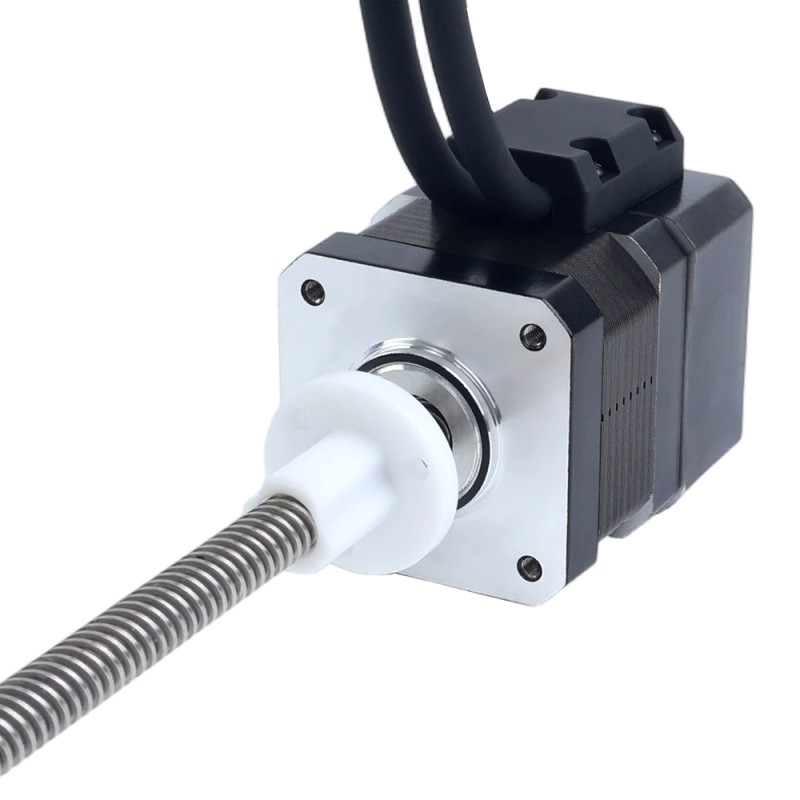

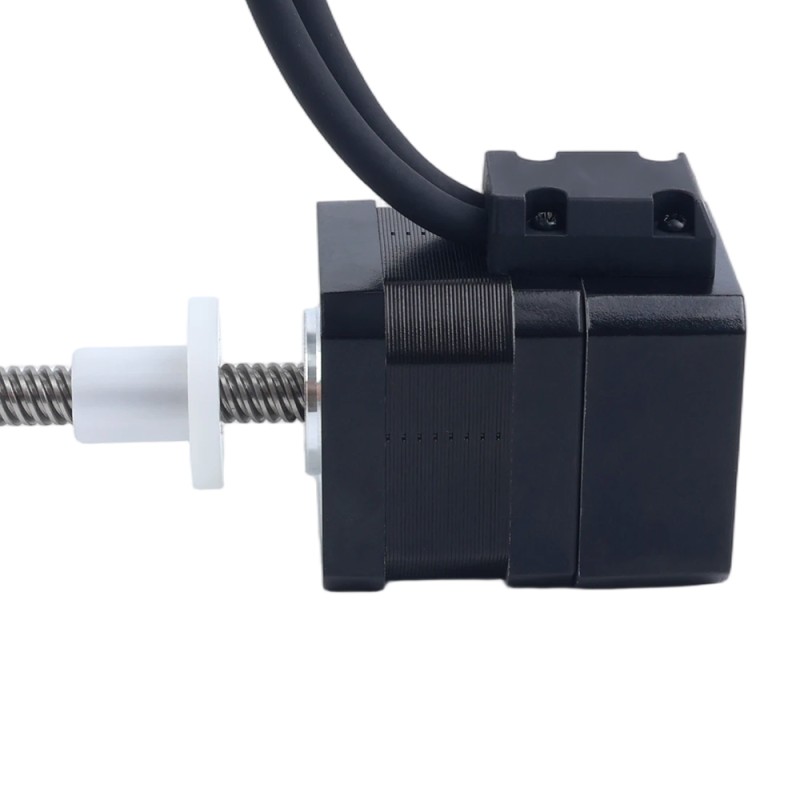

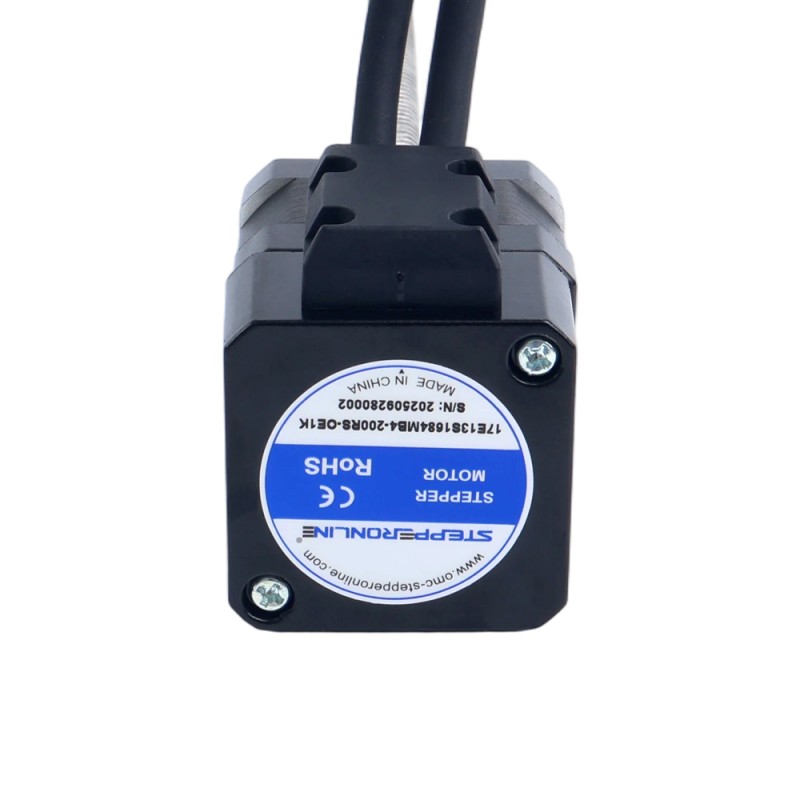

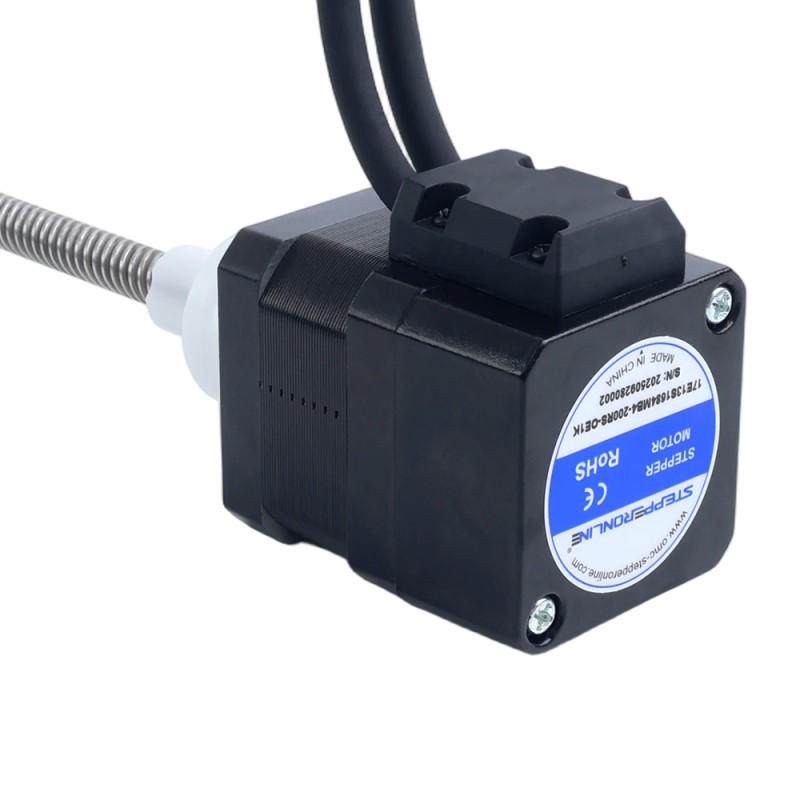

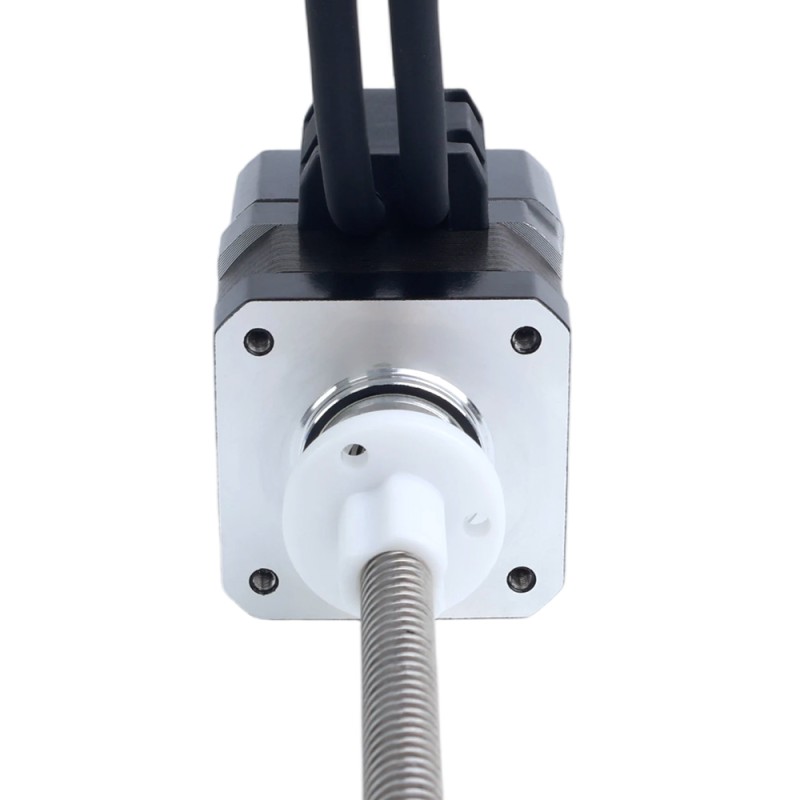

This Nema 17 linear stepper motor integrates a high-resolution 1000PPR optical incremental encoder. It features a 200mm(7.874") long trapezoidal lead screw with a diameter of Φ8mm(0.315") and a POM nut, delivering a linear travel of 8mm(0.315") per revolution. The inclusion of the encoder significantly enhances the motor's positional accuracy and operational stability, making it an ideal solution for a wide range of applications including automated production, logistics systems, medical devices, stage equipment, and robotics.

Motor Specification

  • Manufacturer Part Number: 17E13S1684MB4-200RS-OE1K
  • Motor Type: External (Trapezoidal)
  • Step Angle: 1.8deg
  • Holding Torque: 26Ncm(36.82oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.15 ± 10%ohms
  • Inductance: 1.60mH ± 20%(1KHz)
  • Frame Size: 42 x 42mm
  • Body Length: 34mm

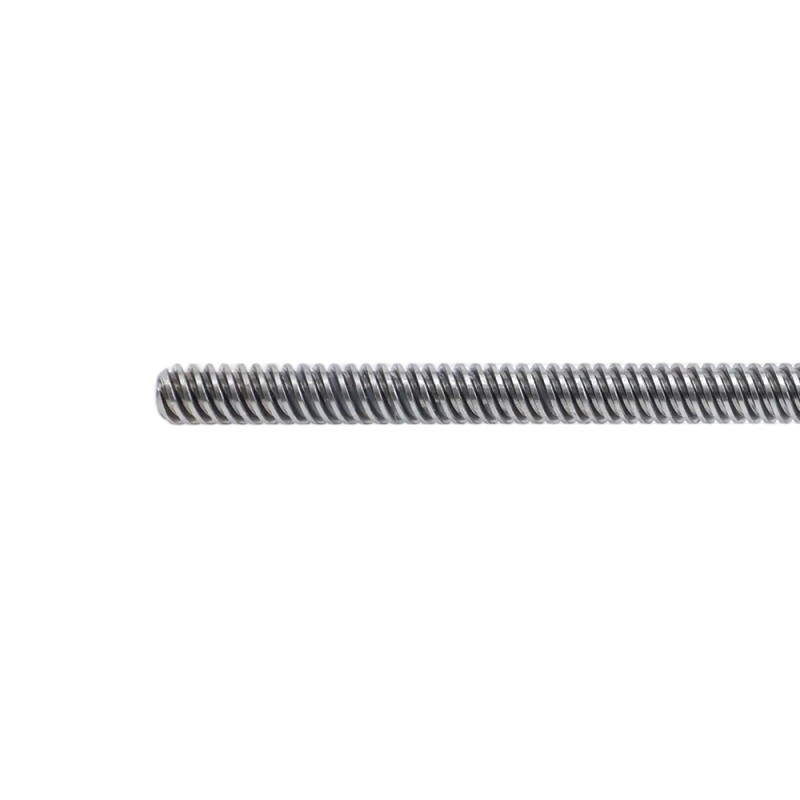

  • Lead Screw Length: 200mm(7.874")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Lead/Step: 0.04mm(0.0015748")
  • Lead/Revolution: 8mm(0.315")
  • Number of Leads: 4
  • Cable Length: 500mm

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: >4V
  • Output Low Voltage: <1V

Connection

Pin
1
2
3
4
Motor
A+
A-
B+
B-
Color
Black
Green
Red
Blue

Encoder
VCC
GND
EA+
EA-
EB+
EB-
Color
Red
White
Black
Blue
Yellow
Green
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 26
Holding Torque(oz.in) 36.82
Inductance(mH) 1.6
Phase Resistance(ohms) 1.15
Rated Current(A) 1.68
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 34
Cable Length(mm) 500
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 200
Lead Travel/Revolution(mm) 8
Lead Travel/Step(mm) 0.04
Linear Motor Type External (Trapezoidal)
No. of Lead 4
With Encoder Yes
