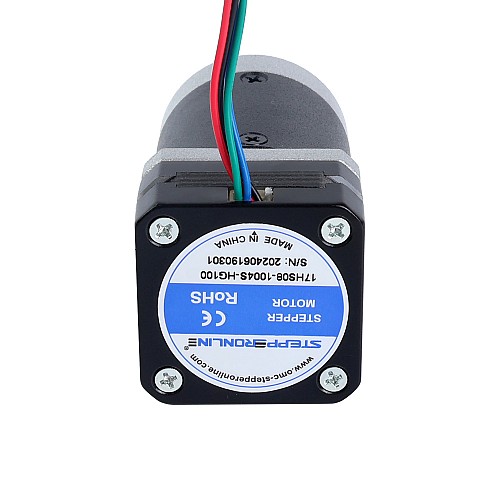

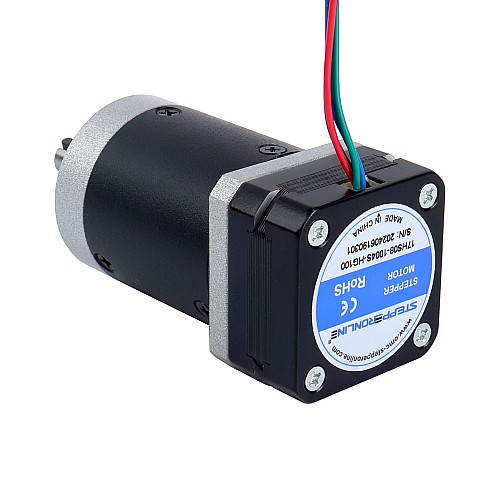

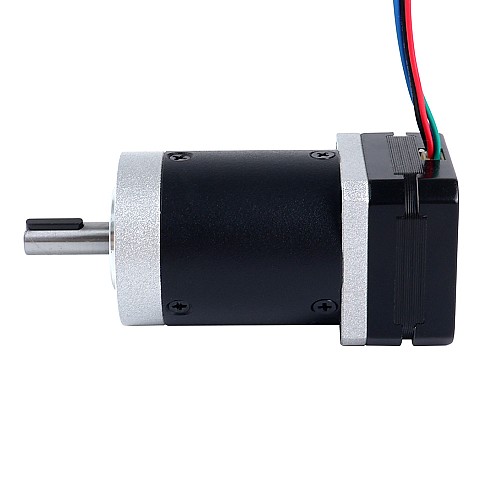

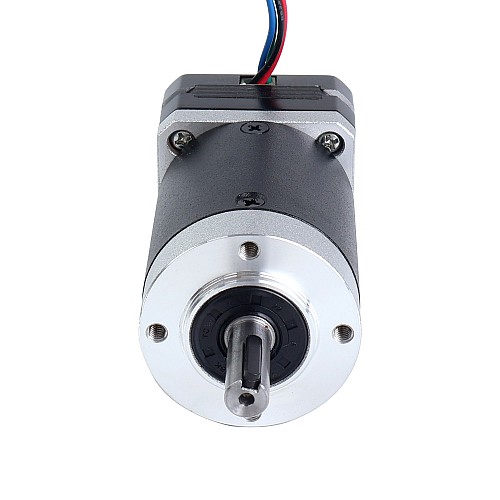

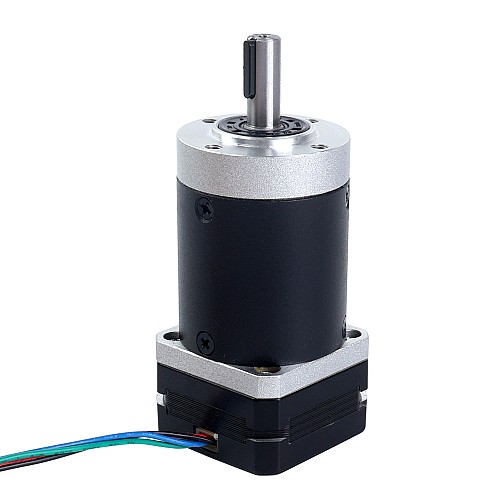

CN On Sale - Nema 17 Stepper Motor Bipolar w/ Gear Ratio 100:1 Planetary Gearbox Output Torque 10Nm(1416.12oz.in)
C$83.83
C$41.91
  • In Stock: 10000
  • Model: CN-17HS08-1004S-HG100
  • Gross Weight: 0.60kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 146

Click country for real-time stock

Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 17 stepper motor with a holding torque of 16Ncm(22.66oz.in) is equipped with a planetary gearbox with a gear ratio of 100 and a maximum backlash of 25arcmin. It's a good solution to applications that require good accuracy, reliability at an exceptional value and has limited space but need low speed and/or high torque.

Electrical Specification

  • Part Number: 17HS08-1004S-HG100
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.018deg
  • Holding Torque without Gearbox: 16Ncm(22.66oz.in)
  • Output Torque with Gearbox: 10Nm(1416.12oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 3.7ohms±10%
  • Inductance: 4.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 100:1
  • Efficiency: 90%
  • Backlash at No-load: <=25arcmin
  • Max. Permissible Torque: 15Nm(2124.17oz.in)
  • Moment Permissible Torque: 15Nm(3540.29oz.in)
  • Ambient Temperature: -10 - 50℃

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 20.5mm
  • Gearbox Length: 58mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 23.5mm
  • Key-way Length: 14mm
  • Number of Leads: 4
  • Cable Length: 100mm
  • Weight: 494g

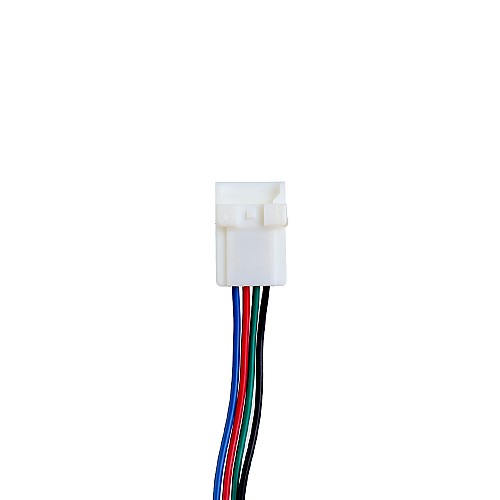

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
The suitable bracket is ST-M12.
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 1.0
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 0.16
Inductance(mH) 4.5
Phase Resistance(ohms) 3.7
Physical Specification
Backlash at No-load <=25arcmin
Body Length(mm) 78.5
Frame Size(mm) Nema 17 (42 x 42)
Gear Material Alloy Steel
Gear Ratio(xx:1) 100
Gearbox Type Precision Planetary
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 100
No. of Lead 4
Output Shaft Type Keyway
Shaft Diameter(mm) 8
Shaft Length(mm) 23.5
Single Shaft/Dual Shaft Single Shaft
Weight(g) 494


File Size
17HS08-1004S-HG100_Full_Datasheet.pdf 58.09KB Download
17HS08-1004S-HG100_Torque_Curve.pdf 86.46KB Download
