Nema 17 Stepper Motor L=28mm w/ Spur Gearbox Gear Ratio 50:1

0 reviews - Write a review

C$62.20

5 + C$59.50

10 + C$57.01

50 + C$54.73

100 + C$52.63

In Stock: Pre-order
Model: 17HS11-0704S-SG50
Gross Weight: 0.50kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

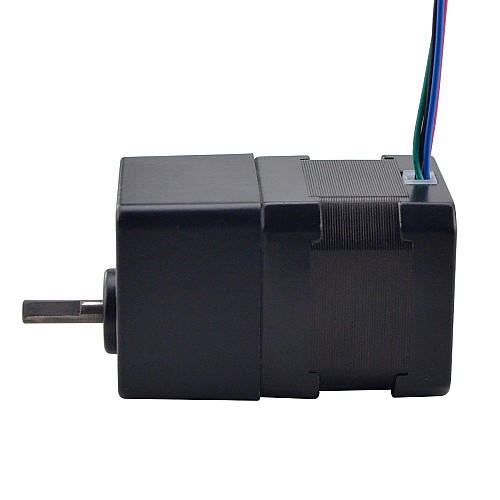

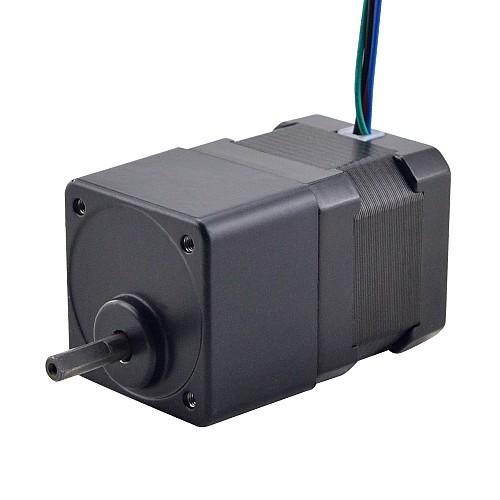

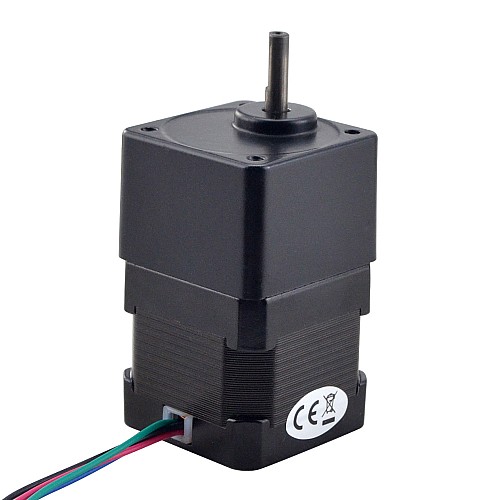

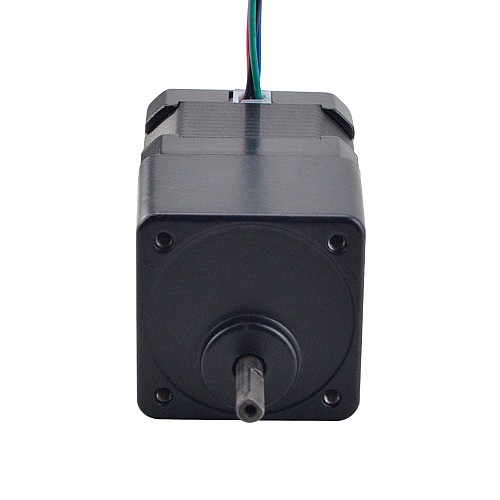

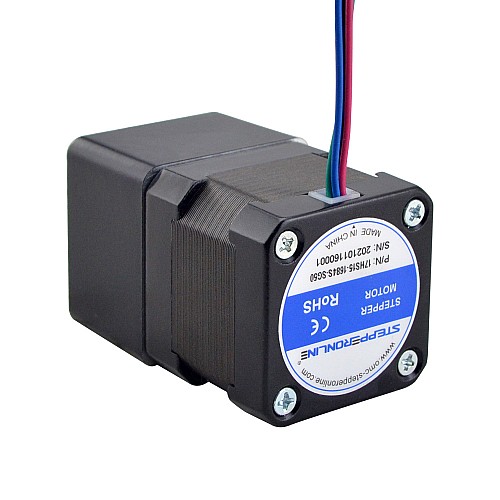

This Nema 17 stepper motor with 28mm body and 0.7A rated current, integrated a 28.5mm square spur gearbox of 50:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS11-0704S-SG50
Motor Type: Bipolar Stepper
Step Angle: 0.036deg
Holding Torque without Gearbox: 0.13Nm(18.41oz.in)
Rated Current/phase: 0.7A
Phase Resistance: 4.20ohms
Inductance: 5.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 50:1
Efficiency: 90%
Max.Permissible Torque: 0.44Nm

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 28mm
Gearbox Length: 28.5mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 300mm
Weight: 0.4kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.7
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.13
Inductance(mH)	5.5
Phase Resistance(ohms)	4.20
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	56.5
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	50
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	400
