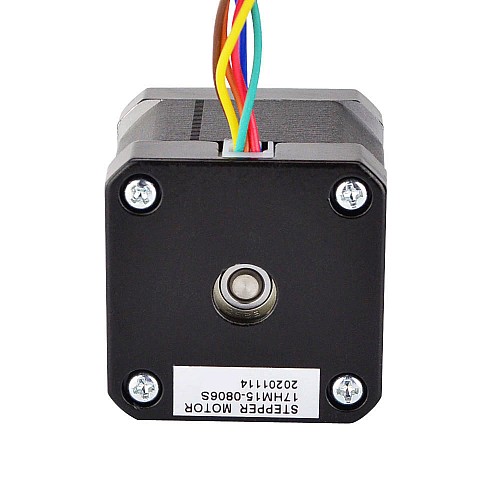

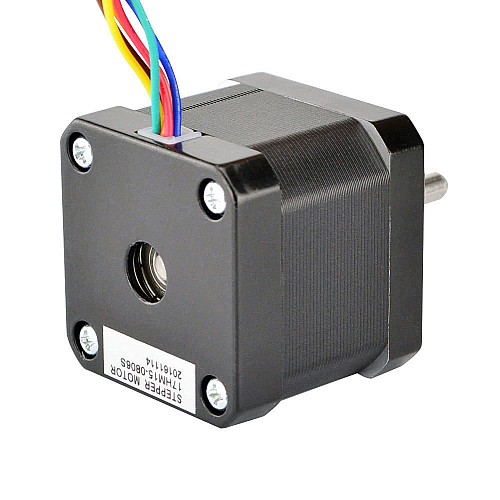

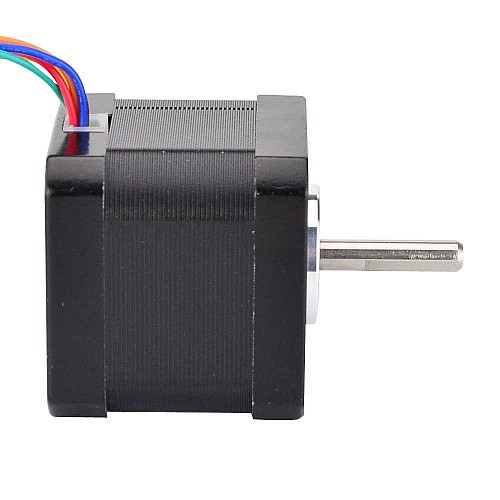

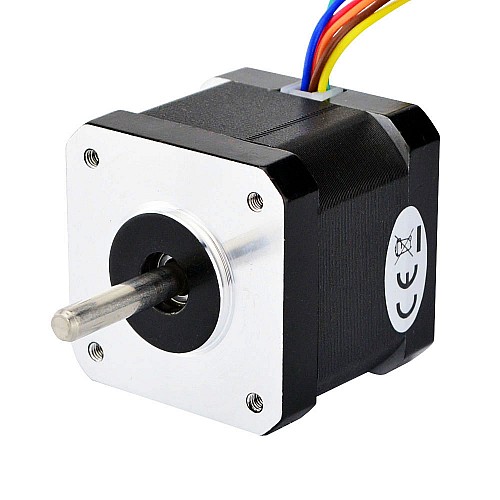

Nema 17 Unipolar 0.9deg 26Ncm(36.82oz.in) 0.8A 42x42x40mm 6 Wires

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17HM15-0806S
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x40mm. It has 6 wires, each phase draws current 0.8A at 6V, with holding torque 26Ncm(36.82oz.in).

Electrical Specification

Manufacturer Part Number: 17HM15-0806S
Motor Type: Unipolar Stepper
Step Angle: 0.9deg
Holding Torque: 26Ncm(36.82oz.in)
Rated Current/phase: 0.8A
Phase Resistance: 7.5ohms
Inductance: 10mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 280g

Connection

Bipolar

A+	A-	B+	B-
Red	Yellow	Blue	Green

Unipolar

A+	O+	A-	B+	O-	B-
Red	Brown	Yellow	Blue	Orange	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	26
Holding Torque(oz.in)	36.82
Inductance(mH)	10
Phase Resistance(ohms)	7.5
Rated Current(A)	0.8
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	6
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	280
