Nema 23 Non-captive 66mm Stack 2.5A Lead 2.54mm(0.1") Length 250mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 23N26S2504GG3-250RS
Gross Weight: 1.10kg
Certificated: ISO, CE, RoHS

Sold: 21

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

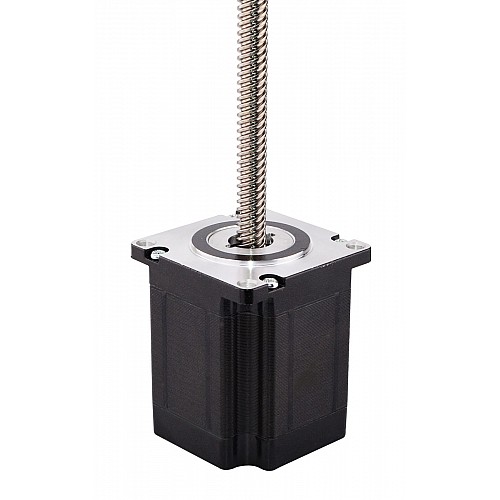

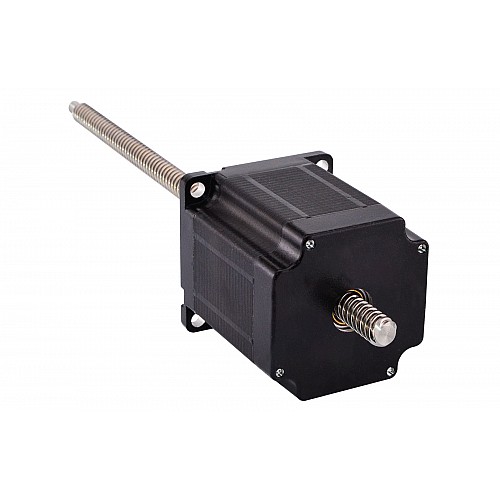

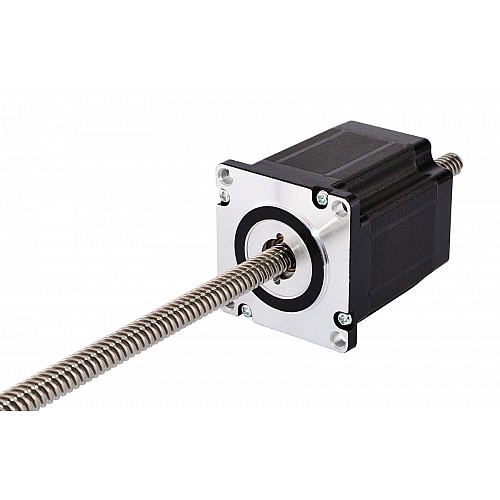

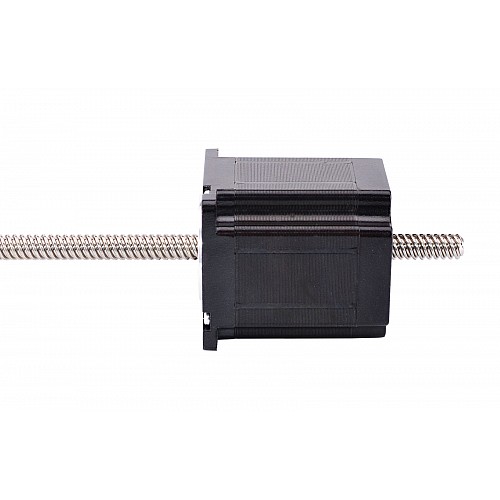

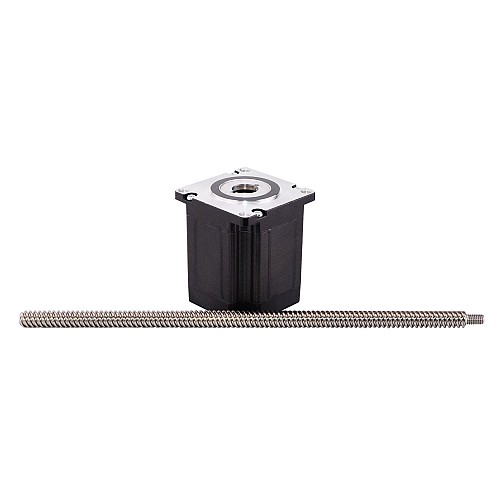

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm(0.3752") diameter 250mm(9.8425") length lead screw, the linear travel is 2.54mm(0.1") per revolution.

Electrical Specification

Manufacturer Part Number: 23N26S2504GG3-250RS(23N26S2504GG-250RS)(23LS26-25043-250N)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 540N(300pps)
Rated Current/phase: 2.5A
Phase Resistance: 2.1ohms
Voltage: 5V
Inductance: 8.2mH±20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 66mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ9.53mm(0.3752")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Cable Length: 300mm
Weight : 958g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23N30S4004GG5-250RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	8.2
Minimal Thrust(N) @300pps	540
Phase Resistance(ohms)	2.1
Rated Current(A)	2.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	66
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	9.53
Lead Screw Length(mm)	250
Lead Travel/Revolution(mm)	2.54
Lead Travel/Step(mm)	0.0127
Linear Motor Type	Non-Captive
No. of Lead	4
