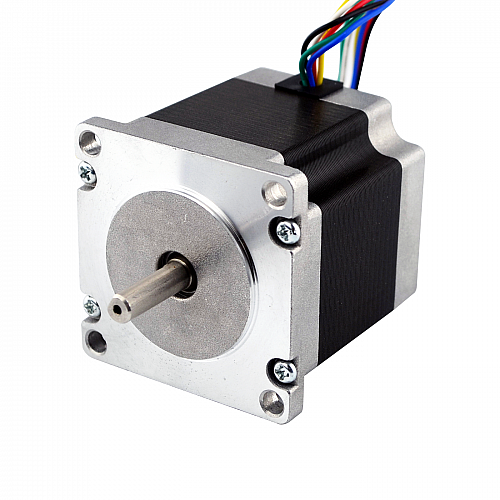

Name: Nema 23 unipolar 1.8deg 0.6Nm(84.97oz.in) 0.44A 57x57x54mm 6 wires
Brand: STEPPERONLINE
SKU: 23HS21-0446S
Price: 22.69 CAD
Availability: InStock

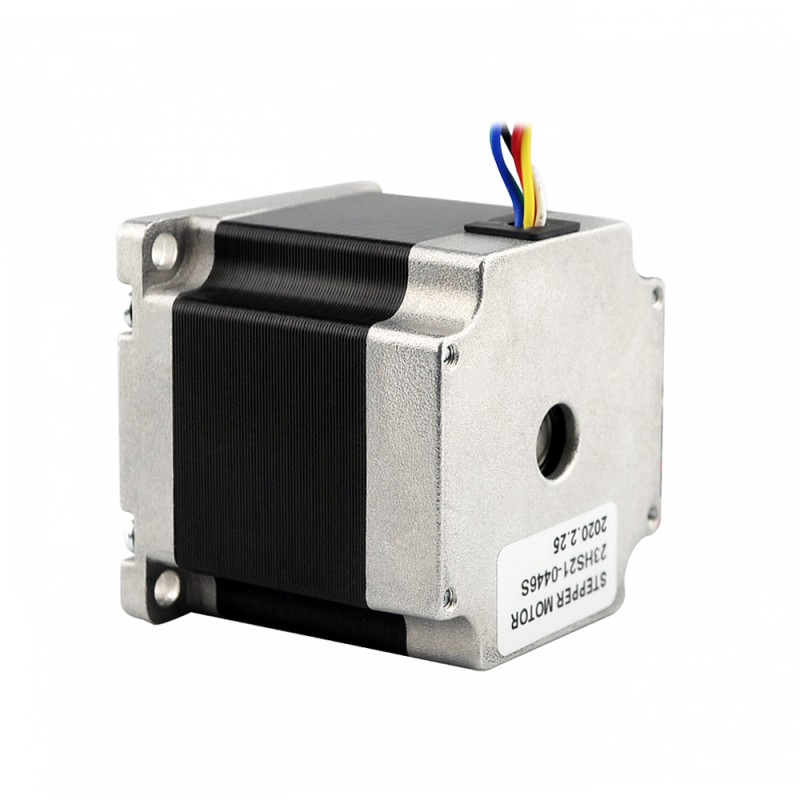

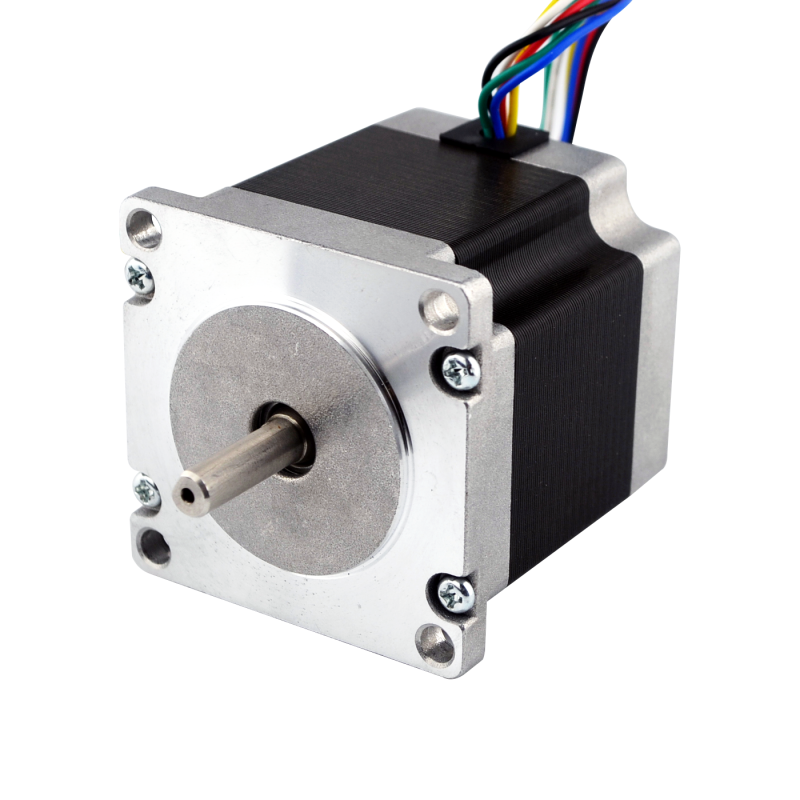

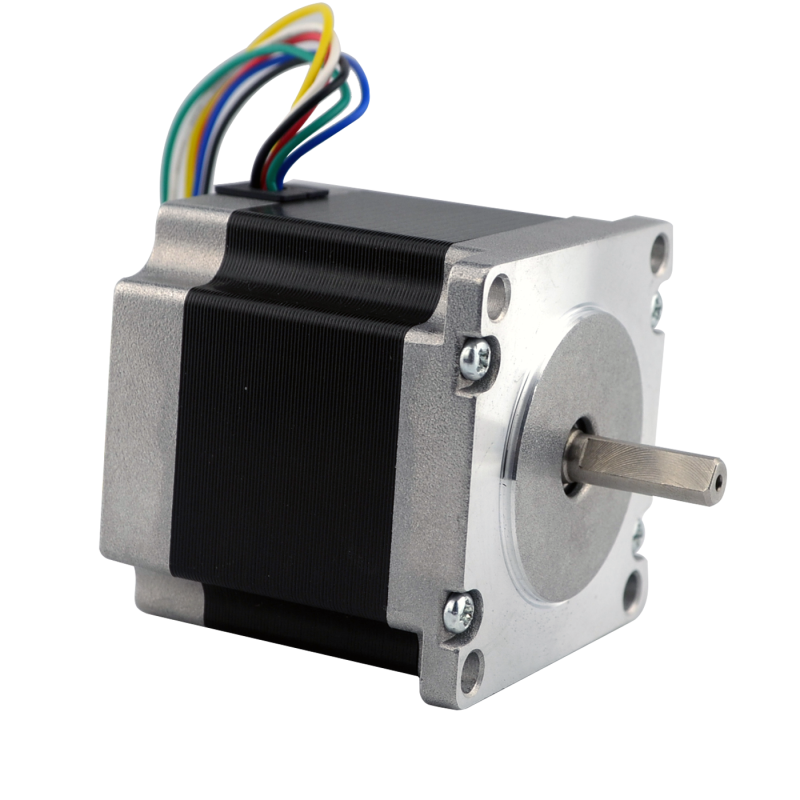

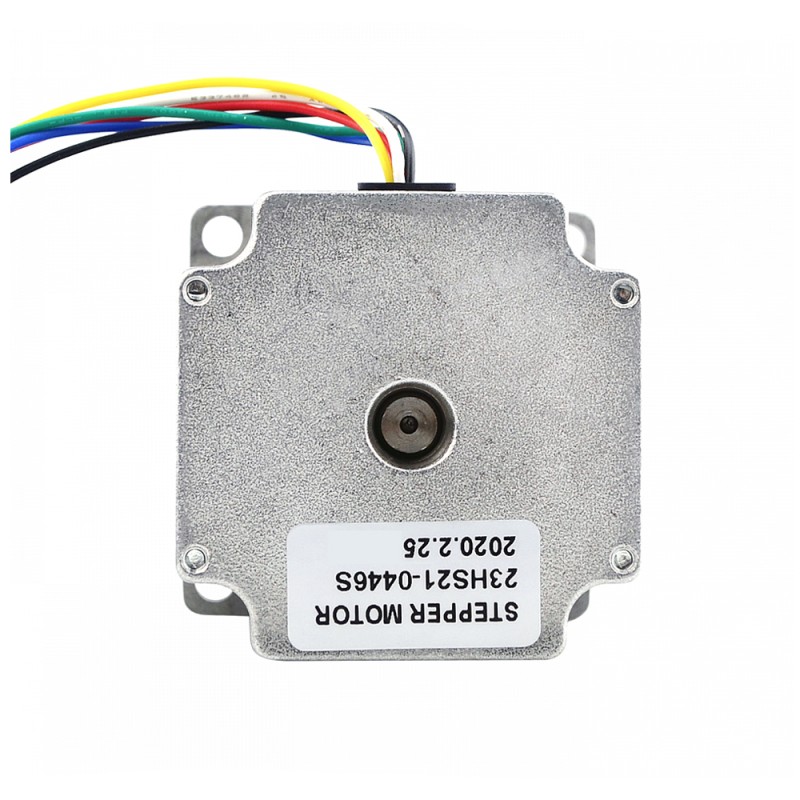

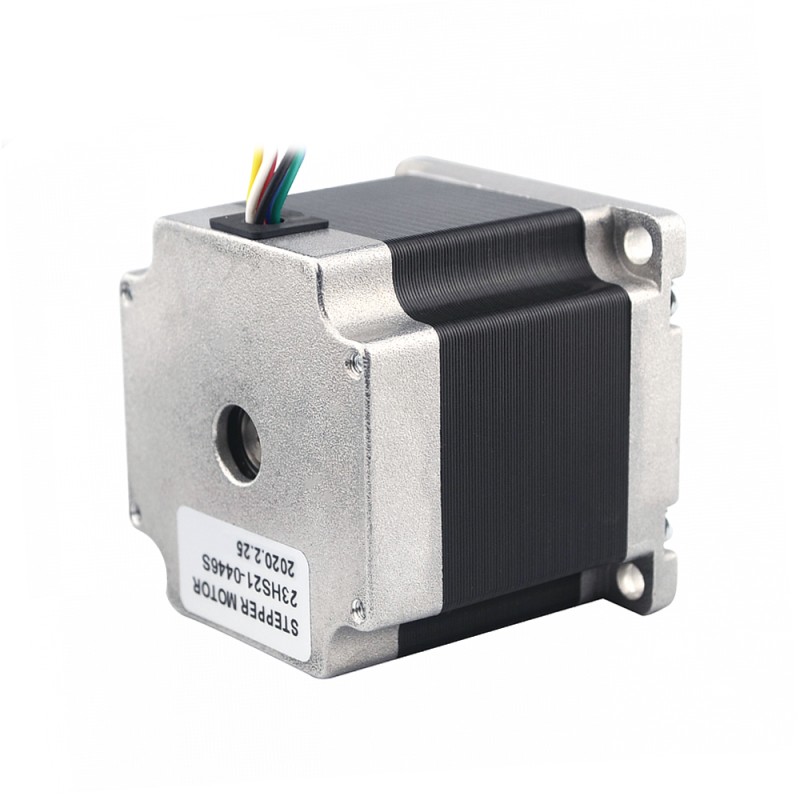

Nema 23 unipolar 1.8deg 0.6Nm(84.97oz.in) 0.44A 11.88V 57x57x54mm 6 wires - 23HS21-0446S | StepperOnline CA

23HS21-0446S

Output Shaft TypeD

No. of Lead6

Single Shaft/Dual ShaftSingle Shaft

Holding Torque(Ncm)60

Question

Downloads

23HS21-0446S_Torque_Curve.pdfPDF · 268KB 23HS21-0446S_Full_Datasheet.pdfPDF · 119.19KB

Same series

Model	Output Shaft Type	No. of Lead	Single Shaft/Dual Shaft	Holding Torque(Ncm)	Price	Stock
23HS16-0884S	D	4	Single Shaft	60	C$22.16	In stock
23HS16-2804D	D	4	Single Shaft	55	C$19.87	In stock
23HS18-2004H	Hollow	4	Dual Shaft	78	C$32.22	In stock
23HS20-2004S	D	4	Single Shaft	90	C$24.84	In stock
23HS21-0446S	D	6	Single Shaft	60	C$22.69	In stock
23HS22-1006D	D	6	Dual Shaft	90	C$22.69	In stock
23HS22-1006S	D	6	Single Shaft	90	C$22.69	In stock
23HS22-1504S	D	4	Single Shaft	116	C$19.39	In stock
23HS22-1504S-C14	D	4	Single Shaft	116	C$12.96	In stock
23HS22-2804D	D	4	Dual Shaft	120	C$25.64	In stock
23HS22-2804S	D	4	Single Shaft	124	C$19.39	In stock
23HS22-2804S1	D	4	Single Shaft	126	C$19.39	In stock
23HS22-3008D	O	8	Dual Shaft	126	C$22.69	In stock
23HS26-2004H	Hollow	4	Dual Shaft	145	C$37.09	In stock
23HS30-1006S	D	6	Single Shaft	135	C$32.16	In stock
23HS30-2694D	D	4	Dual Shaft	185	C$27.43	In stock
23HS30-2694S	D	4	Single Shaft	185	C$27.43	In stock
23HS30-2804D	D	4	Dual Shaft	185	C$35.25	In stock
23HS30-2804S	D	4	Single Shaft	200	C$26.48	In stock
23HS30-2804S-RV	Keyway	4	Single Shaft	190	C$37.77	In stock
23HS30-2804S-USED	D	4	Single Shaft	190	C$11.11	In stock
23HS30-2804S1	D	4	Single Shaft	185	C$32.16	In stock
23HS30-2804S2	D	4	Single Shaft	190	C$26.48	In stock
23HS30-2904S	D	4	Single Shaft	190	C$26.48	In stock
23HS30-3004S	D	4	Single Shaft	189	C$26.48	In stock
23HS30-3006D	O	6	Dual Shaft	135	C$32.16	Backorder
23HS32-4004S	D	4	Single Shaft	240	C$27.43	In stock
23HS32-4004S-C8-USED	D	4	Single Shaft	240	C$25.06	In stock
23HS33-4008D	D	8	Dual Shaft	283	C$38.83	In stock
23HS33-4008S	D	8	Single Shaft	283	C$40.90	In stock

View all in category

Nema 23 unipolar 1.8deg 0.6Nm(84.97oz.in) 0.44A 57x57x54mm 6 wires

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x54mm. It has 6 wires, each... Read More

0 reviews • Write a review

from

C$22.69

5 + C$21.63

10 + C$20.66

50 + C$19.76

100 + C$18.95

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

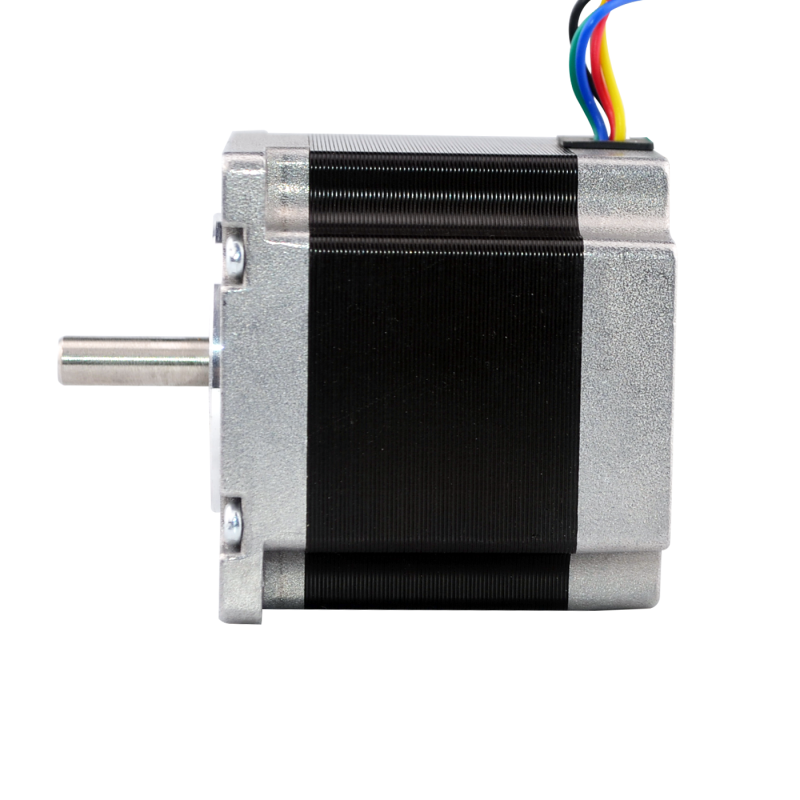

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x54mm. It has 6 wires, each phase draws 0.44A, with holding torque 0.6Nm(84.97oz.in).

Electrical Specification

Manufacturer Part Number: 23HS21-0446S
Motor Type: Unipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.6Nm(84.97oz.in)
Rated Current/phase: 0.44A
Phase Resistance: 27ohms
Inductance: 40mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 54mm
Shaft Diameter: Φ6.35mm(1/4 inch)
Shaft Length: 20.6mm
D-cut Length: 18mm
Number of Leads: 6
Lead Length: 1400mm

Connection

Bipolar

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	60
Holding Torque(oz.in)	84.97
Inductance(mH)	40
Phase Resistance(ohms)	27
Rated Current(A)	0.44
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	54
Frame Size(mm)	Nema 23 (57 x 57)
IP Rating	40
Lead Length(mm)	1400
No. of Lead	6
Output Shaft Type	D
Shaft Diameter(mm)	6.35
Shaft Length(mm)	20.6
Single Shaft/Dual Shaft	Single Shaft
