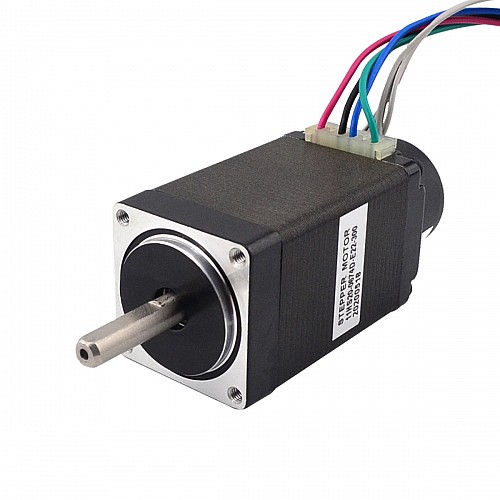

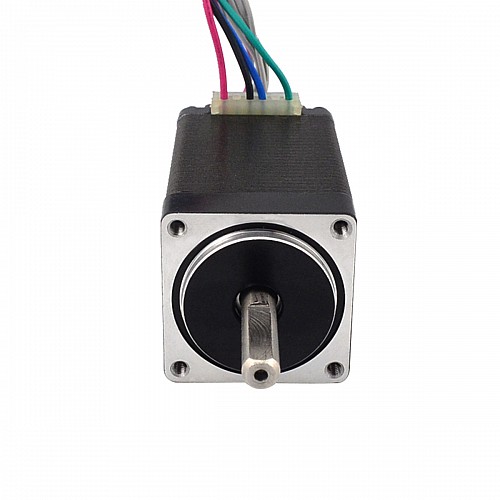

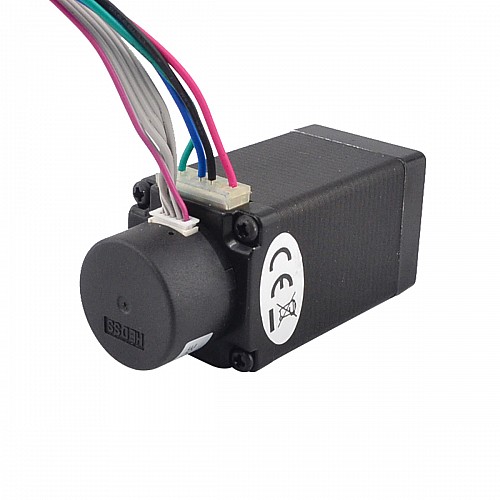

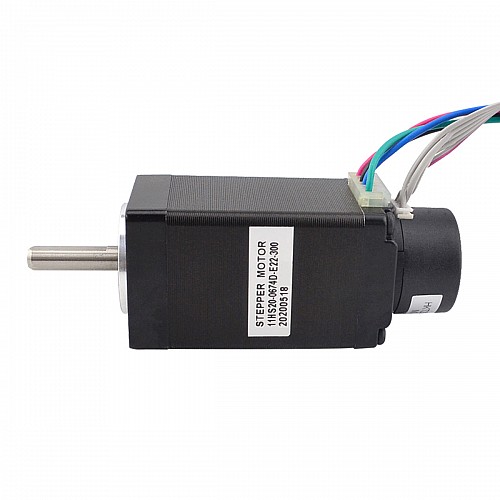

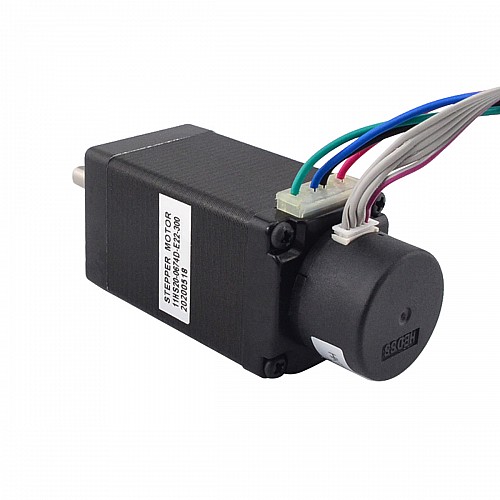

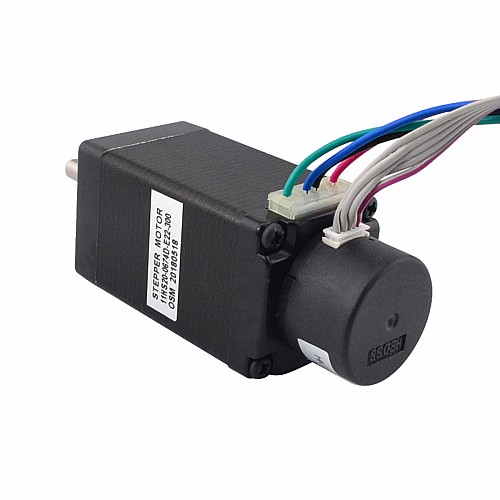

Nema 11 Closed Loop Stepper Motor 0.12Nm(16.99oz.in) Encoder 300PPR

0 reviews - Write a review

C$57.93

5 + C$55.19

10 + C$52.72

50 + C$50.45

100 + C$48.37

In Stock: Pre-order
Model: 11HS20-0674D-E22-300
Gross Weight: 0.28kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Motor Specification

Manufacturer Part Number: 11HS20-0674D-E22-300
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.12Nm(16.99oz.in)
Rated Current/phase: 0.67A
Voltage: 6.20V
Phase Resistance: 9.20ohms
Inductance: 5.70mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 28 x 28mm
Motor Length: 51mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

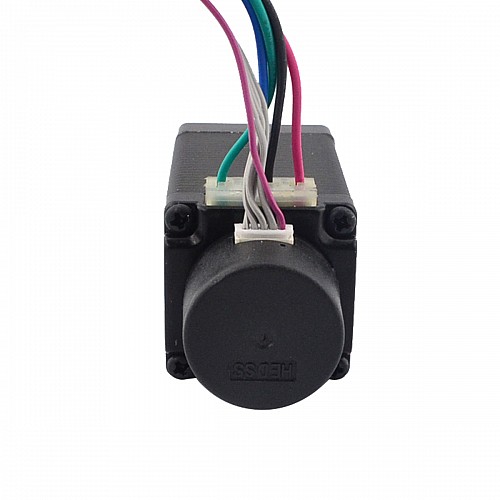

Encoder Specification

Driving Voltage : 5VDC
Output current : ≤20mA
Resolution: 300PPR
Output Signal: 2 Channels
Shaft Diameter: Φ5mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	12
Holding Torque(oz.in)	16.99
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Rated Current(A)	0.67
Physical Specification
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	20
