Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires

Hot

Nema 34 CNC Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 8 Wires

4 reviews - Write a review

C$67.47

5 + C$65.16

10 + C$63.00

50 + C$60.99

100 + C$59.10

In Stock: 10000
Model: 34HS38-3008S
Gross Weight: 3.51kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 855

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

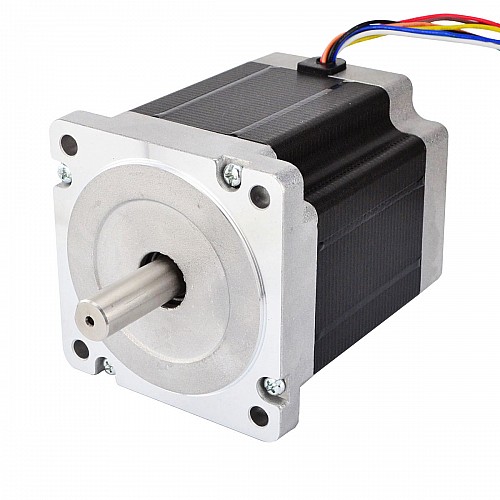

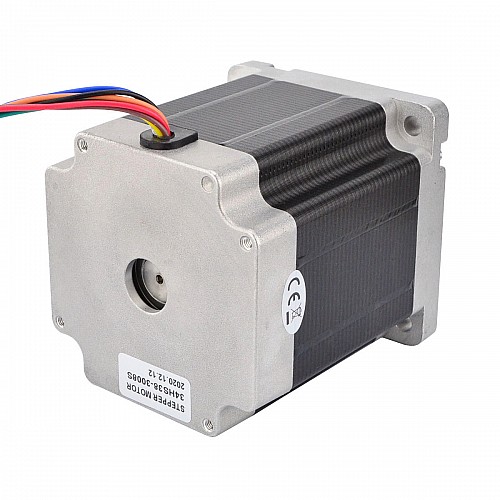

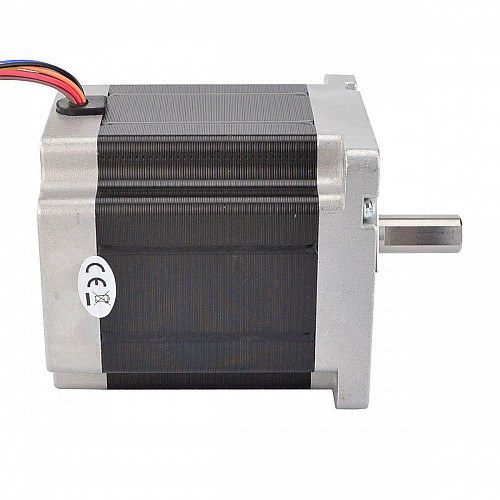

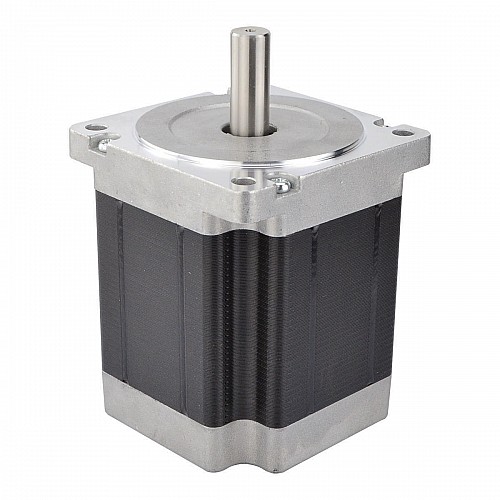

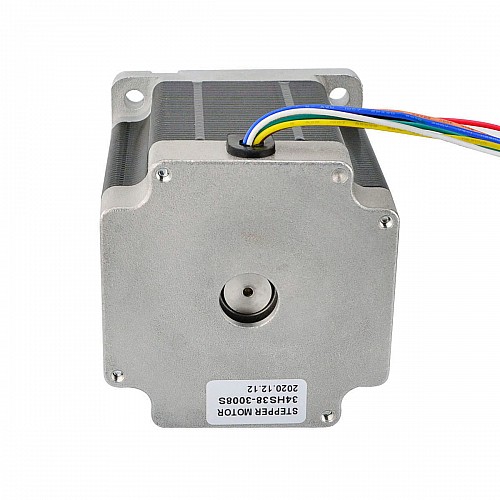

This nema 34 cnc stepper motor with size 86x86x98mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 5Nm(708oz.in) with unipolar connection and 7.07Nm(1001oz.in) with bipolar connection.

Electrical Specification

Manufacturer Part Number: 34HS38-3008S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque(Unipolar): 5Nm(708oz.in)
Holding Torque(Bipolar): 7.07Nm(1001oz.in)
Rated Current/phase(Unipolar): 3.0A
Rated Current/phase(Bipolar Serial): 2.12A
Rated Current/phase(Unipolar Parallel): 4.24A
Phase Resistance(Unipolar): 1.6ohms
Phase Resistance(Bipolar Serial): 3.2ohms
Phase Resistance(Bipolar Parallel): 0.8ohms
Inductance(Unipolar): 8.0mH±20%(1KHz)
Inductance(Bipolar Serial): 32.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 98mm
Shaft Diameter: Φ12.7mm
Shaft Length: 32mm
D-cut Length: 25mm
Number of Leads: 8
Lead Length: 500mm
Weight: 3.13kg

Connection

A+	A-	B+	B-
Blue/White	Black/Orange	Red/Yellow	Green/Brown

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar/Unipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	707
Holding Torque(oz.in)	1001
Inductance(mH)	8
Phase Resistance(ohms)	0.8
Rated Current(A)	4.24
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	98
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	8
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	12.7
Shaft Length(mm)	32
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	3130
