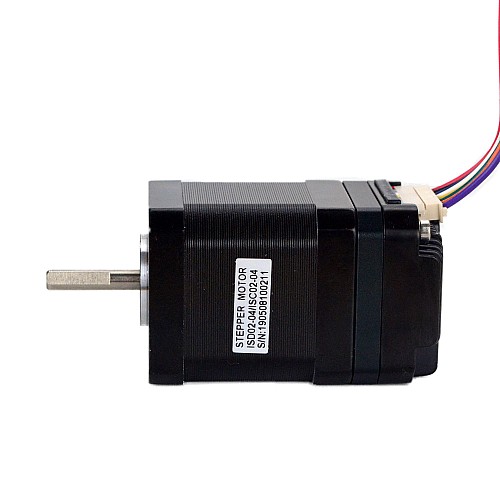

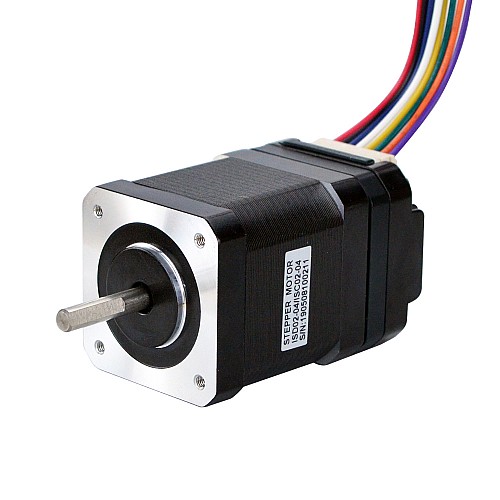

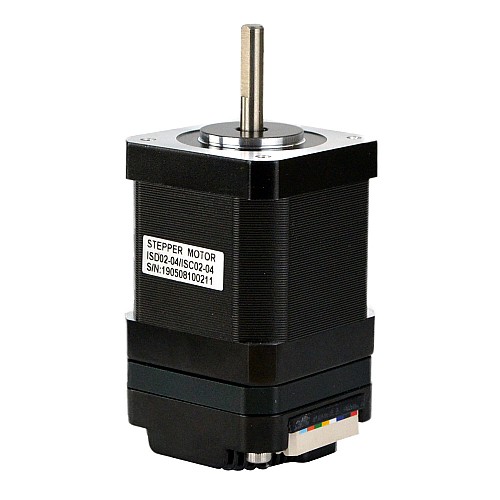

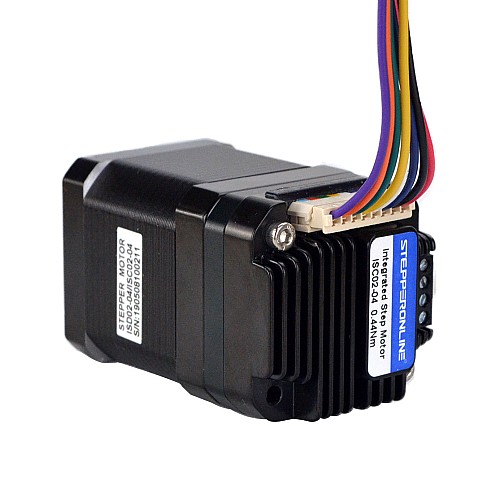

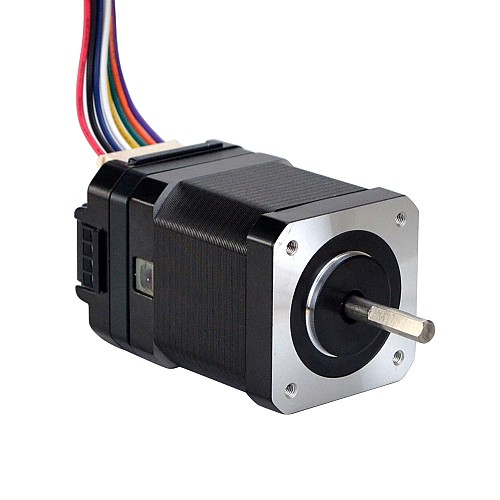

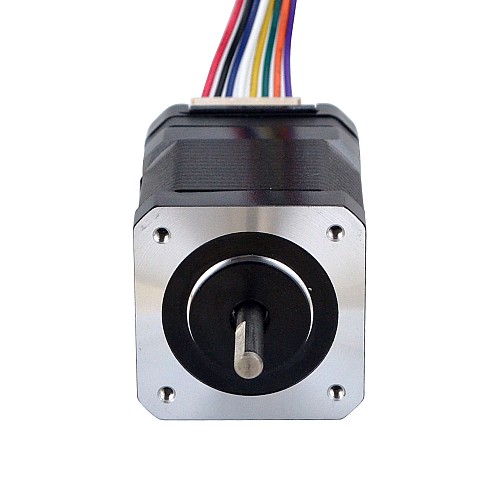

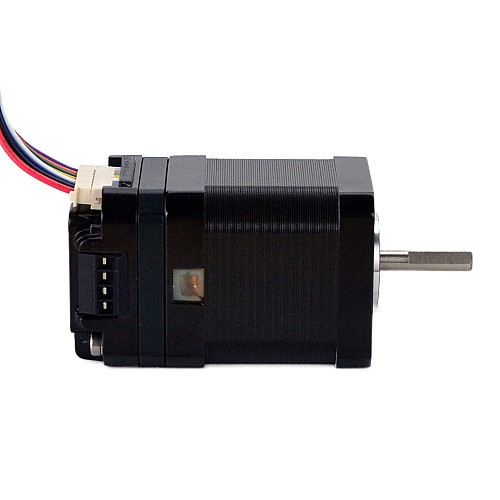

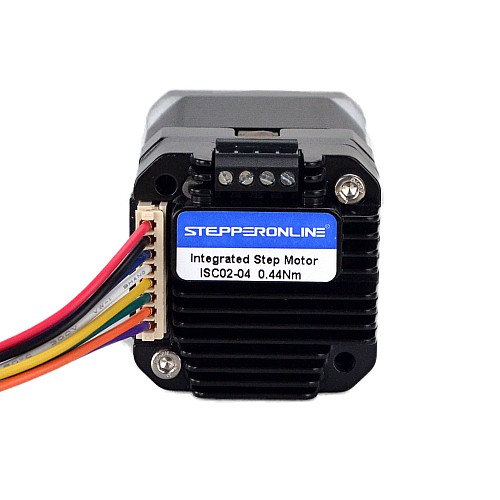

Nema 17 Integrated Stepper Motor 0.44Nm(62.32oz.in) w/ Controller ISC02 10-30VDC

0 reviews - Write a review

C$52.94

5 + C$51.12

10 + C$49.43

50 + C$47.85

100 + C$46.37

In Stock: 10000
Model: ISC02-04
Gross Weight: 0.50kg
Certificated: ISO, CE

Sold: 93

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specifications

Manufacturer Part Number: ISC02-04
Step Angle: 1.8deg
Holding Torque: 44Ncm(62.32oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 2ohms
Inductance: 2.5mH ± 20%(1KHz)

Physical Specifications

Frame Size: 42 x 42mm
Body Length: 69.5mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Weight: 405.5g

Driver Specifications

Output Peak Current: 0 - 2A
Input Voltage: 10 - 30VDC
Insulation Class: B 130°C[266°F]
Speed control through external potentiometer 0. 75 - 1250RPM
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.

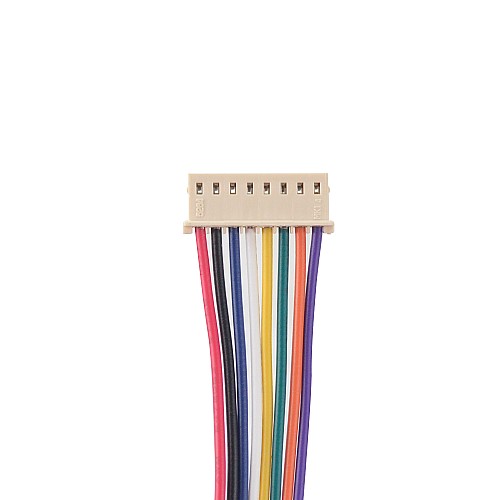

Connection

V+	GND	ENA	ON	H/L	DIR	Vr	SPD
Red	Black	Blue	White	Yellow	Green	Orange	Purple

Product Type
Product Type	Integrated Stepper Motor
Electrical Specification
Analog Input	Yes
Control Modes	Pulse Mode
Encoder Feedback	No (Open Loop)
Holding Torque(Ncm)	44
Holding Torque(oz.in)	62.32
Input Voltage Reference(V)	12 - 24DC
Input Voltage(V)	10 - 30DC
Physical Specification
Body Length(mm)	69.5
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Shaft Diameter(mm)	5
Shaft Length(mm)	24
