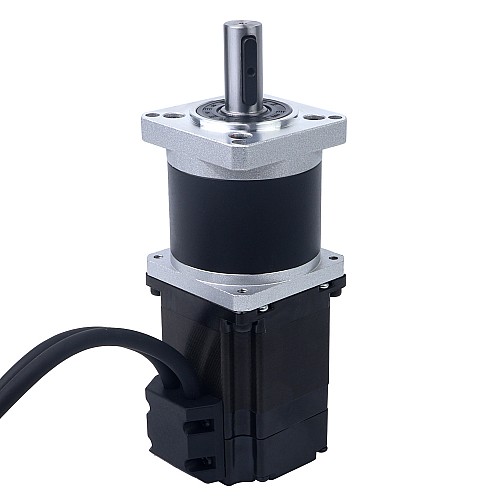

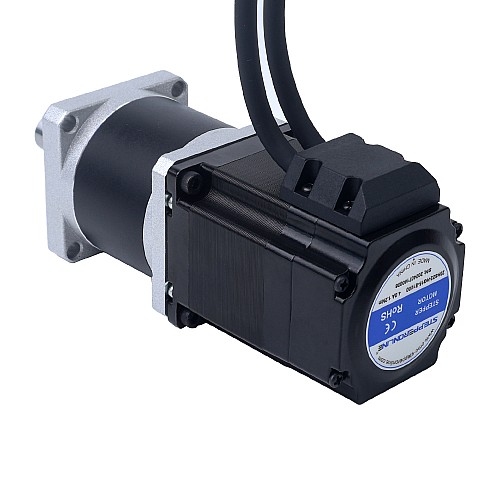

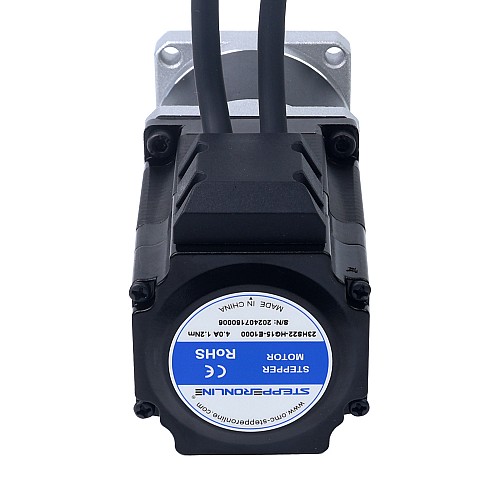

Nema 23 Closed Loop Stepper Motor L=77mm Gear Ratio 15:1 High Precision Planetary Gearbox

0 reviews - Write a review

C$109.51

5 + C$104.99

10 + C$100.83

50 + C$97.00

100 + C$93.43

In Stock: 10000
Model: 23HS22-HG15-E1000
Gross Weight: 1.80kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 23HS22-HG15-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.2Nm(169.97oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.45ohms
Inductance: 1.3mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 77mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Keyway Shaft Length: 25mm
Lead Length: 300mm

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 15:1
Efficiency: 85%
Backlash at No-load: <=50arcmin
Max. Permissible Torque: 20Nm(2832.8oz.in)
Moment Permissible Torque: 40Nm(5664oz.in)
Max. Radial Load: 250N
Noise: <=50dB
Ambient Temperature: 0 - 50℃

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

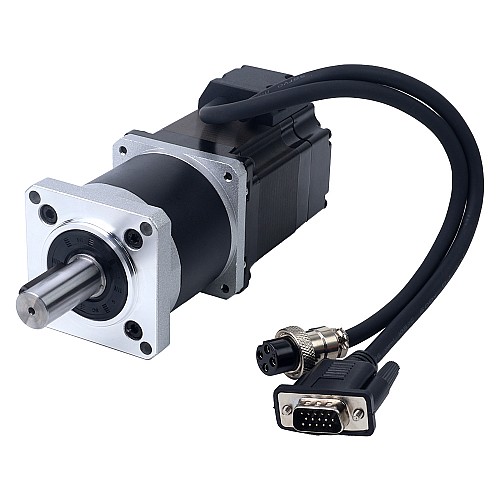

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	GND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	120
Inductance(mH)	1.3
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.45
Rated Current(A)	4.0
Stepper Motor with	Encoder/Gearbox
Physical Specification
Backlash at No-load	<=50arcmin
Body Length(mm)	77
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	15
Gearbox Type	HG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
