TP Series 1 Axis Closed Loop Stepper CNC Kit 1.2Nm(169.93oz.in) Nema 23 Motor & Driver

0 reviews - Write a review

C$123.34

5 + C$115.87

10 + C$109.24

50 + C$103.33

100 + C$98.04

In Stock: 10000
Model: 1-CL57T-P12-V41
Gross Weight: 1.70kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This CNC kit included:

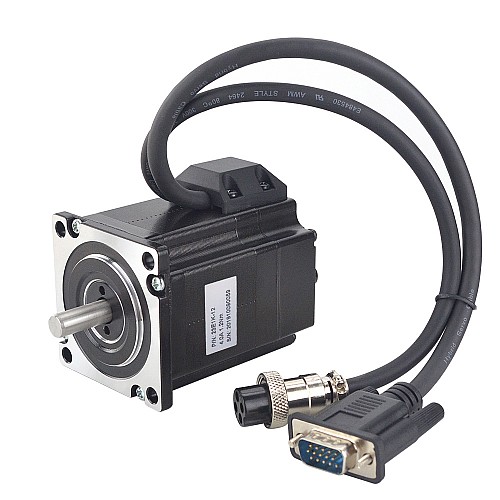

1 x 23E1K-12: P Series Nema 23 Closed Loop Stepper Motor 1.2Nm/169.93oz.in with Encoder 1000PPR
1 x CL57T-V41: Closed Loop Stepper Driver V4.1 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
1 x CABLE-PC-1: RS232 Debugging Cable
1 x CE2M: 1.7m(67") Long Encoder Extension Cable for Closed Loop Stepper Motor
1 x CM2M-20: RV-4 AWG20 1.7m(67") Long Motor Extension Cable with GX16 Aviation Plug

Motor Specification

Part Number: 23E1K-12
Number of phase: 2
Holding Torque: 1.2Nm(169.93oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.45ohms
Inductance: 1.4mH ± 20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 55.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Lead Length: 270mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Output Signal Channels: 2 channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Driver Specification

Output Peak Current: 0~8A
Input Voltage: +24~48VDC(Typical 36VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
RS232 debugging interface available
Broader operating speed range
Reduced motor heating and more efficient
Smooth motion and super-low motor noise
Protections for over-voltage, over-current and position following error

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

Motor Extension Cable Connection

PIN	1	2	3	4
Color	Black	Green	Red	Blue

Encoder Extension Cable Connection

PIN	2	3	1	13	11	12
Color	Red	White	Black	Blue	Yellow	Green

PLEASE NOTE: The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected.

The CL57T in this kit is the latest 4.1 version, which compared to the 4.0 version, opens up the RS232 interface and provides a debugging cable for free, making it more convenient to configure parameters.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	120
Holding Torque(oz.in)	169.93
Inductance(mH)	1.4
Input Voltage Reference(V)	24 - 48DC
Input Voltage(V)	18 - 50DC
Number of Axes	1
Output Signal Channels	2
Phase Resistance(ohms)	0.45
Rated Current(A)	4.0
Physical Specification
Body Length(mm)	55.5
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Lead Length(mm)	270
Output Shaft Type	D
Power Supply	No
Product Series	TP Series
Shaft Diameter(mm)	8
Shaft Length(mm)	21

File	Size
23E1K-12.pdf	182.87KB	Download
MotionStudio_v1.4.10.rar	14.35MB	Download
CL57T-V41_Manual.pdf	1.22MB	Download
Software_manual.pdf	269.98KB	Download
23E1K-12_Torque_Curve.pdf	84.97KB	Download
