Used - EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 34 Stepper Motor

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 34 Stepper Motor - EG34-G10 | StepperOnline CA

Used -52 %

Used - EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 34 Stepper Motor

0 reviews - Write a review

C$88.28

C$42.54

In Stock: 10000
Model: EG34-G10-USED
Gross Weight: 3.00kg
Certificated: ISO, CE, REACH

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

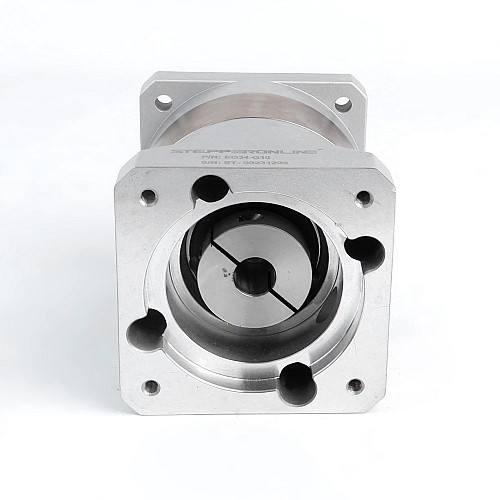

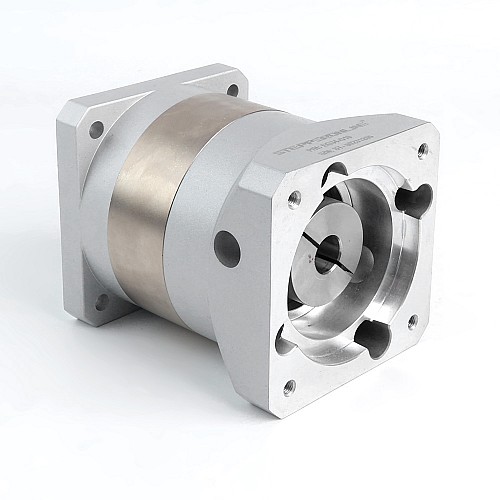

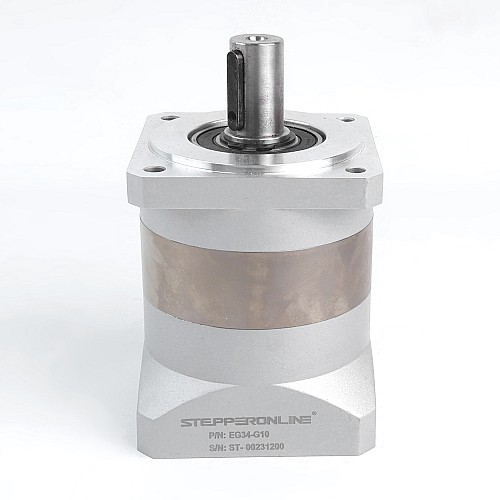

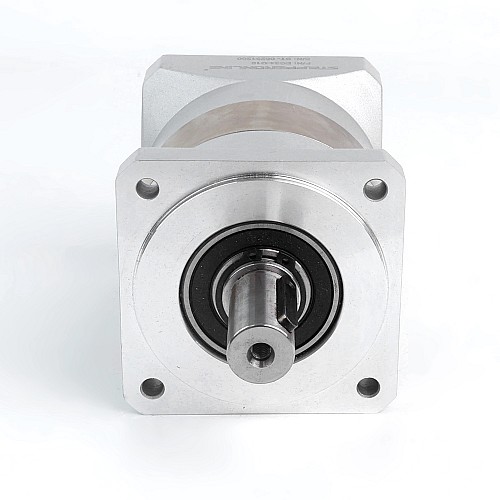

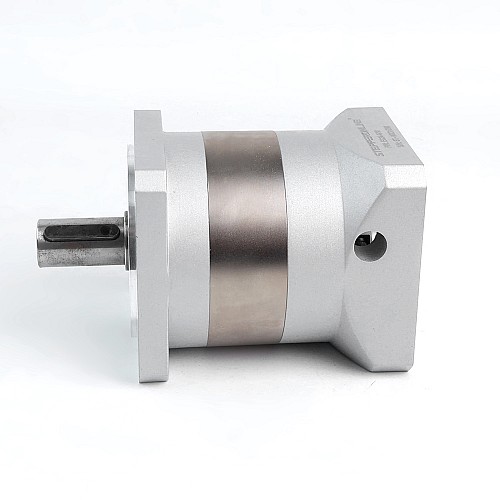

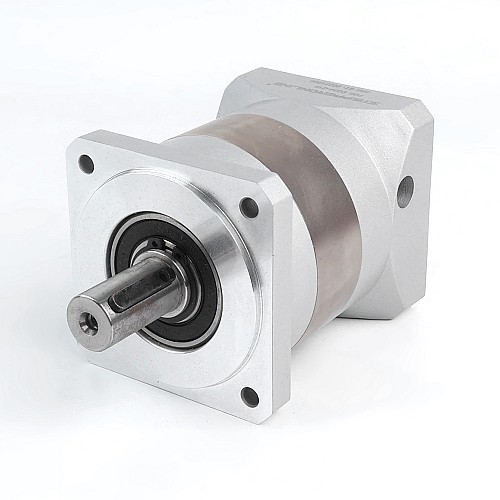

The size of this gearbox is 90 x 90mm and the input shaft diameter is 14mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 10:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 34 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG34-G10
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 96%
Rotor Inertia: 0.44kg·cm²
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 39Nm(345.18lb-in)
Moment Permissible Torque: 78Nm(690.36lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 110mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ20mm
Output Shaft Length: 40mm
Input Shaft Diameter: Φ14mm
Input Shaft Length: 22-41mm

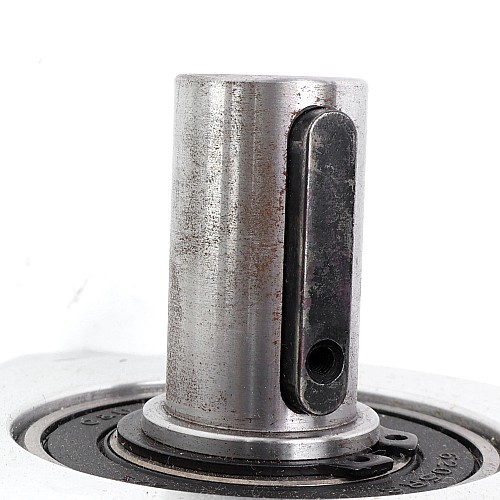

Product status note: the gearbox shaft has obvious indentations.

Product Type
Product Condition	Used
Product Type	Gearbox
Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	Nema 34 (90 x 90)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	110
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	22 - 41
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 34 Stepper Motor
Output Shaft Diameter(mm)	20
Output Shaft Length(mm)	40
Output Shaft Type	Keyway
Product Series	EG
Weight(g)	3000
