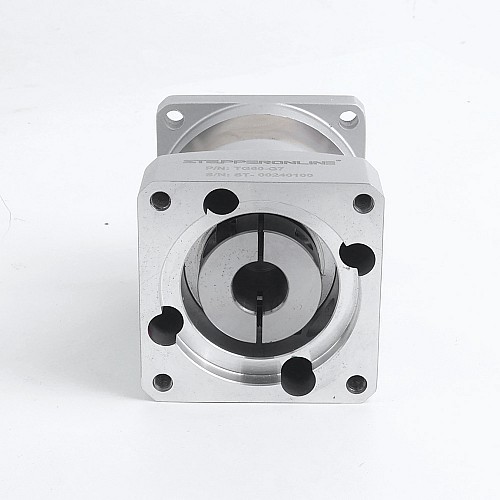

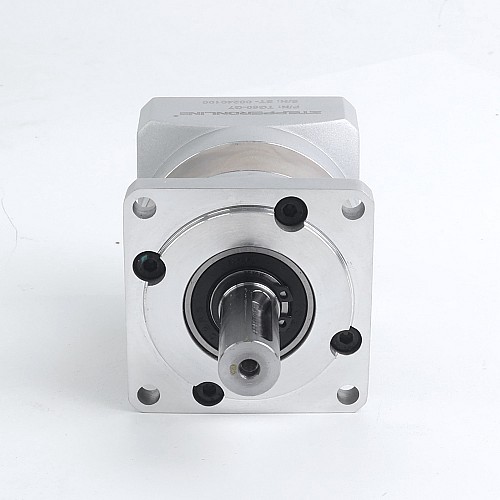

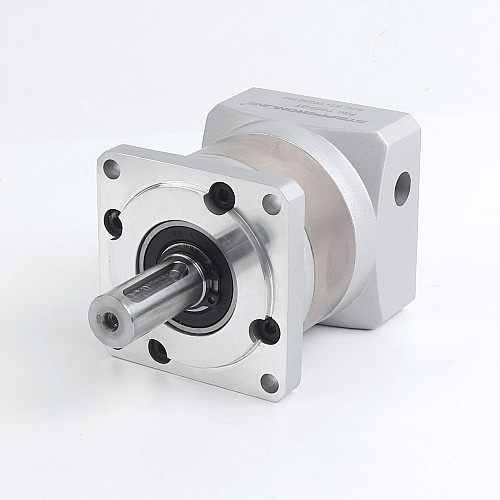

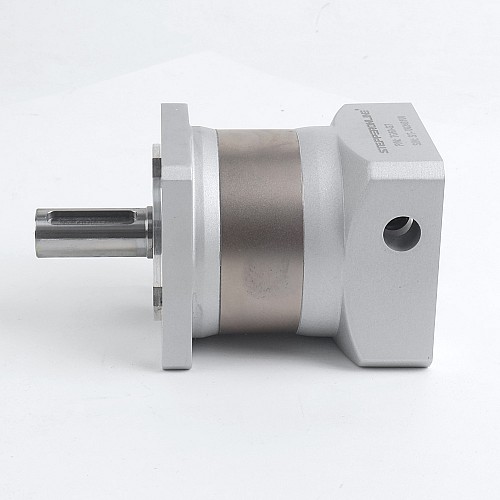

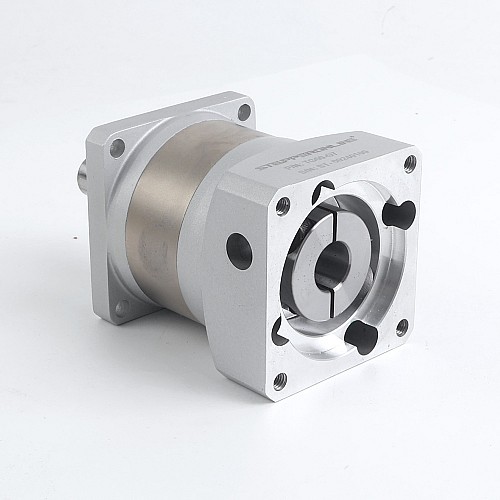

Used - TG Series 60mm 7:1 Planetary Gearbox Backlash 10arc-min for Servo Motors

Used -45 %

Used - TG Series 60mm 7:1 Planetary Gearbox Backlash 10arc-min for Servo Motors

0 reviews - Write a review

C$71.90

C$39.55

In Stock: 10000
Model: TG60-G7-USED
Gross Weight: 1.18kg
Certificated: ISO, CE, REACH

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 7:1 and a maximum 10arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This in-line planetary gearbox can match most servo motors on the market.

Gearbox Specifications

Part Number: TG60-G7
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 7:1
Efficiency: 96%
Rotor Inertia: 0.03kg.cm²
Backlash at No-load: <=10arc-min
Max.Permissible Torque: 20Nm(177.01lb-in)
Moment Permissible Torque: 40Nm(354.02lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 60 x 60mm
Gearbox Length: 73.5mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ14mm
Output Shaft Length: 35mm
Input Shaft Diameter: Φ14mm
Input Shaft Length: 12-31mm

Other optional reduction ratios.

4 : 1	7 : 1	16 : 1	25 : 1
28 : 1	35 : 1	40 : 1	70 : 1

Product status note: the gearbox has scratches of varying degrees.

Product Type
Product Condition	Used
Physical Specification
Backlash at No-load	<=10arcmin
Frame Size(mm)	60 x 60
Gear Material	Alloy Steel
Gear Ratio(xx:1)	7
Gearbox Length(mm)	73.5
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	12 - 31
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 60 Servo Motor
Output Shaft Diameter(mm)	14
Output Shaft Length(mm)	35
Output Shaft Type	Keyway
Product Series	TG
