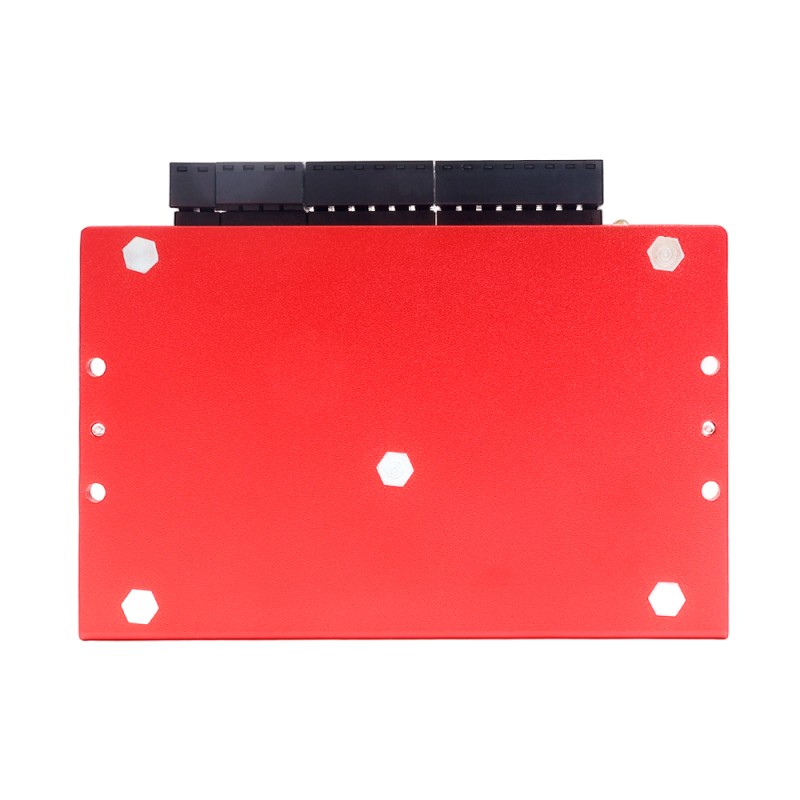

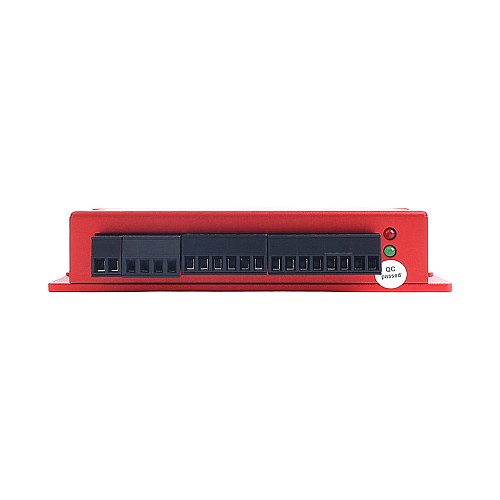

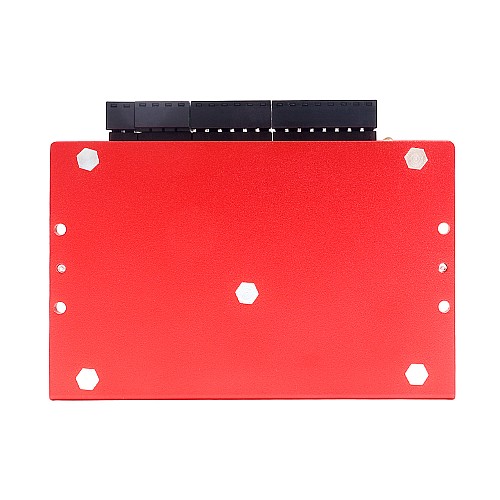

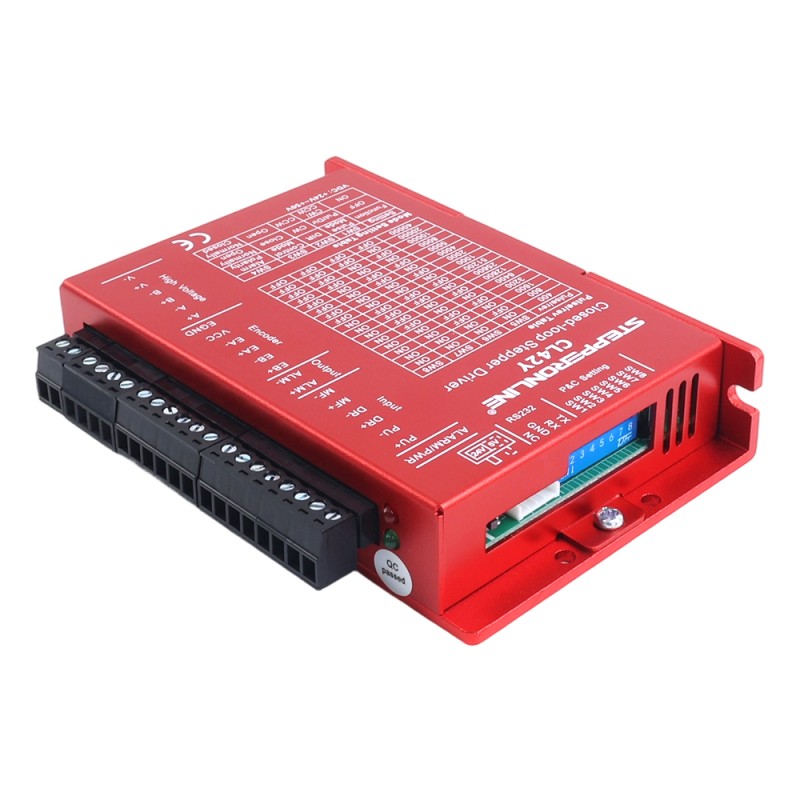

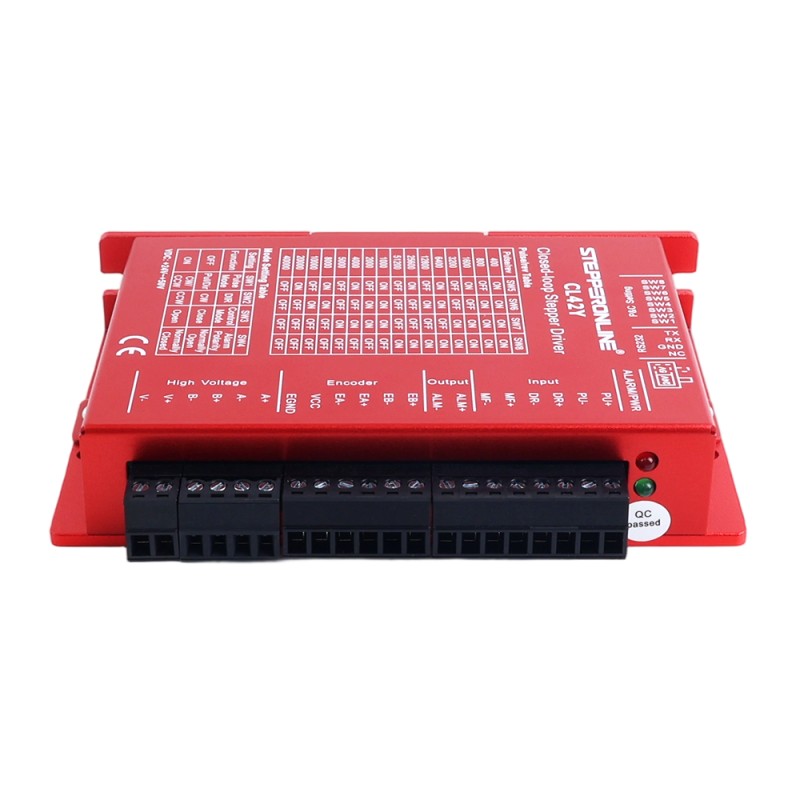

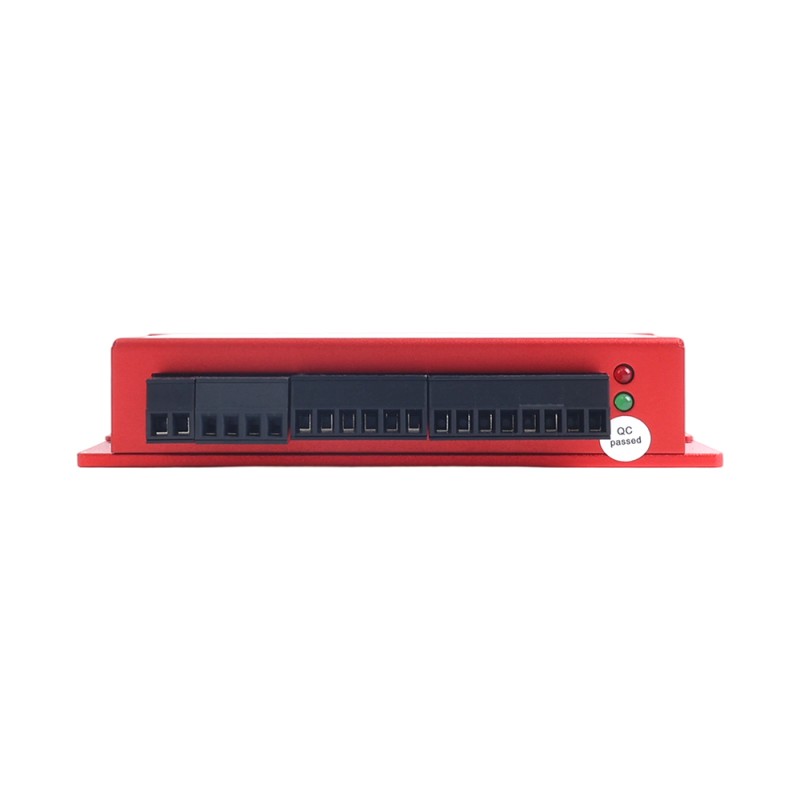

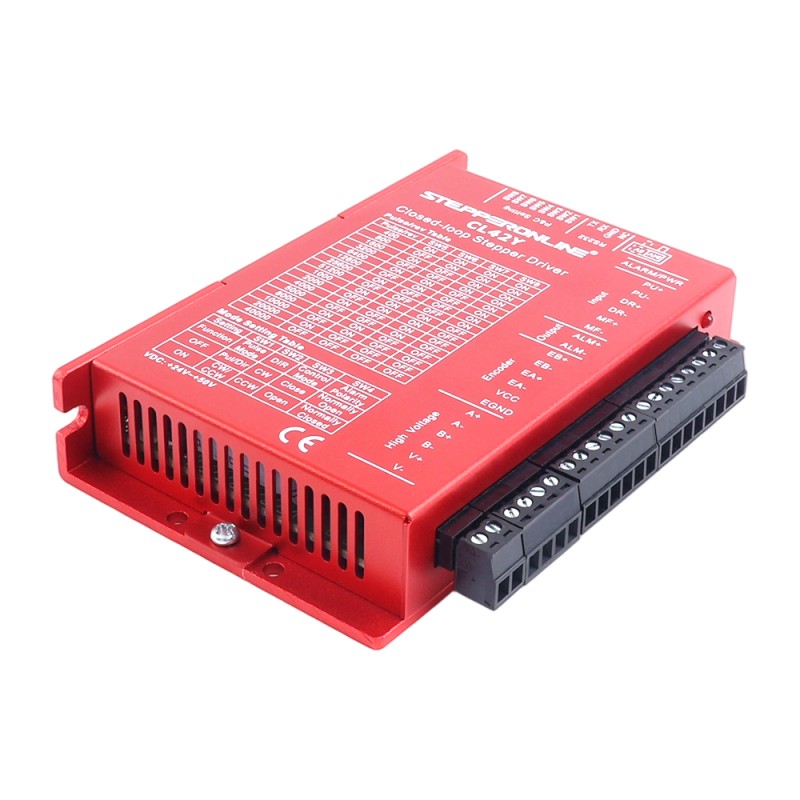

Y Series Closed Loop Stepper Driver V2.0 0-2.2A 24-50VDC for Nema 17 Stepper Motor

The CL42Y-V20 closed-loop stepper driver delivers superior performance with a current range of 0–2.2A and an operating voltage of 24–50VDC, making it ideal for Nema 17 stepper motors. As an upgraded successor to the CL42Y, it features a 5V/24V logic voltage selector and replaces the USB port with an RS232 debugging interface for enhanced compatibility and troubleshooting.
Utilizing next-generation 32-bit DSP control and power angle vector control technology, it achieves speeds exceeding 3000rpm. Compared to standard open-loop drivers, it significantly reduces high-speed torque decay, enhancing motor performance and torque utilization, which improves machining efficiency and accuracy. Its load-based current control effectively lowers motor heating, extending motor lifespan. The built-in alarm output facilitates easy monitoring and control by the host system, while the position error alarm ensures safe operation of the equipment.

Key Features

• Free RS232 debugging cable included
• 5V/24V logic voltage selector
• More stable 3.3V pulse signal reception
• A new generation of 32-bit DSP control technology, cost-effective, stable and excellent vibration performance

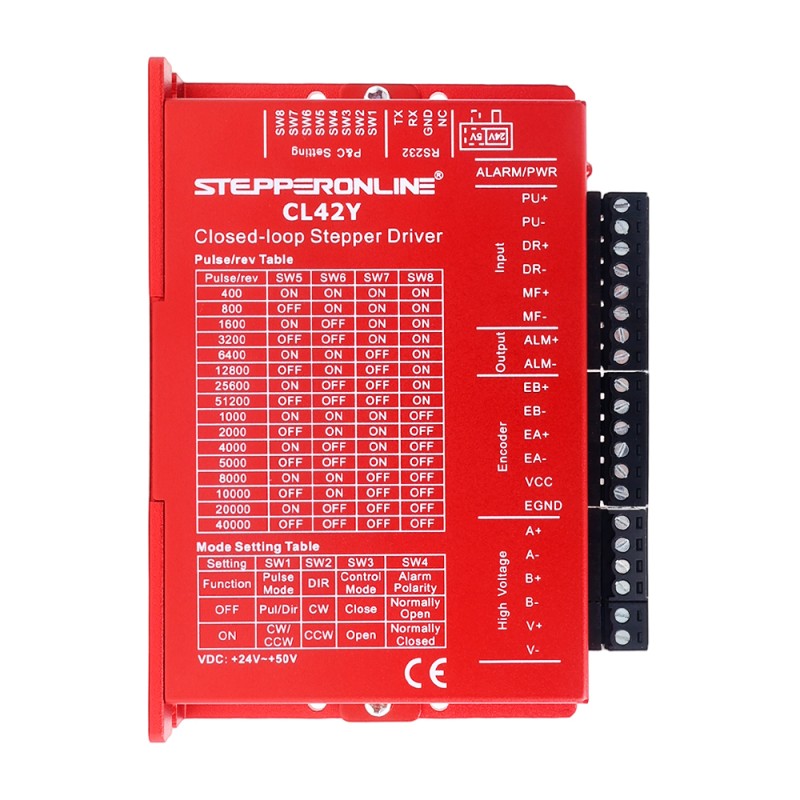

• Voltage input range: 24 - 50VDC, a total of 16 subdivisions
• The highest impulse response frequency is up to 200KHz
• The torque attenuation is small and the speed can reach 3000rpm
• Built-in in place and alarm output for easy detection and control
• Intelligently regulates current, reduces vibration, noise and heat, and increases efficiency by 35%
• With single and double pulse selection function, the factory default is: pulse + direction control
• Excellent high-speed performance and rigidity, the perfect combination of servo and stepping advantages

Electrical Specifications

• Continuous Output Current: 0 - 2.2A(Typical 1.0A)
• Input Voltage: 24 - 50VDC
• Logic Input Current: 1.0 - 7.5mA
• Pulse Frequency: 200kHz
• Isolation Resistance: 10MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling
• Environment: Stay away from other heating equipment, avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust
• Temperature: 0℃ - 50℃
• Humidity: 40%RH - 90%RH(non-condensation)
• Vibration: 10 - 55Hz/0.15mm
• Storage Temperature: -20℃ - 70℃

Packing List

• 1 x CL42Y-V20 Driver
• 1 x CABLE-PC-2 (RS232 debugging cable)
