YS Series 4 Axis 9.00Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit V2.0 w/ Power Supply

0 reviews - Write a review

C$541.74

5 + C$525.92

10 + C$511.00

50 + C$496.91

100 + C$483.56

In Stock: 10000
Model: 4-CLYS90-V20
Gross Weight: 23.96kg
Certificated: ISO, CE

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

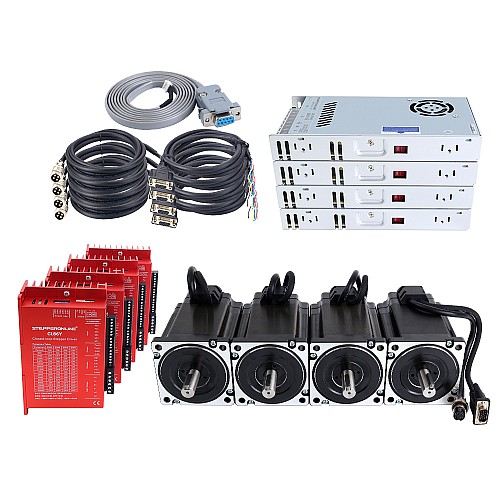

This CNC kit includes:

4 x 34HS46-6004D-E1000: Nema 34 Closed Loop Stepper Motor 9.00Nm(1274.50oz.in) Encoder 1000PPR(4000CPR)
4 x CL86Y-V20: Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
4 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply
4 x CE2-M2-18: 1.7m(67") Motor AWG18 and Encoder Extension Cable
1 x CABLE-PC-2: RS232 debugging cable

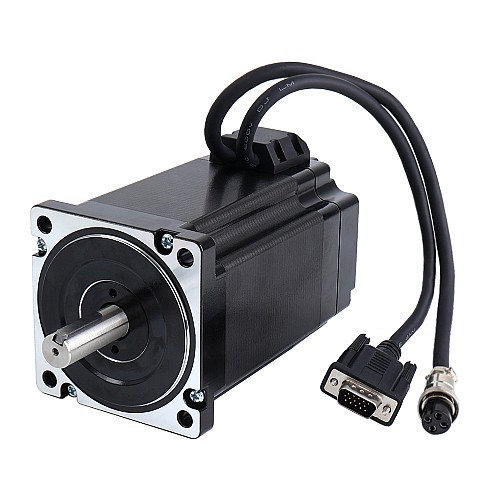

Motor Specification

Part Number: 34HS46-6004D-E1000
Number of phase: 2
Holding Torque: 9.00Nm(1274.50oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.4ohms
Inductance: 3.6mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 137mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A（0~6RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Power Supply Specification

Part Number: LE-350-60
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 60V
Output Current: 5.8A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

The CL86Y-V20 improves upon the CL86Y by adding a 5V/24V selector switch and including a free RS232 debugging cable.

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	900
Holding Torque(oz.in)	1274.5
Inductance(mH)	3.6
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	4
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.40
Rated Current(A)	6.0
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37

File	Size
LE-350-60.STEP	2.28MB	Download
LE-350-60.pdf	229.51KB	Download
CE2-M2-18.pdf	115.55KB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
CL86Y-V20.STEP	20.11MB	Download
CL86Y_V2.0_pulse_stepper_driver_manual_V1.0.pdf	858.67KB	Download
34HS46-6004D-E1000_Full_Datasheet.pdf	152.03KB	Download
34HS46-6004D-E1000_Torque_Curve.pdf	95.75KB	Download
34HS46-6004D-E1000.STEP	8.58MB	Download
