25W 220VAC 50Hz 270RPM 0.75Nm(106.21oz.in) Flange 80mm Spur Gearbox Single-phase AC Induction Motor
C$60.81
5 + C$58.80
10 + C$56.92
50 + C$55.16
100 + C$53.50
- In Stock: 10000
- Model: 4IK25GN-CT/4GN5K
- Gross Weight: 2.70kg
- Certificated: ISO, CE, RoHS

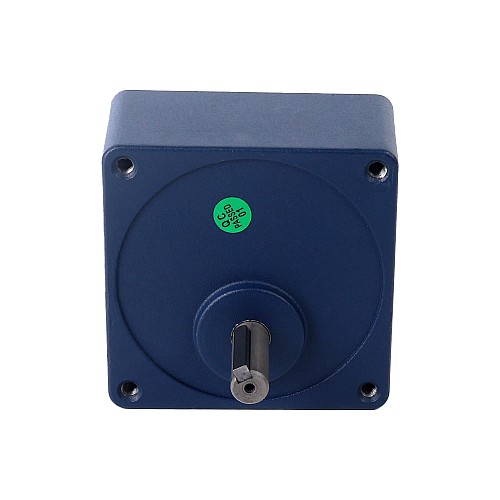

This 80x80mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 5, a torque of 0.75Nm(106.21oz.in) and a speed of 270rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.
Electrical Specifications
- P/N: 4IK25GN-CT/4GN5K
- Gearbox Type: Spur Gearbox
- Output Power: 25W
- Voltage: 1PH 220VAC
- Frequency: 50Hz
- Current: 0.24A
- Gear Ratio: 5:1
- Speed: 270rpm
- Torque: 0.75Nm(106.21oz.in)
- Capacitor: 1.8μF/450VAC
Physical Specifications
- Frame Size: 80x80mm
- Body Length: 129.5mm
- Shaft Type: Keyway
- Shaft Diameter: Φ10mm
- Shaft Length: 33mm
- Weight: 2.55kg
Wiring
Note:
1. The actual speed might vary with the load size, ranging from 2 to 20%.
2. The conversion of the single-phase motor's running direction should be performed when the motor is stopped.
1. The actual speed might vary with the load size, ranging from 2 to 20%.
2. The conversion of the single-phase motor's running direction should be performed when the motor is stopped.
