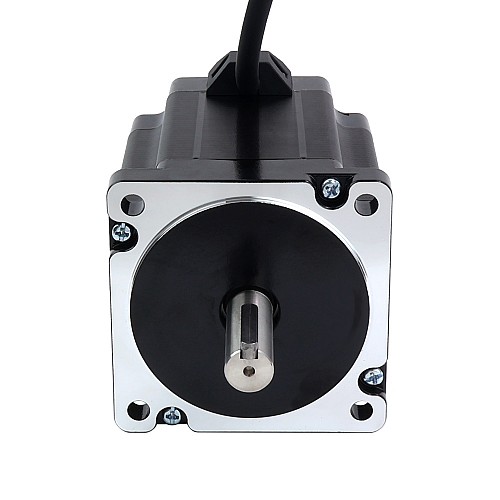

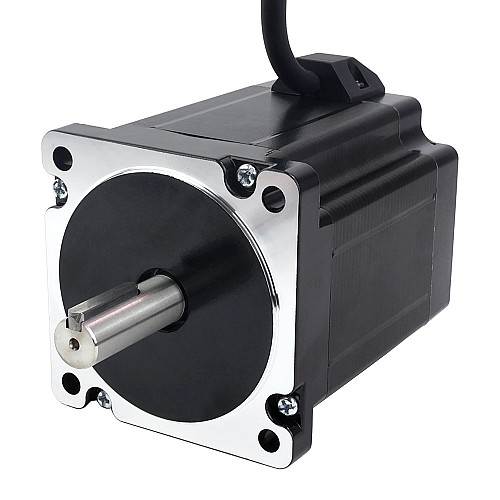

Keyway Dual Shaft Nema 34 Stepper Motor 7.07Nm(1001oz.in) 86x86x98mm 4 Wires

1 reviews - Write a review

C$50.90

5 + C$48.96

10 + C$47.17

50 + C$45.50

100 + C$43.94

In Stock: 10000
Model: 34HS38-4204D
Gross Weight: 3.40kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 440

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

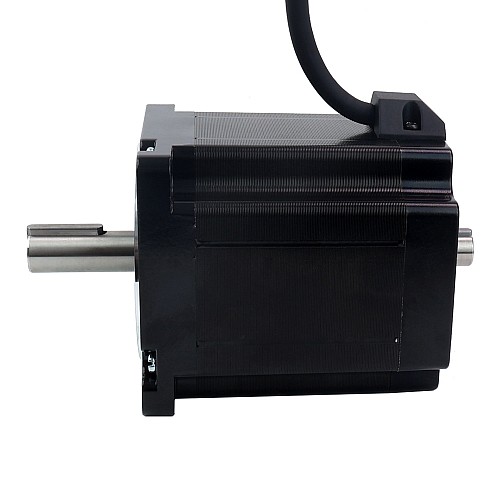

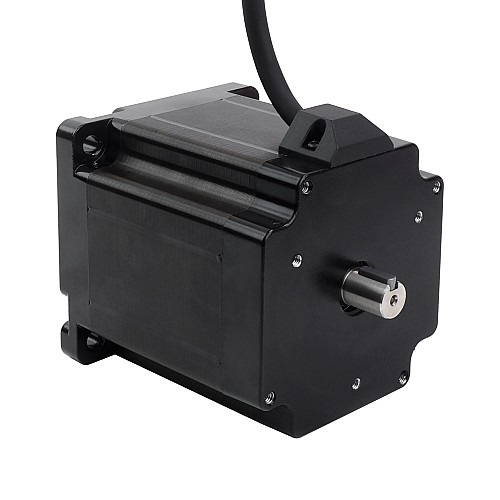

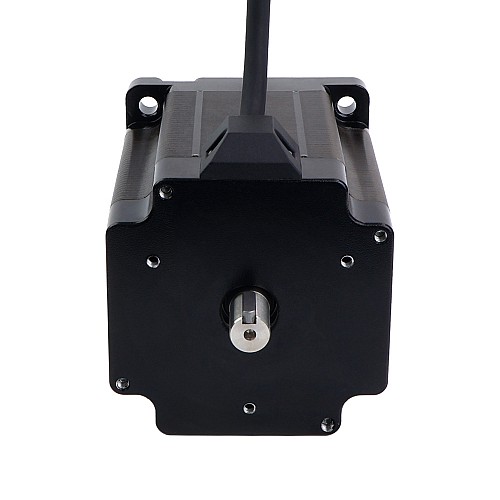

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 7.07Nm(1001oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

Manufacturer Part Number: 34HS38-4204D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 7.07Nm(1001oz.in)
Rated Current/phase: 4.24A
Phase Resistance: 0.8ohms
Inductance: 8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 98mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Rear Shaft Length: 15mm
Rear Shaft Diameter: 12mm
Number of Leads: 4
Lead Length: 500±50mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	707
Holding Torque(oz.in)	1001
Inductance(mH)	8
Phase Resistance(ohms)	0.8
Rated Current(A)	4.24
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	98
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Lead Length(mm)	550±50
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
