LA5 Series Belt Driven Max. Horizontal Payload 15kg Stroke 500mm for Closed Loop Stepper Motor

0 reviews - Write a review

C$253.39

5 + C$245.99

10 + C$239.02

50 + C$232.42

100 + C$226.19

In Stock: 10000
Model: LA5-23LL483-500
Gross Weight: 6.01kg

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

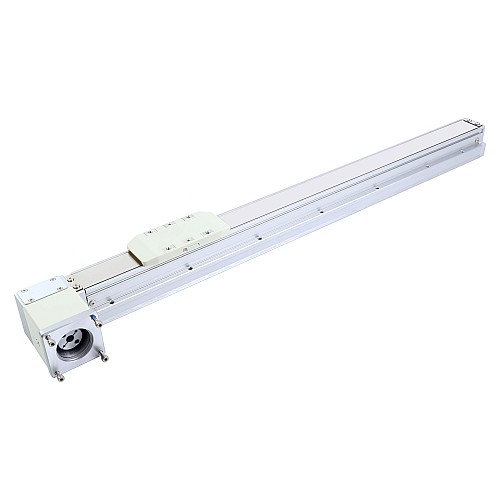

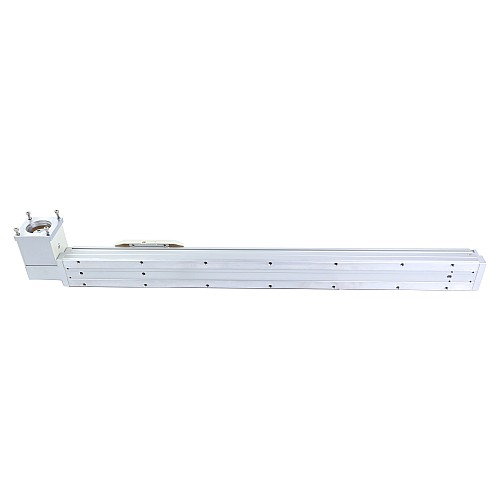

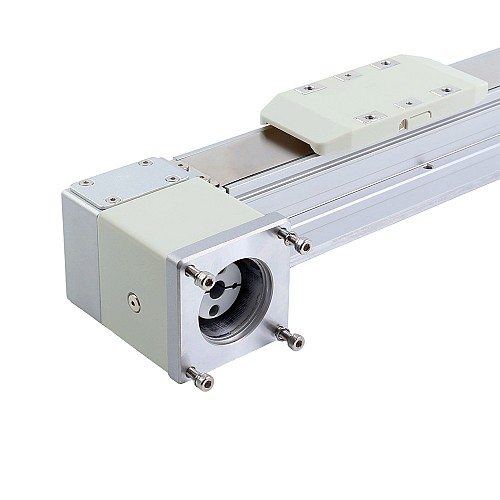

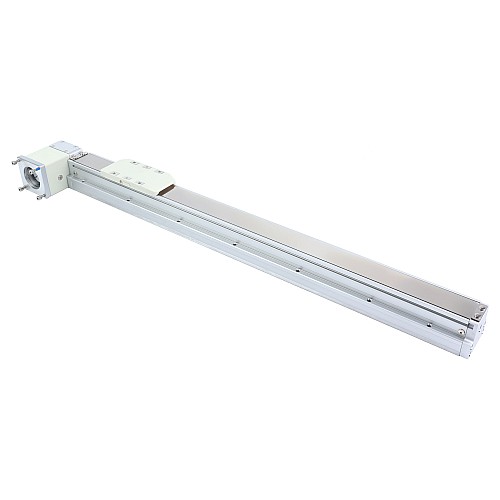

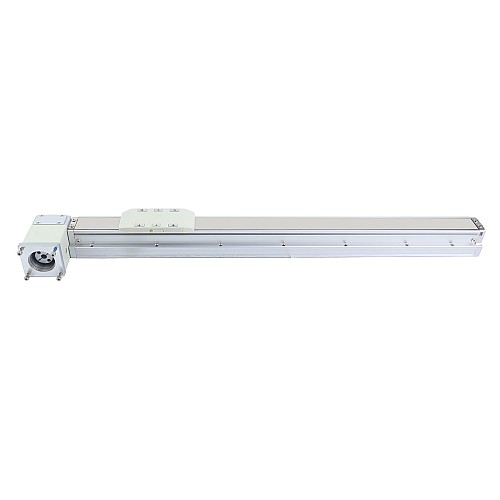

This LA5 series belt driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb), a stroke length of 500mm(1.64ft) and maximum speed of 400mm/s(1.31ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LA series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LA5-23LL483-500
Position Accuracy: ± 0.04mm
Lead: 48mm(0.16ft)
Maximum Speed: 400mm/s(1.31ft/s)
Maximum Horizontal Payload: 15kg(33.07lb)
Rated Thrust: 51N

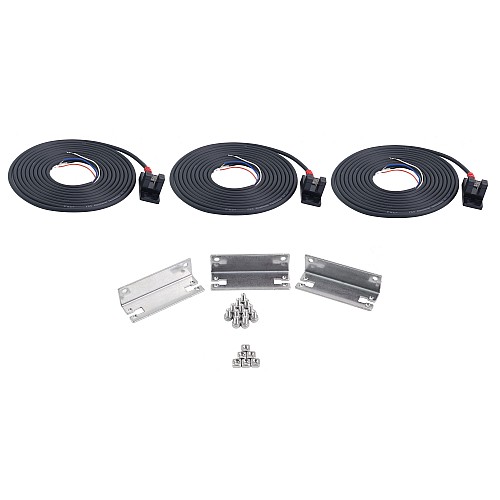

Sensor Type: NPN
Number of Sensors: 3
Belt Width: 10mm
Motor Frame: Nema 23 Closed Loop Stepper Motor
Stroke Length: 500mm(1.64ft)
Input Shaft Length: 21mm
Input Shaft Diameter: 8mm

Adapting Motors: Standard NEMA 23 closed-loop stepper motor with a shaft diameter of 8mm and a shaft length of 21mm.

Physical Specification
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	21
Inventory Method	Dedicated Inventory
Lead(mm/ft)	48/0.16
Linear Motor Type	Built-in belt
Max. Horizontal Payload(kg/lb)	15/33.07
Max. Speed(ft/s)	1.31
Max. Speed(mm/s)	400
Motor Mounting Flange	Nema 23 Closed Loop Stepper Motor
Motor Mounting Position	Left Fold
Rated Thrust(N)	51
Stroke Length(mm/ft)	500/1.64
Transmission Method	Belt Driven
