LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 30kg/8kg Stroke 510mm for Closed Loop Stepper Motor

0 reviews - Write a review

C$292.49

5 + C$283.95

10 + C$275.89

50 + C$268.28

100 + C$261.09

In Stock: 10000
Model: LK86-24DL103-510
Gross Weight: 11.50kg

Sold: 1

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

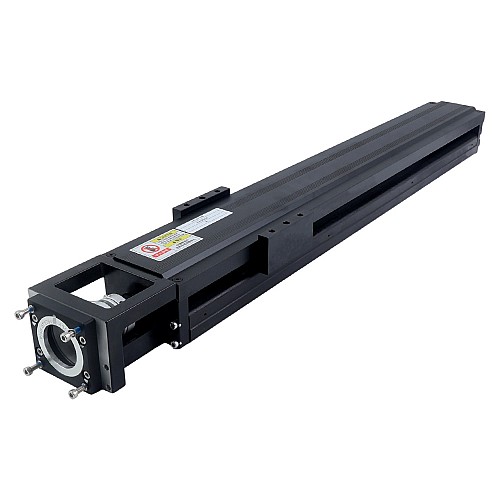

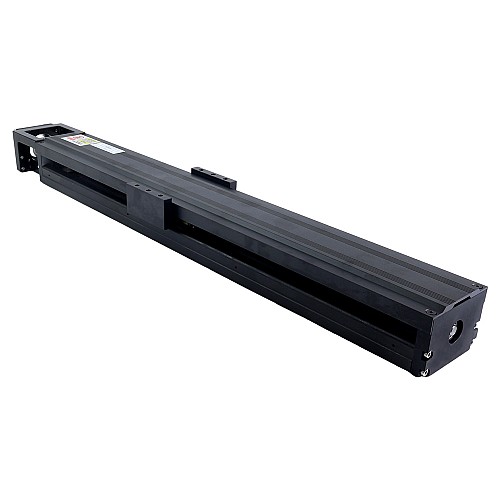

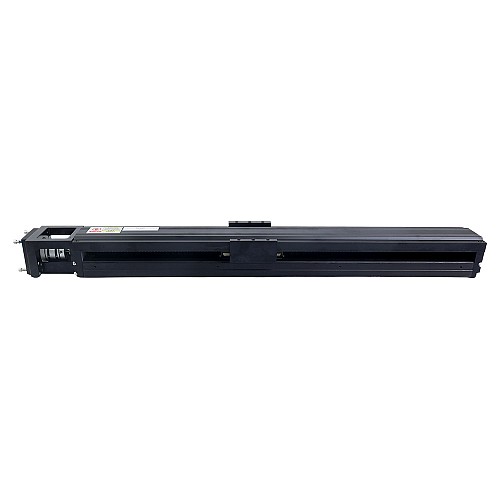

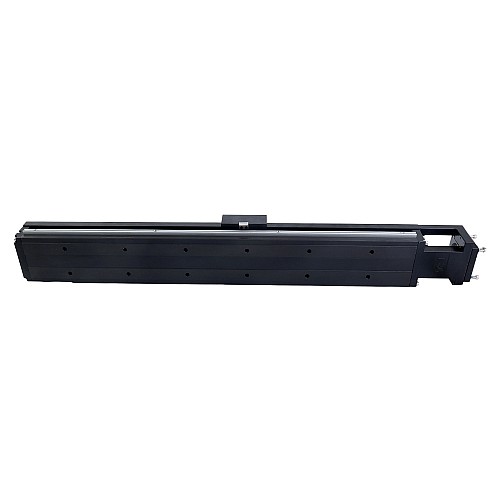

This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 8kg(17.64lb), a stroke length of 510mm(1.67ft) and maximum speed of 166mm/s(0.54ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LK86-24DL103-510
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 166mm/s(0.54ft/s)
Maximum Horizontal Payload: 30kg(66.14lb)
Maximum Vertical Payload: 8kg(17.64lb)
Rated Thrust: 341N

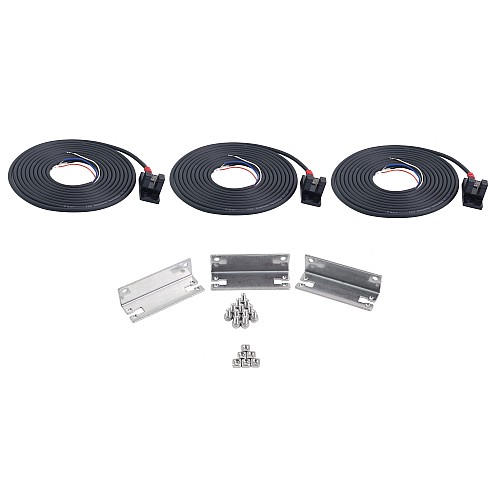

Sensor Type: NPN
Number of Sensors: 3
Ball Screw Grade: C7
Ball Screw Diameter: Φ15mm
Motor Frame: Nema 24 Closed Loop Stepper Motor
Stroke Length: 510mm(1.67ft)
Input Shaft Length: 30mm
Input Shaft Diameter: 8mm

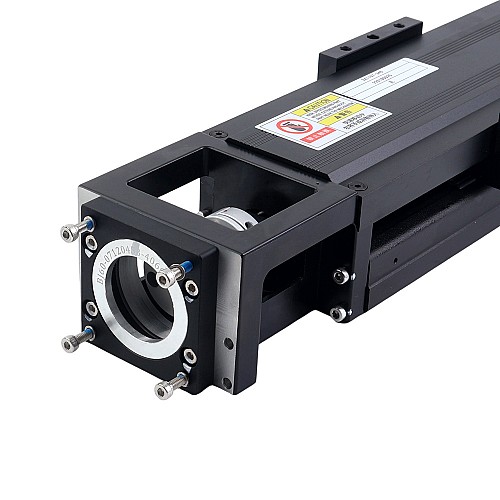

Adapting Motors: Standard NEMA 24 closed-loop stepper motor with a shaft diameter of 8mm, shaft length of 30mm, and a boss diameter of 36mm.

Physical Specification
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	30
Inventory Method	Dedicated Inventory
Lead(mm/ft)	10/0.033
Linear Motor Type	Steel Body
Max. Horizontal Payload(kg/lb)	30/66.14
Max. Speed(ft/s)	0.54
Max. Speed(mm/s)	166
Max. Vertical Payload(kg/lb)	8/17.64
Motor Mounting Flange	Nema 24 Closed Loop Stepper Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	341
Stroke Length(mm/ft)	510/1.67
Transmission Method	Ball Screw Driven
