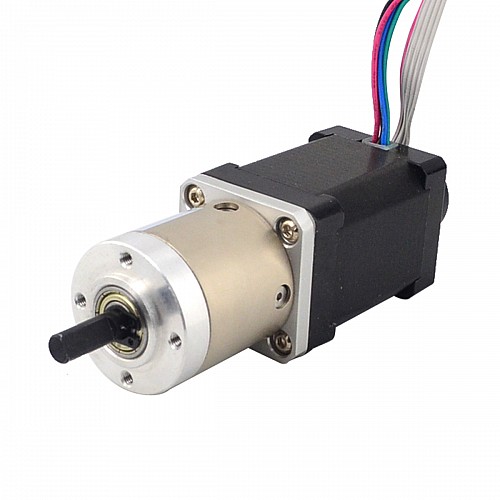

Nema 14 Closed-loop Geared Stepper L=51mm Gear Raio 14:1 Encoder 300CPR

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 14HS20-1504D-PG14-E22-300
Gross Weight: 0.51kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the United States, United Kingdom, European Union, Australia, and Russia are advised to select local warehouses first. Customers from other countries like Canada should choose the China warehouse.

Motor Specification

Manufacturer Part Number: 14HS20-1504D-PG14-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8 deg
Holding Torque without Gearbox: 0.4Nm(56.6oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 2.8ohms
Voltage: 4.2V
Inductance: 3.8mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 36.8mm
Gear Ratio: 13.73
Efficiency: 81%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-Cut length: 12mm
Backlash at No-load: <=1deg
Max.Permissible Torque: 4Nm(566.56.oz.in)
Moment Permissible Torque: 8Nm(1133.12oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Encoder Specification

Supply Voltage : 5VDC
Output current : ≤20mA
Resolution : 300cpr
Output Signal : 2 Channels
Shaft Diameter : Φ4mm
Output Frequency : ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 14HS11-1004D-ME1K-PG19.
