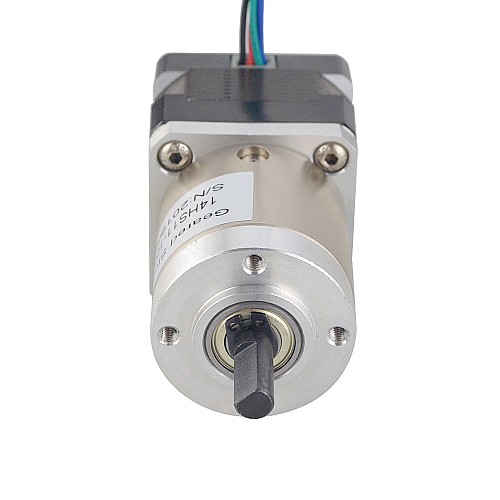

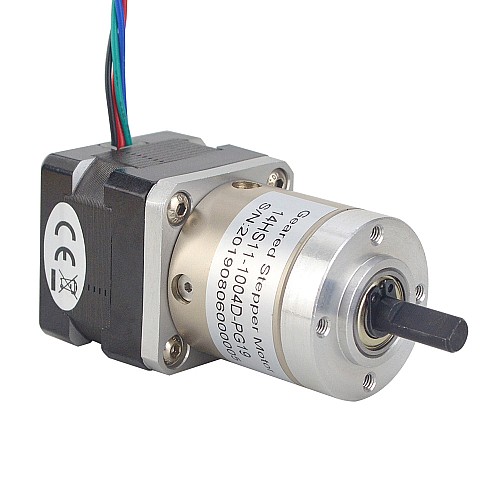

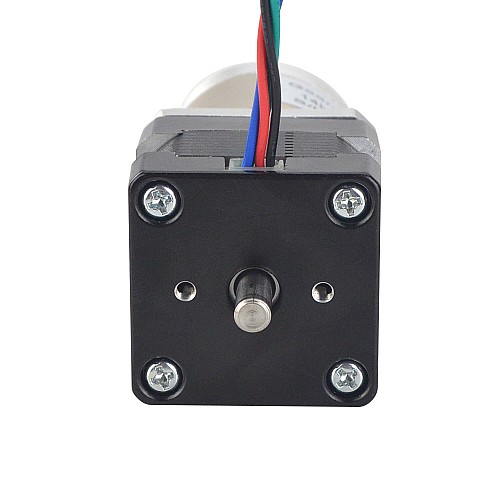

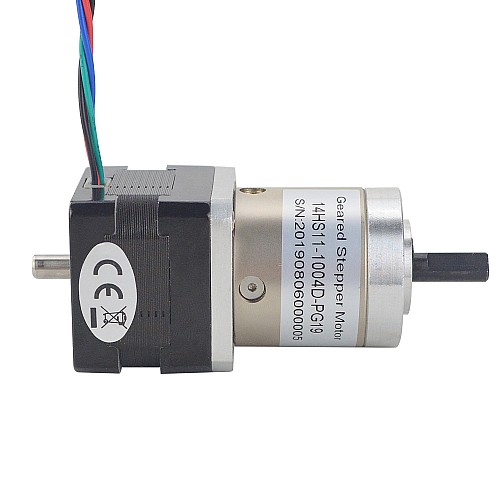

Nema 14 Stepper Motor Bipolar L=28mm w/ Gear Ratio 19:1 Planetary Gearbox
C$0.00
  • In Stock: 1
  • Model: 14HS11-1004D-PG19
  • Gross Weight: 0.33kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 4
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

  • Manufacturer Part Number: 14HS11-1004D-PG19
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque without Gearbox: 0.125 Ncm(17.7 oz.in)
  • Rated Current/phase: 1.0 A
  • Phase Resistance: 3.5 ohms
  • Inductance: 3.5 mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 19: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3 Nm(424.92 oz.in)
  • Moment Permissible Torque: 5 Nm(708.2 oz.in)
  • Shaft Maximum Axial Load: 50 N
  • Shaft Maximum Radial Load: 100 N

Physical Specifications

  • Gearbox Type: Planetary
  • Frame Size: 35 x 35 mm
  • Motor Length: 28 mm
  • Gearbox Length: 35.8 mm
  • Shaft Diameter: Φ6 mm
  • Shaft Length: 18 mm
  • D-cut Length: 12 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 86 g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 14HS13-0804D-PG19.
Physical Specification
IP Rating 40
File Size
14HS11-1004D-PG19_Full_Datasheet.pdf 183.5KB Download
